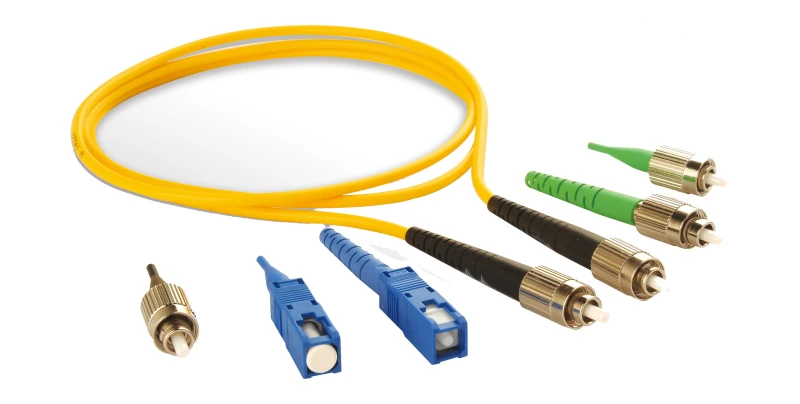

Patchcord GK-P Series
Description
The GKER Photonics GK-P Series Singlemode Patchcord offers exceptional performance for demanding applications. Designed to deliver outstanding environmental stability, this patchcord features low insertion loss and high return loss, ensuring reliable signal integrity. Its low polarization dependence makes it ideal for precision applications including fiber lasers and test instrumentation.
The patchcord is available in various wavelengths, including 488 nm, 532 nm, and 635 nm, providing flexibility for different optical systems. It is constructed with high-quality Nufern 460 HP Fiber for 488 nm or 532 nm applications and Nufern 630 HP Fiber for 635 nm applications. The connector types include FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, and LC/APC, allowing compatibility with a wide range of equipment.
The GK-P Series is designed to operate in temperatures ranging from -5°C to +70°C and can be stored in temperatures between -40°C and +85°C. With a maximum optical power handling of 60 mW, this patchcord is built to meet the rigorous demands of high-performance optical systems.
Patchcord GK-P Series
Specifications |
|
|---|---|
| Wavelength Range: | 488-635nm |
| Insertion Loss (max): | 1.5 dB |
| Return Loss: | 50 60 dB |
| Polarization Maintaining: | No |
| Connector Type: | UPC APC - |
| Typ. Insertion Loss: | 1.0 1.0 dB |
| Max. Insertion Loss: | 1.5 dB |
| Min. Return Loss: | 50 60 dB |
| Max. Optical Power (Continuous Wave): | 50 mW |
| Fiber Length Tolerance: | ± 10 or specified % |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
| Corresponding Fiber Type: | Nufern 460 HP Fiber for 488 nm or 532 nm Nufern 630 HP Fiber for 635 nm - |
Features
- Excellent Environmental Stability: Reliable performance in varying conditions
- High Return Loss: Minimizes signal reflection with a minimum return loss of 50 dB
- Low Insertion Loss: Ensures efficient signal transmission with typical values of 1.0 dB
- Low Polarization Dependence: Provides consistent performance across different polarization states
Applications
- Fiber Lasers: Ideal for high-precision fiber laser applications
- Test Instrumentation: Suitable for use in optical testing and measurement instruments
- High-Performance Optical Systems: Provides reliable connectivity for advanced optical systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
488 nm, 532 nm, 635 nm, and custom specifications.
The typical insertion loss is 1.0 dB.
The maximum insertion loss is 1.5 dB.
The minimum return loss is 50 dB.
The patchcord can handle up to 60 mW of continuous wave optical power.
The fiber length tolerance is ±10% or specified.
The operating temperature range is -5°C to +70°C.
The storage temperature range is -40°C to +85°C.
Connectors available include FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, LC/APC, None, or Specify.
The patchcord uses Nufern 460 HP Fiber for 488 nm or 532 nm, and Nufern 630 HP Fiber for 635 nm applications.
