Polarization Maintaining Patchcord
Description

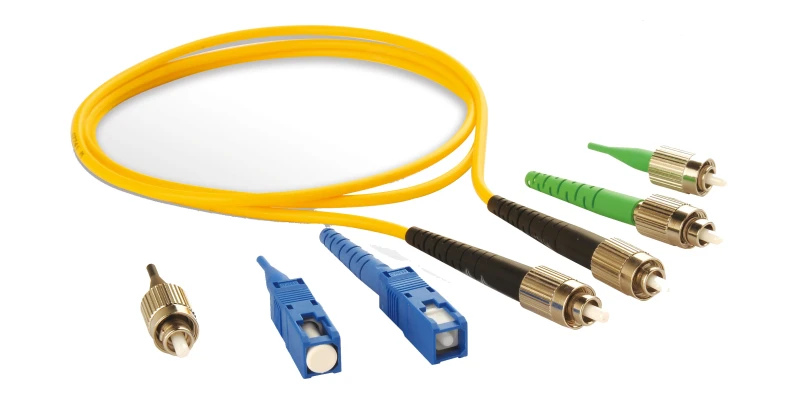

The GKER Photonics Polarization Maintaining Patchcord (GK-PMP Series) is engineered to deliver superior performance and reliability in critical optical applications. With excellent environmental stability, high return loss, and low insertion loss, this patchcord is ideal for use in polarization-maintaining (PM) amplifiers, fiber lasers, and test instrumentation. It ensures that the polarization state of light is preserved even under demanding conditions, making it an essential component in applications where signal integrity is paramount.
The patchcord is available with a variety of connectors, including FC/UPC, FC/APC, SC/UPC, SC/APC, and more, ensuring compatibility with different setups. The precision-aligned connector key guarantees that the slow axis is correctly oriented, providing consistent performance across a range of wavelengths. Designed to meet Telcordia standards, the GK-PMP Series is built to withstand harsh environmental conditions, with an operating temperature range from -5°C to +70°C and storage capability from -40°C to +85°C.
The patchcord is also customizable, with options for fiber length, connector type, and fiber jacket, allowing it to be tailored to specific application needs. This versatility makes it an excellent choice for both standard and specialized optical systems.
Polarization Maintaining Patchcord
Specifications |
|
|---|---|
| Wavelength Range: | 488-635nm |
| Insertion Loss (max): | 1.5 dB |
| Return Loss: | 50 60 dB |
| Polarization Maintaining: | Yes |
| Connector Type: | UPC APC - |
| Typ. Insertion Loss: | 1.0 1.0 dB |
| Max. Insertion Loss: | 1.5 dB |
| Min. Return Loss: | 50 60 dB |
| Min. Extinction Ratio: | 20 dB |
| Max. Optical Power (Continuous Wave): | 50 mW |
| Fiber Length Tolerance: | ± 10 or specified % |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
| Corresponding Fiber Type: | PM 460 HP Fiber for 488 nm or 532 nm PM 630 HP Fiber for 635 nm - |
Features
- High Return Loss: Minimizes back reflection with a return loss of up to 60 dB, ensuring signal integrity
- Low Insertion Loss: Ensures efficient signal transmission with a typical insertion loss of just 1.0 dB
- Excellent Environmental Stability: Designed to maintain performance across a wide temperature range from -5°C to +70°C
- Customizable Configuration: Available with various connector types, fiber jackets, and lengths to suit specific needs
- Polarization Maintaining Design: Maintains signal polarization with a minimum extinction ratio of 20 dB
Applications
- PM Amplifiers: Ensures stable polarization for enhanced amplifier performance
- Fiber Lasers: Ideal for maintaining polarization in high-power laser applications
- Test Instrumentation: Provides precise signal integrity in measurement and testing environments
