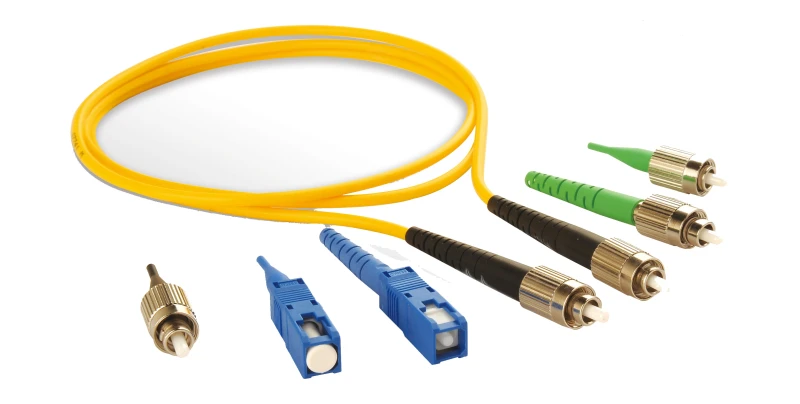

Polarization Maintaining Patchcord 980-1060-1310-1480-1550nm
Description
The GK-PMP Series Polarization Maintaining (PM) Patchcords by GKER Photonics Co., Ltd. offer superior performance for applications requiring stable polarization and minimal signal loss. Designed with advanced technology, these patchcords feature excellent environmental stability, high return loss, and low insertion loss, making them ideal for PM amplifiers, fiber lasers, and test instrumentation. Available in a variety of wavelengths, connector types, and fiber jacket options, the GK-PMP Series provides versatility for a wide range of optical networks and systems.
With a robust construction that can handle high optical power and extreme environmental conditions, these patchcords ensure reliable and consistent performance across different applications. Whether used in telecommunications, medical devices, or scientific research, the GK-PMP Series is engineered to meet the rigorous demands of modern optical systems.
Polarization Maintaining Patchcord 980-1060-1310-1480-1550nm
Specifications |
|
|---|---|
| Wavelength Range: | 980-1550nm |
| Insertion Loss (max): | 0.5 dB |
| Return Loss: | 50 60 dB |
| Polarization Maintaining: | Yes |
| Connector Type: | UPC APC - |
| Wavelength¹: | 980, 1060, 1310, 1480, 1550 nm |
| Typ. Insertion Loss: | 0.3 0.4 dB |
| Max. Insertion Loss: | 0.5 dB |
| Min. Return Loss: | 50 60 dB |
| Min. Extinction Ratio: | 23 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Length Tolerance: | ± 10 or specified % |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- High Return Loss: Achieves up to 60 dB return loss, ensuring minimal signal reflection
- Low Insertion Loss: Maintains typical insertion loss as low as 0.3 dB, reducing signal attenuation
- Environmental Stability: Performs reliably across a wide temperature range from -5°C to +70°C
- High Extinction Ratio: Provides a minimum extinction ratio of 23 dB, maintaining polarization integrity
- Versatile Compatibility: Supports various wavelengths, including 980 nm, 1060 nm, 1310 nm, 1480 nm, and 1550 nm
Applications
- PM Amplifiers: Ideal for maintaining polarization in optical amplifiers
- Fiber Lasers: Ensures consistent polarization for fiber laser systems
- Test Instrumentation: Provides reliable performance in testing and measurement equipment
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The GK-PMP Series is available in multiple wavelengths, including 980 nm, 1060 nm, 1310 nm, 1480 nm, and 1550 nm. Custom wavelengths can also be specified.
The typical insertion loss is 0.3 dB for UPC connectors and 0.4 dB for APC connectors.
The minimum return loss is 50 dB for UPC connectors and 60 dB for APC connectors, ensuring minimal signal reflection.
The GK-PMP Series provides a minimum extinction ratio of 23 dB, ensuring excellent polarization maintenance.
The patchcord is designed to operate reliably within a temperature range of -5°C to +70°C.
The GK-PMP Series can handle up to 300 mW of continuous wave optical power.
es, the GK-PMP Series offers multiple fiber jacket options, including 250 µm Bare Fiber, 900 µm Loose Tube, 900 µm Tight Buffer, 2 mm Cable, and 3 mm Cable.
Available connector types include FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, and LC/APC.
The fiber length tolerance is ±10% or can be specified according to customer requirements.
Yes, customizations are available for various parameters, including wavelength, connector type, fiber jacket, fiber length, and fiber type.
