Fiber Optic TransFlex Probe (Silica Vis-NIR)
Description
Fiber Optic TransFlex Probe (Silica Vis-NIR)
Specifications |
|
|---|---|

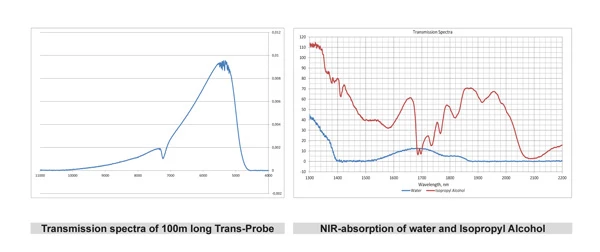

| Transmission: | 0.4-2.2um |
| Temperature Range: | 0-200C |
| Fiber Type: | Silica UV-NIR |

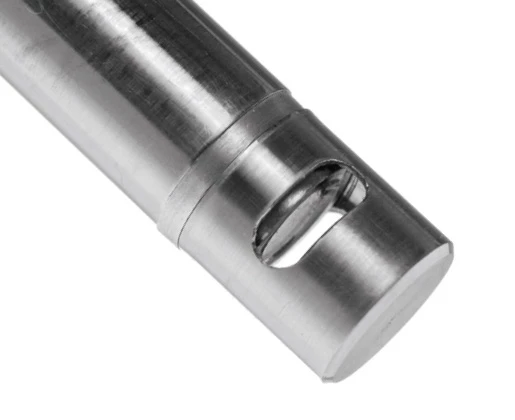

| Gap Dimension: | 2, 5 and 10 mm |
| Minimum Bending Radius: | 120 mm |

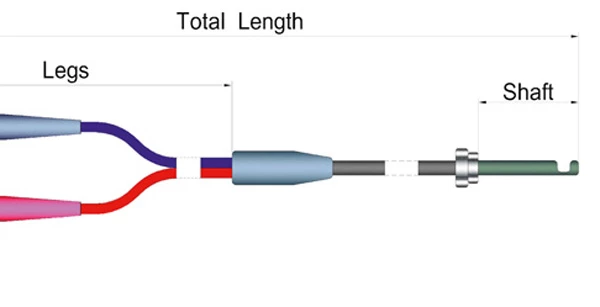

| Total Length: | 1.5 m |
| Shaft Length: | 230 mm |
| Shaft Diameter: | 12 mm |
Applications
- Reaction Monitoring in real time
- Process Analytical Technologies (PAT)
- Crystallization Development & Screening
- Analytical Characterization
- Biopharmaceutical Analysis
- Biofuel Development & Production
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The FlexiSpec® product line includes the latest generation of Transmission (single pass) & TransFlex (dual pass) fiber optic probes to be used with any spectrometer or photometer.
The applications of the FlexiSpec® Single & Dual Pass fiber optic probes include Reaction Monitoring in real time, Process Analytical Technologies (PAT), Crystallization Development & Screening, Analytical Characterization, Biopharmaceutical Analysis, and Biofuel Development & Production.
The transmission range of the Fiber Optic TransFlex Probe is 0.4 - 2.2 µm for Silica Vis-NIR.
The temperature range for the Fiber Optic TransFlex Probe is ≤ 200°C.
The input/output connectors for the Fiber Optic TransFlex Probe are Long SMA, FC/PC, and ST.
