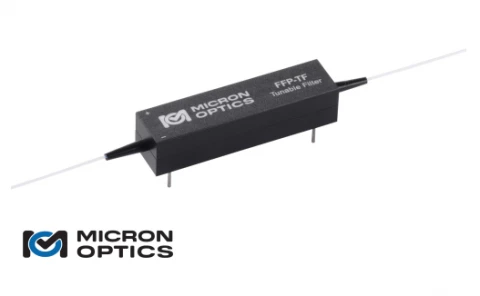

Fiber Fabry-Perot Tunable Filter - 10K Finesse - Wide Range
Description
Micron Optics’ patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
Fiber Fabry-Perot Tunable Filter - 10K Finesse - Wide Range
Specifications |
|
|---|---|
| Operating Wavelength Range: | 1,460-1,620nm |
| Free Spectral Range: | 27,500 GHz |
| Finesse: | 10,000 |
| Bandwidth: | 2.8 GHz |
| Insertion Loss: | 4 dB |
| Input Power: | 3 mW |
Features
- All-fiber platform
- High resolution and low loss design
- Super-cavity finesse
- Vibration and shock resistant
- Thermally stable
- Fast scanning permits fast, accurate measurements
Applications
- Optical Coherence Tomography
- Optical performance monitoring
- Spectrum analysis
- Tunable optical noise filtering
- Tunable channel drop for ultra DWDM
- Tunable sources
- Optical sensing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The features of the Fiber Fabry-Perot Tunable Filter include an all-fiber platform, high resolution and low loss design, super-cavity finesse, vibration and shock resistance, thermally stability, and fast scanning that permits fast, accurate measurements.
The applications of the Fiber Fabry-Perot Tunable Filter include optical coherence tomography, optical performance monitoring, spectrum analysis, tunable optical noise filtering, tunable channel drop for ultra DWDM, tunable sources, and optical sensing.
The environmental properties of the Fiber Fabry-Perot Tunable Filter include an operating temperature range of -20 to 80 C, a change in voltage of less than 12 V, and a change in insertion loss of less than 0.5 dB.
The electrical properties of the Fiber Fabry-Perot Tunable Filter include a tuning voltage/FSR of less than 12 V, a tuning rate/FSR of 42,500 Hz, and a capacitance of less than 3 uF.
The Fiber Fabry-Perot Tunable Filter is a patented FFP-TF, fiber Fabry-Perot (FFP) Tunable Filter that achieves high finesse and maintains low loss in a rugged package.
