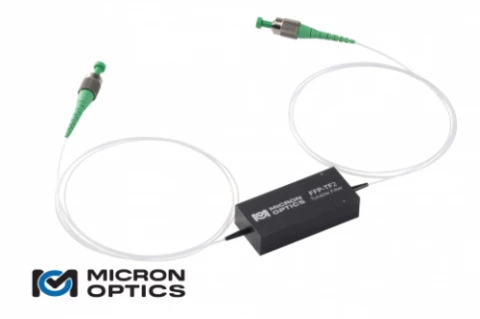

Fiber Fabry-Perot Tunable Filter 2 - 500 Finesse
Description
Micron Optics’ patented FFP-TF2, Fiber Fabry-Perot (FFP) Tunable Filter achieves high finesse and maintains low loss in a rugged package. The key to the simple and elegant design of the FFP tunable filter is the lensless all-fiber construction. There are no collimating optics or lenses, thus with the FFP tunable filter Micron Optics has eliminated the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
The FFP tunable filter follows the Airy function so closely that engineers can design it into the optoelectronic OEM systems knowing that it will provide results very close to the theoretical mathematical model. The FFP-TF2 design provides improved etalon alignment for stable long-term, high reliability, and Telcordia-qualified performance at a more attractive price. Several standard lowcost configurations are readily available for quick delivery. Custom high performance multi-band configurations are also available for special uses including sensing, biotech, and scientific applications.
Fiber Fabry-Perot Tunable Filter 2 - 500 Finesse
Specifications |
|
|---|---|
| Operating Wavelength Range: | 1,520-1,570nm |
| Free Spectral Range: | 15,000 GHz |
| Finesse: | 500 |
| Bandwidth: | 30 GHz |
| Insertion Loss: | 2.5 dB |
| Input Power: | 50 mW |
Features
- All-fiber platform
- High resolution and low loss design
- Super-cavity finesse
- Vibration and shock resistant
- Thermally stable
- Large dynamic range permits accurate measurements
Applications
- Optical Performance Monitoring
- Spectrum Analysis
- Tunable Optical Noise Filtering
- Tunable Channel Drop for Ultra DWDM
- Tunable Sources
- Optical Sensing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The standard specifications of the FFP-TF2 include operating wavelength range, free spectral range, finesse, bandwidth, insertion loss, polarization dependent loss, input power, tuning voltage/FSR, tuning rate/FSR, capacitance, dimension and weight, mounting holes, cable jacket, cable length, and operating temperature.
The key feature of the FFP Tunable Filter is its lensless all-fiber construction, which eliminates the pitfalls of other Fabry-Perot component technologies, including misalignment, environmental sensitivity, and extraneous modes.
The FFP Tunable Filter is suitable for optical performance monitoring, spectrum analysis, tunable optical noise filtering, tunable channel drop for ultra DWDM, tunable sources, and optical sensing.
The Fiber Fabry-Perot Tunable Filter is a patented all-fiber platform that achieves high finesse and maintains low loss in a rugged package.
The FFP Tunable Filter is customizable in terms of center wavelength, free spectral range, finesse, and bandwidth.
