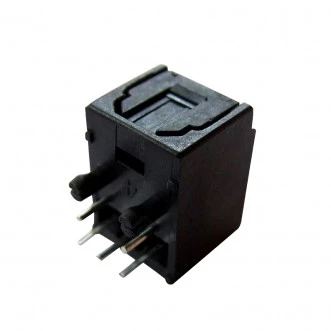

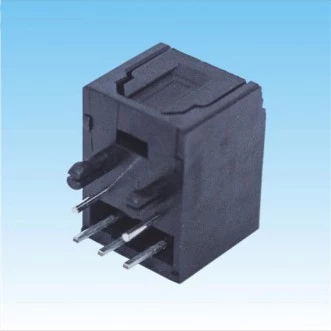

16Mbps optical audio Toslink spdif receiver module out DLR1160
Description
The DLR1160 optical audio toslink spdif light transmitting unit is a standard-package product with connector and opto-electric component packaged with LED and drive IC. The function of unit changes the electric signal into light signal and be transmitted by plastic fiber.
The unit is operated at single+2.7V~ +5.5V and the input signal is TTL compatible. The DLR1160 has a maximum operating speed of 16 Mbps. The light signal is coupled into plastic fiber by connector. The unit has high performance at low dissipation current, steady light output and efficient light coupling.
16Mbps optical audio Toslink spdif receiver module out DLR1160
Specifications |
|
|---|---|
| Peak Emission Wavelength: | 650 nm |
| Transmission Speed: | 16 Mbps |
| Working Voltage: | 2.7~5.5 Volts |
| Fiber Coupling Light Output: | -24~-14.5 dB |
| Typical Dissipation Current: | 6.5 mA |
Features
· High speed signal transmission
( 16 Mbps, NRZ signal )
· Input TTL compatible
· +3~+5V power source
Applications
· Audio equipment
· DVD player
· PC, Notebook
· Sound card
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Bones Electronics Co., Ltd -
On FindLight:
since 2017
Frequently Asked Questions
The DLR1160 has high speed signal transmission, input TTL compatibility, and low power consumption and current dissipation.
The DLR1160 is used for high-speed signal transmission in audio equipment, DVD players, PCs, notebooks, and sound cards.
The input signal of the DLR1160 is TTL compatible.
The DLR1160 has a maximum operating speed of 16 Mbps.
The DLR1160 is operated at a single +2.7V~ +5.5V power source.
