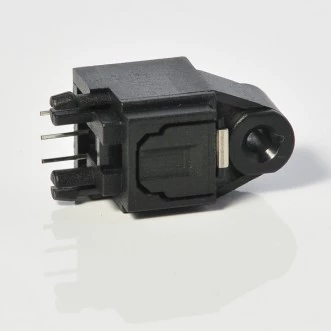

16Mbps POF Optical Toslink Transmitter Module-DLT1180 to replace Toshiba TORX transmitters
Description
The POF Optical Toslink Transmitter Module-DLT1180 to replace Toshiba TORX transmitters is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal.
The unit is operated at +5V and the input signal is TTL compatible. The DLT1180 has a maximum operating speed of 16 Mbps.
16Mbps POF Optical Toslink Transmitter Module-DLT1180 to replace Toshiba TORX transmitters
Specifications |
|
---|---|
Peak Emission Wavelength: | 650 nm |
Transmission Speed: | 16 Mbps |
Typical Dissipation Current: | 6.5 mA |
Working Voltage: | 2.7~5.5 Volts |
Fiber Coupling Light Output: | -24~14.5 dB |
Features
· High speed signal transmission
( 16 Mbps, NRZ signal )
· Input TTL compatible
· +3~+5V power source
Applications
· Audio equipment
· Digital optical data link
· MD
· Sound card
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
Bones Electronics Co., Ltd -
On FindLight:
since 2017
Frequently Asked Questions
The photoelectric characteristics of the DLT1180 include an operating voltage of 2.7-5.5V, peak emission wavelength of 640-670nm, and transmission speed of 16 Mbps NRZ signal.
The function of the POF Optical Toslink Transmitter Module-DLT1180 is to change the light signal into an electric signal.
The DLT1180 has a maximum operating speed of 16 Mbps.
The POF Optical Toslink Transmitter Module-DLT1180 is used to replace Toshiba TORX transmitters and is commonly used in audio equipment, digital optical data link, MD, and sound card applications.
The DLT1180 is operated at +5V.
