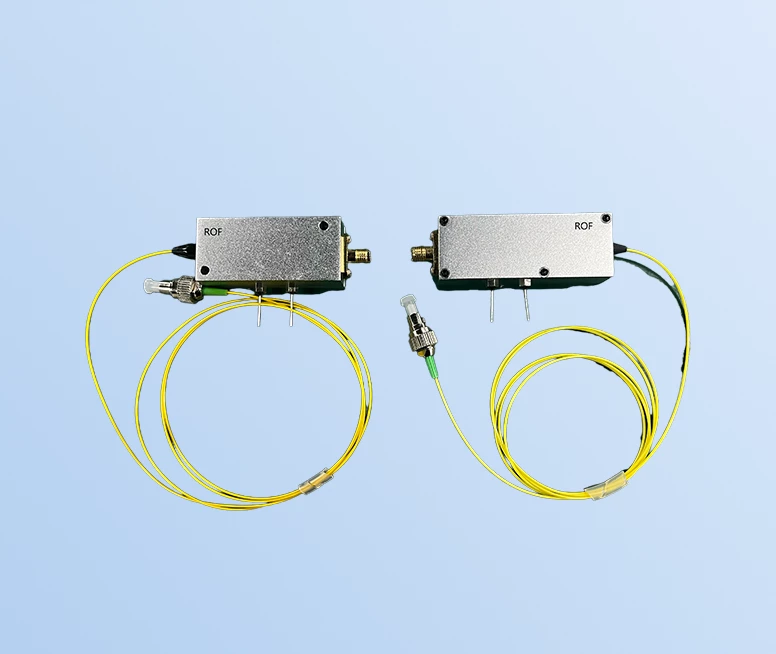

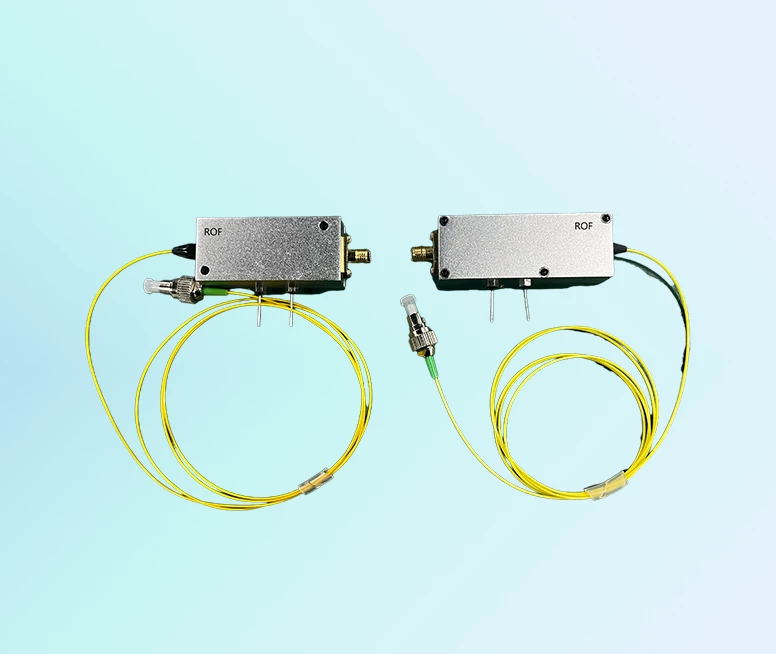

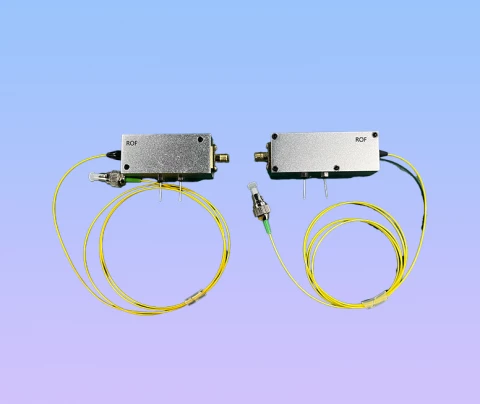

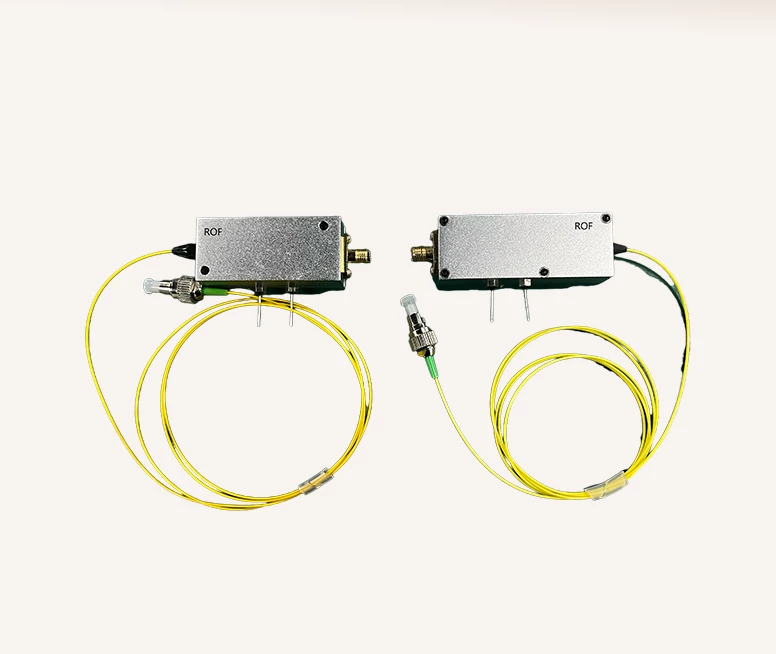

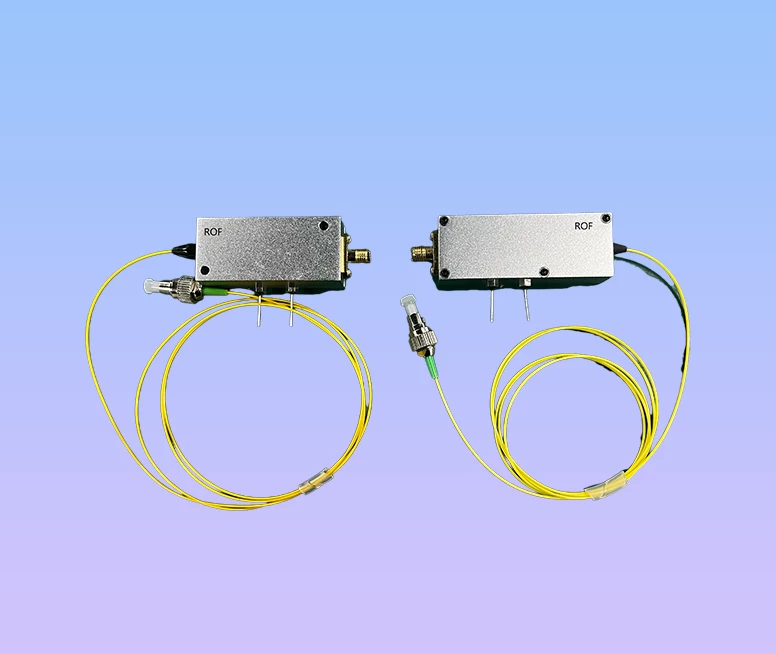

Conquer Optical Photonics Analog Wideband Transceiver Module Microwave Optical Fiber Transmission Modulator
Description
The Mini analog wideband transceiver module is a low-cost, high-performance analog wideband transceiver with a very wide dynamic range, designed specifically for optical fiber RF applications. A pair of transceivers will create two-way RF to optical and optical to RF conversion and transmission links that can provide high spurious free dynamic range (SFDR), operating at frequencies from 0.6GHz to 6GHz. The standard optical connector is FC/APC for low back reflection applications, and the RF interface is via a 50 ohm SMA connector. The receiver uses high performance InGaAs photodiode, the transmitter uses linear optical isolation FP/DFB laser, and the optical fiber uses 9/125 μm single-mode fiber with working wavelength of 1.3 or 1.5μm.
Conquer Optical Photonics Analog Wideband Transceiver Module Microwave Optical Fiber Transmission Modulator
Specifications |
|
|---|---|
| Peak Emission Wavelength: | 1310 nm |
| Transmission Speed: | - Mbps |
Features
- Bandwidth response 0.6GHz to 6GHz
- Tight cast metal case
- High SFDR
- Flat frequency response
- 1.3 and/or 1.5μm with isolated FP/DFB
Applications
- WiMAX / 4G LTE
- 5G communication
- Shipborne radio frequency distribution
- Satellite earth station
For pricing, technical or any other questions please contact the supplier
