1030nm 10w Bandpass Filter
Description

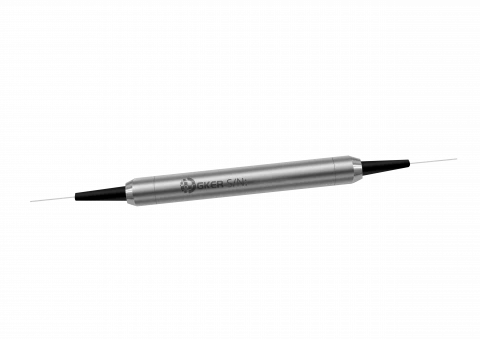

The GKER Photonics Bandpass Filter (GK-BP Series) is engineered for high-precision optical filtering applications, designed to selectively transmit signals within a specific wavelength range while effectively blocking unwanted noise. With a center wavelength of 1030 nm and a minimal filter pass band of 2 nm, this filter provides accurate wavelength selection and optimal performance for various optical systems. It boasts a maximum insertion loss of 1.0 dB over the pass band and ensures exceptional wavelength suppression with a maximum attenuation of 0.7 dB in the ranges of 1000-1025 nm and 1035-1100 nm.
The GK-BP Series filter is designed to handle continuous wave optical power up to 5 W and peak pulse power up to 10 kW, making it suitable for both continuous and pulsed applications. It features high return loss (50 dB) and low polarization dependent loss (0.1 dB), ensuring clear and stable signal transmission. The filter is constructed with HI 1060 Fiber, providing robust performance under varying conditions. It can withstand a maximum tensile load of 5 N and operates efficiently within a temperature range of -5°C to +70°C, with storage capabilities from -40°C to +85°C. This filter is available in customizable options, including connector types and fiber lengths, to meet specific application needs.
1030nm 10w Bandpass Filter
Specifications |
|
|---|---|
| Operating Wavelength: | 1030 nm |
| Operating Bandwidth: | 2-2 nm |
| Isolation (min): | - dB |
| Max Power Handling: | 0.3, 0.5, 1…10 W |
| Polarization Maintaining: | No |
| Center Wavelength: | 1030 nm |
| Min. Filter Pass Band @ - 0.5 DB: | 2 nm |
| Max. Insertion Loss Over Pass Band: | 1.0 dB |
| Wavelength Suppression (1000 - 1025 & 1035 - 1100 Nm): | 30 dB |
| Max. Insertion Loss Over Reflect Band For 3 Ports: | 0.7 dB |
| Min. Return Loss: | 50 dB |
| Max. Polarization Dependent Loss: | 0.1 dB |
| Max.Optical Power (Continuous Wave): | 0.3, 0.5, 1…10 W |
| Max. Peak Power For Ns Pluse: | 1, 2, 3…10 kW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | HI 1060 Fiber - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Center Wavelength: 1030 nm for precise optical filtering
- Filter Pass Band: 2 nm @ -0.5 dB to ensure high performance
- Insertion Loss: Maximum of 1.0 dB over pass band
- Wavelength Suppression: Maximum attenuation of 0.7 dB for specified wavelength ranges
- Return Loss: Minimum of 50 dB for superior signal integrity
- Polarization Dependent Loss: Maximum of 0.1 dB
- Optical Power Handling: Up to 5 W continuous wave, 10 kW peak pulse power
- Fiber Type: HI 1060 Fiber for high durability
- Temperature Range: Operates from -5°C to +70°C, storage from -40°C to +85°C
Applications
- High-Power Laser Systems: Ideal for use in high-power fiber laser setups
- Optical Communication: Perfect for wavelength division multiplexing (WDM) networks
- Noise Filtering: Effective in blocking unwanted noise in EDFAs and fiber laser systems
- Scientific Instruments: Suitable for precision optical instruments requiring narrow bandpass filtering
