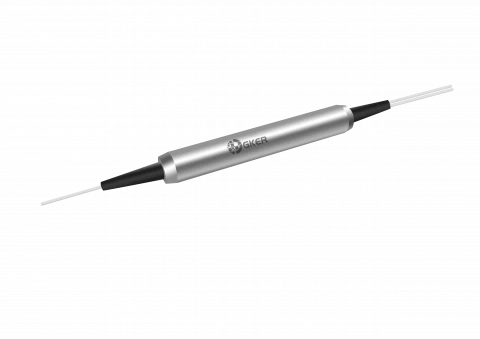

1310-1480-1550nm Polarization Maintaining Filter Wavelength Division Multiplexer-PMFWDM Series
Description
The PM FWDM series provides wavelength division multiplexing while maintaining signal
polarization. The components are based on environmentally stable thin-film filter technology
and are characterized with high extinction ratio, low insertion loss, and high return loss. They
are ideal for high speed WDM network systems.
1310-1480-1550nm Polarization Maintaining Filter Wavelength Division Multiplexer-PMFWDM Series
Specifications |
|
|---|---|
| Operating Wavelength: | 1270 - 1350 (1530 - 1600)1450 - 1490 (1530 - 1600) 1500 - 1520 (1530 - 1570) nm |
| Operating Bandwidth: | - nm |
| Isolation (min): | 25 25 25 dB |
| Max Power Handling: | 300m W |
| Polarization Maintaining: | Yes |
| Typ. Isolation: | 15 dB |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
| Max. Tensile Load: | 5 N |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Type: | PM Panda Fiber - |
| Thermal Stability: | 0.005 dB/℃ |
| Min. Return Loss: | 50 dB |
| Min. Isolation: | 12 dB |
| Wavelength Range: | 1270 - 1350 (1530 - 1600) 1450 - 1490 (1530 - 1600) 1500 - 1520 (1530 - 1570) nm |
| Reflection Band Max. Insertion Loss: | 0.5 dB |
| Typ. Insertion Loss: | 0.3 dB |
| Wavelength Range: | 1530 - 1600 (1270 - 1350) 1530 - 1570 (1500 - 1520) 1530 - 1600 (1450-1490） dB |
| Min. Extinction Ratio: | 20 dB |
| Min. Isolation: | 25 25 25 dB |
| Typ. Isolation: | 30 30 30 dB |
| Pass Band Max. Insertion Loss: | 0.6 0.6 0.7 dB |
| Typ. Insertion Loss: | 0.4 0.4 0.5 dB |
