Single Mode Faraday Rotator Mirror
Description
The FRM-1550-2.5X12-SMF28e-1-0-N is a high-quality fiber-optic model in our 1550nm single mode Faraday Rotor Mirror series that operates at a center wavelength of 1550±20 nm. This device features a 90-degree rotation angle and an insertion loss of passband of ≤0.6 dB, making it ideal for a range of applications that require reliable and efficient fiber-optic transmission.
With a maximum average power of ≤500 mW, this mode is designed to deliver consistent performance even under high-stress conditions. Additionally, its compact 2.5X12 mm package size makes it easy to install and integrate into existing systems.
It is important to note that the IL is 0.3 dB higher and the RL is 5 dB lower for each connector added, and this device does not come with any connectors. Its operating temperature ranges from -40℃ to +75℃, and its storage temperature ranges from -40℃ to +85℃.
If you're looking for a reliable and high-performance fiber-optic mode for your applications, the FRM-1550-2.5X12-SMF28e-1-0-N is an excellent choice. Contact us today for ordering information.
Single Mode Faraday Rotator Mirror
Specifications |
|
|---|---|
| Center Wavelength: | 1550 nm |
| Operating Bandwidth: | 40 nm |
| Insertion Loss (max): | 0.6 dB |
| Faraday Rotation Angle (single Pass): | 90 deg deg |
| Max Average Power: | 500 mW |
| Fiber Type: | SMF28e bare fiber |
| Fiber Length: | >=1 m |
| Operating Temperature: | -40 to +75 degC |
| Storage Temperature: | -40 to +85 degC |
Features
- Operates at a center wavelength of 1550±20 nm
- 90-degree rotation angle
- Insertion loss of passband of ≤0.6 dB
- Maximum average power of ≤500 mW

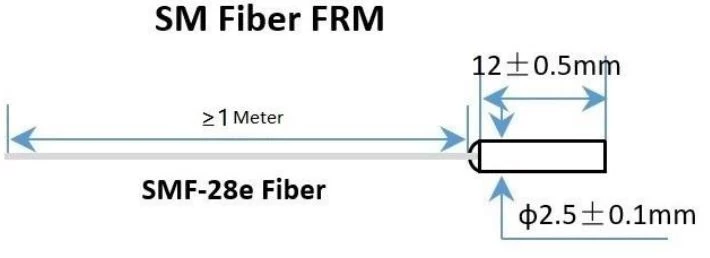

- Compact 2.5X12 mm package size
- SMF28e bare fiber type
- Fiber length of ≥1 m
- Operating temperature ranges from -40℃ to +75℃
- Storage temperature ranges from -40℃ to +85℃
- IL is 0.3 dB higher and RL is 5 dB lower for each connector added
- No connectors included
Applications
- Fiber-optic transmission systems
- Telecommunications
- Data centers
- CATV networks
- Medical equipment
- Industrial automation
- Military and aerospace applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The operating temperature range is -40℃ to +75℃
The center wavelength of the FRM-1550-2.5X12-SMF28e-1-0-N is 1550±20 nm.
The insertion loss of the passband for this device is ≤0.6 dB.
The maximum average power of the FRM-1550-2.5X12-SMF28e-1-0-N is ≤500 mW.
No, the FRM-1550-2.5X12-SMF28e-1-0-N does not come with any connectors.
The operating temperature range for the FRM-1550-2.5X12-SMF28e-1-0-N is -40℃ to +75℃.
