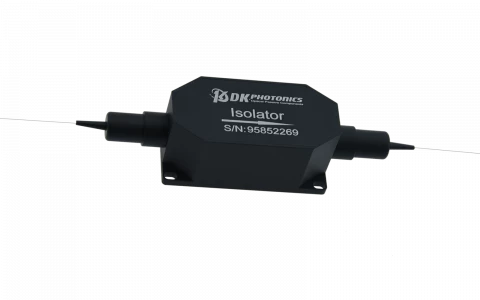

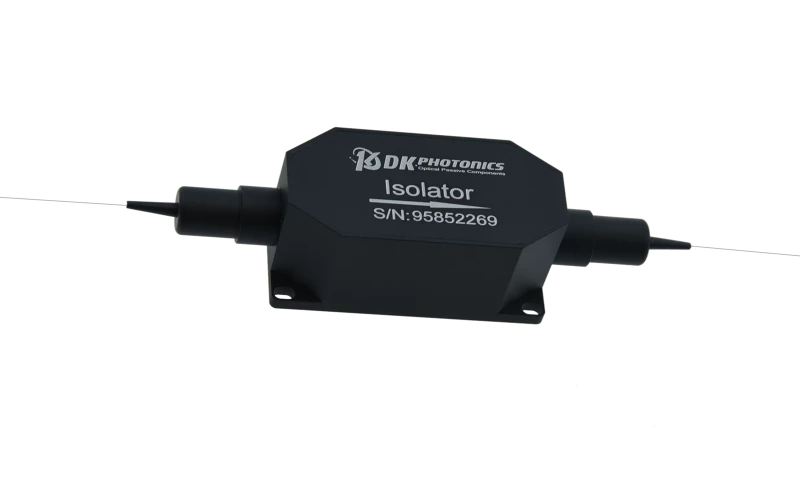

1080nm TGG Based Optical Isolator
Description
The 1080nm TGG-Based High Power Optical Isolator from DK Photonics is an advanced fiber isolator engineered for high performance in demanding optical systems. Utilizing a Terbium Gallium Garnet (TGG) crystal, this isolator delivers exceptional isolation (up to 35 dB) and low insertion loss, ensuring superior suppression of back reflections and back scattering in laser and amplifier setups.
Designed for polarization-independent operation, this fiber-in to fiber-out isolator is ideal for systems requiring high optical power handling—ranging from 0.5W up to 20W continuous wave and up to 10kW in nanosecond pulsed mode. It supports multiple fiber types including HI1060-XP and 10/125 SC, and comes in customizable package configurations.
The TGG Based 1080nm Optical Isolator is a crucial component renowned for its low insertion loss, high isolation, and outstanding environmental stability.
With its compact 58x28x26 mm housing, high reliability, and excellent thermal stability, the 1080nm isolator is a top choice for manufacturers and researchers working with fiber lasers, fiber amplifiers, and precision optical instrumentation.
This isolator effectively suppresses back reflection and scattering, making it an ideal choice for lasers, transmitters, and various fiber optic communication equipment. With exceptional reliability and cost-effectiveness, this isolator ensures seamless operation in diverse optical setups.
If you require custom specifications, DK Photonics offers full customization options, including fiber pigtails, connector types, and alternative wavelength support.
1080nm TGG Based Optical Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 20 W |
| Min Isolation: | 23 dB |
| Operating Wavelength Range: | ±10 nm |
| Typ. Peak Isolation: | 35 dB |
| Typ. Insertion Loss: | 0.8 dB |
| Max. Insertion Loss (at 23℃): | 1.2 dB |
| Max. PDL(for SM Fiber): | 0.15 dB |
| Min. Return Loss: | 45 dB |
| Max. Peak Power For Ns Pulse: | 1-5-10 kW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | 1060-XP, 10/125 SC, or other |
| Operating Temperature: | 0 to +70 °C |
| Storage Temperature: | -40 to +85 °C |
| Dimensions: | 58x28x26 mm |
Features
- High isolation
- Low insertion loss
- Cost-effective solution
- Excellent environmental stability and reliability
- High isolation up to 35 dB with low insertion loss (≤1.2 dB)
- Wide power handling range: 0.5W to 20W CW and up to 10kW pulsed
- Polarization-independent operation
- TGG-based design for enhanced thermal stability
- Supports HI1060-XP, 10/125 SC, and other custom fiber types
- Available with bare fiber or 900μm loose tube pigtails
- Compact and robust package for easy integration
- Customizable wavelength and connector configurations
Applications
- Fiber optic amplifiers
- Fiber optic lasers
- Test and measurement instruments
- Fiber optic communication equipment
- High-power fiber laser systems
- Optical amplifiers and booster modules
- Optical test and measurement setups
- Back-reflection suppression in fiber communications
- OEM integration in laser instrumentation
- Research and laboratory-grade optical setups
- Replacement for standard fiber circulators in unidirectional optical systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The High Power Polarization Independent Isolator is ideal for fiber laser and instrumentation applications. It prevents back reflections and back scattering in high-power fiber optic systems, ensuring unidirectional light propagation.
The key features of the High Power Polarization Independent Isolator include high isolation, low insertion loss, excellent environmental stability, and reliability.
The High Power Polarization Independent Isolator is suitable for fiber laser, free space communications, and research applications.
Customization options for the High Power Polarization Independent Isolator include different wavelengths, handling power of operation, and custom fiber pigtails.
The performance specifications for the High Power Polarization Independent Isolator include a maximum power handling of 50W, low insertion loss of 0.3dB, and high isolation.
It supports continuous power handling up to 20W, depending on the selected configuration.
It operates from 0°C to +70°C and can be stored between -40°C and +85°C, offering excellent thermal reliability.
