1064 nm Polarization Insensitive Isolator
Description

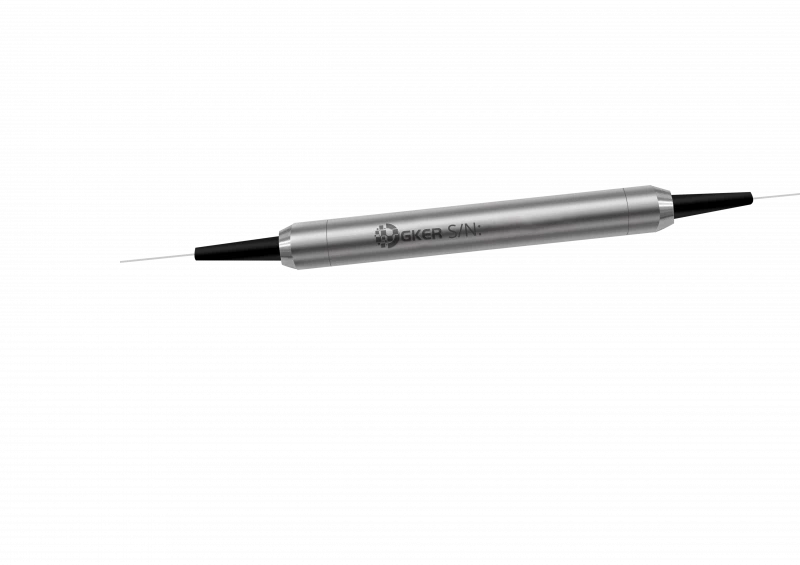

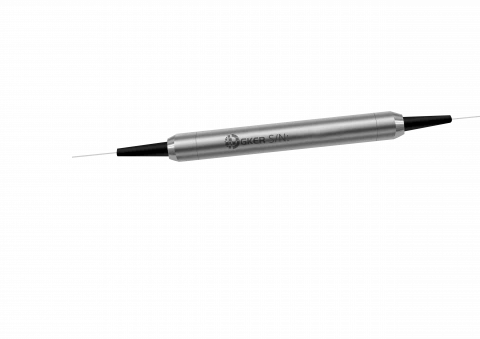

The GKER Photonics 1064 nm Polarization Insensitive Isolator (GK-PSSI & GK-PDSI Series) is designed to block unwanted back reflections and feedback in high-power laser systems while maintaining reliable performance across all polarization states. With its advanced optical design and compact packaging, the isolator provides high isolation (up to 55 dB), low insertion loss, and high return loss, ensuring optimal signal integrity.
The device supports both continuous wave (CW) and pulsed laser sources and can handle peak powers up to 10 kW for nanosecond pulses and continuous wave powers up to 300 mW. This makes it an ideal choice for high-performance applications such as fiber lasers, Raman amplifiers, and advanced photonic systems.
Built with HI 1060 fiber and robust environmental stability, the isolator operates reliably across a wide temperature range. Available in single and dual stage variants with multiple grades and customizable connector and fiber options, this isolator offers flexibility and precision performance for demanding optical networks.
1064 nm Polarization Insensitive Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 28 dB |
| Center Wavelength (λc): | 1064 nm |
| Min. Isolation @23°C, ≤30 MW: | |
| Max. Average Optical Power: | 300 mW |
| Max. Peak Power For Ns Pulse: | 10 kW |
| Typical Peak Isolation: | 40 dB |
| Typical Insertion Loss @23°C: | 1.5 dB |
| Max. Insertion Loss (-5°C To +50°C): | 2.0 dB |
| Return Loss (Input/Output): | 55 / 50 dB |
| Polarization Dependent Loss (PDL): | ≤0.15 dB |
| Max. Peak Power For Ns Pulse: | 10-40 kW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | HI 1060 |
| Storage Temperature: | -40 to +85 °C |
| Operating Temperature: | -5 to +50 °C |
Features
- High Isolation: Up to 55 dB for dual-stage design to suppress back-reflections
- Low Insertion Loss: Ensures minimal signal attenuation (as low as 1.5 dB)
- High Return Loss: Offers ≥55 dB input and ≥50 dB output return loss
- Polarization Independent: Maintains performance across all polarization states
- High Power Handling: Supports up to 300 mW average and 10 kW peak power
- Compact & Durable: Robust steel tube design ensures environmental reliability
Applications
- Fiber Lasers: Prevents back-reflections that may destabilize the laser source
- Raman Amplifiers: Enhances system performance with low PDL and high isolation
- Optical Transmitters: Protects transmitters in complex fiber networks
- Test and Measurement Systems: Delivers stable results under variable polarization
- High-Power Photonic Devices: Suitable for nanosecond pulse and CW laser sources
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The center wavelength of the isolator is 1064 nm.
The isolator is typically used in fiber lasers, Raman amplifiers, and transmitters.
The isolator can handle a maximum peak power of 10 kW for nanosecond pulses.
The operating temperature range is -5 ℃ to +50 ℃, and the storage temperature range is -40 ℃ to +85 ℃.
Yes, the isolator supports OEM customization and various configurations for connectors, fiber jackets, fiber lengths, and power types.
