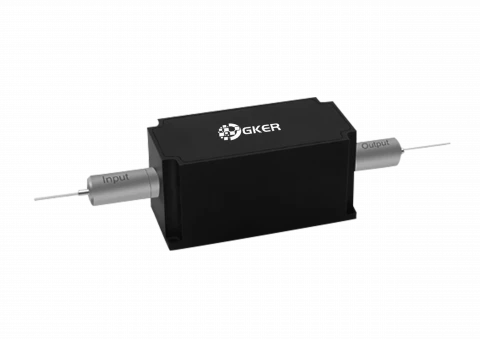

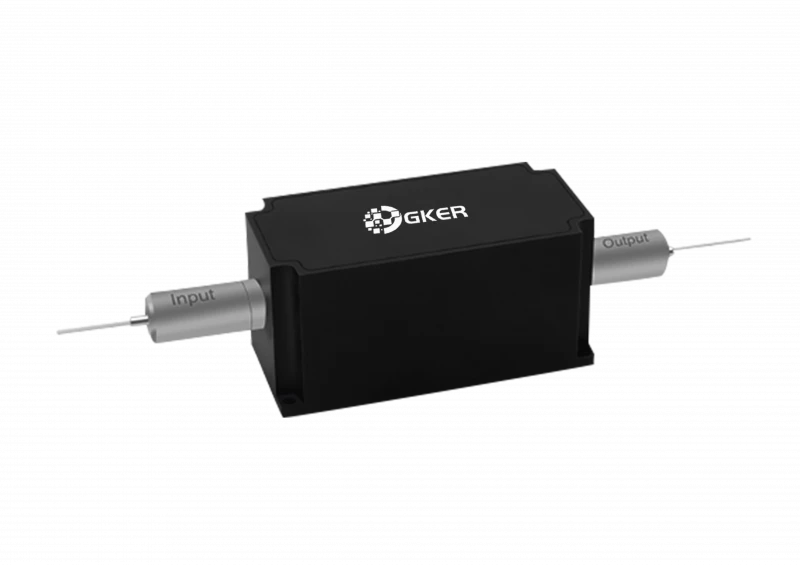

1064 nm Polarization Maintaining Isolator 10-20W (HI Series)
Description
The 1064 nm Polarization Maintaining Isolator is a high-performance optical component designed to meet the rigorous demands of modern fiber laser systems, amplifiers, and test instruments. Engineered with precision, this isolator ensures low insertion loss, high isolation, high return loss, and a high extinction ratio, making it an essential tool for maintaining signal integrity and stability in various optical applications.
This isolator is built with advanced micro optics technology, offering excellent environmental stability and reliability. Its design minimizes signal attenuation and effectively suppresses unwanted reflections and crosstalk, which is crucial for maintaining the quality and efficiency of optical systems. The 1064 nm Polarization Maintaining Isolator is ideal for applications that require precise control over optical signals, such as high-power fiber lasers, optical amplifiers, and sophisticated test instrumentation.
With a compact and robust construction, this isolator integrates seamlessly into existing optical setups without adding unnecessary bulk. It is available in various package types, handling power capacities, connector configurations, fiber jackets, and working axes, allowing for customization to meet specific application requirements. The high extinction ratio of this isolator ensures optimal polarization control, while the high peak isolation protects sensitive optical components from damaging back reflections.
1064 nm Polarization Maintaining Isolator 10-20W (HI Series)
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 10， 20 W |
| Min Isolation: | 25 dB |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Typ. Peak Isolation: | 30 dB |
| Min. Isolation, λc, 23 ℃, All Polarization States: | 25 dB |
| Max. Average Optical Power: | 10 or 20 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
| Fiber Type: | HI 1060 Fiber |
Features
- High Peak Isolation: With a remarkable peak isolation of 30 dB, this isolator ensures the effective suppression of unwanted signal reflections and crosstalk, allowing for pristine signal transmission
- Low Insertion Loss: Engineered for minimal signal attenuation, the isolator boasts a typical insertion loss of just 0.8 dB at 23 ℃, preserving signal integrity and system efficiency
- High Extinction Ratio: Offering a minimum extinction ratio of 20 dB, this isolator provides precise polarization control, facilitating optimal signal transmission in diverse optical systems
- Excellent Environmental Stability: Built to withstand varying environmental conditions, the isolator maintains exceptional stability and reliability, even in harsh operating environments
- Compact Micro Optics Design: Featuring a space-saving and lightweight construction, the isolator seamlessly integrates into optical setups without adding bulk or complexity
- Customizable Options: Available in various package types, handling power capacities, connector configurations, fiber jackets, and working axes, the isolator can be tailored to suit specific application requirements with precision
Applications
- Fiber Laser Systems: The isolator enables precise control of polarization and signal isolation in high-power fiber laser systems operating at 1064 nm, ensuring optimal performance and stability
- Amplifiers: In optical amplification systems for telecommunications and data transmission, the isolator maintains signal integrity and stability, contributing to reliable system operation
- Test Instruments: Ideal for use in research laboratories and industrial testing facilities, the isolator facilitates accurate signal analysis and testing, enhancing the efficiency and effectiveness of experimental setups
