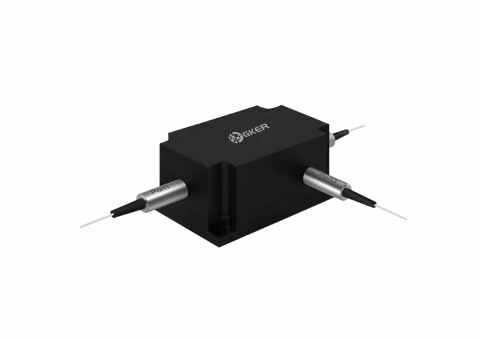

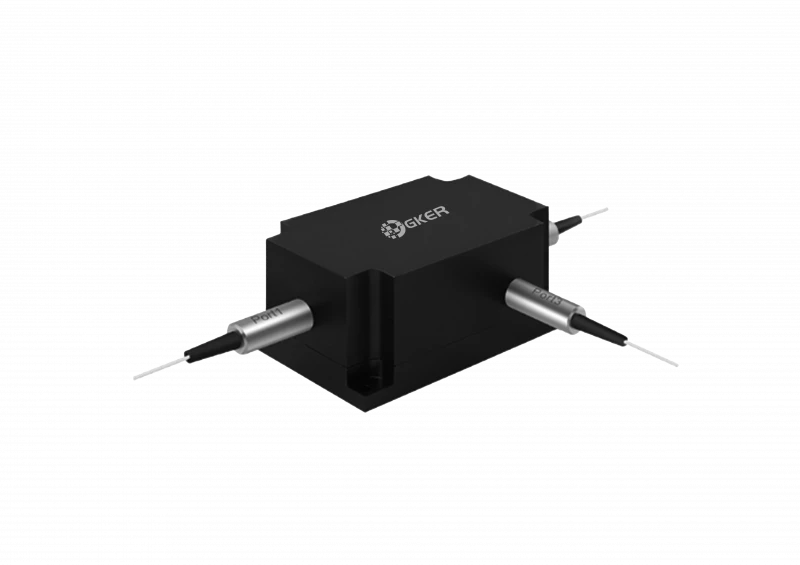

1064nm 10w High Power Polarization Maintaining Circulator
Description
The GKER Photonics High Power Polarization Maintaining Circulator (GK-HPMCIR Series) is a premium optical device meticulously engineered to handle high-power applications with unmatched precision. It is specifically designed for fiber laser systems and advanced instrumentation where maintaining the polarization state of light is crucial. This circulator features low insertion loss, ensuring minimal signal attenuation, and high isolation, which effectively separates input and output signals to prevent crosstalk and interference.
One of the standout features of the GK-HPMCIR Series is its high extinction ratio, which guarantees the preservation of the polarization state, making it an ideal choice for sensitive optical setups. Additionally, the circulator offers high return loss, minimizing back reflections and enhancing overall system stability. Built to withstand high optical power levels, this circulator is suitable for both continuous wave (CW) and pulsed laser applications, providing versatility across different operational scenarios.
The GK-HPMCIR Series is constructed with durability in mind, capable of operating within a broad temperature range, ensuring reliable performance even in challenging environmental conditions. Its robust design, coupled with superior optical characteristics, makes it an essential component for any high-power optical system that demands precision, reliability, and high-performance standards.
1064nm 10w High Power Polarization Maintaining Circulator
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 10 W |
| Min Isolation: | 22 dB |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Typ. Peak Isolation: | 25 dB |
| Min. Isolation, λc, 23 ℃: | 22 dB |
| Typ. Insertion Loss, 23 ℃: | 0.8 dB |
| Max. Insertion Loss, 23 ℃: | 1 dB |
| Min. Extinction Ratio: | 20 dB |
| Min. Crosstalk: | 45 dB |
| Min. Return Loss: | 45 dB |
| Max. Average Optical Power: | 10 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | PM 980 Fiber - |
| Operating Temperature: | + 10 to + 50 ℃ |
Features
- Low Insertion Loss: Ensures minimal signal degradation
- High Isolation: Provides superior signal separation and minimizes crosstalk
- High Power Handling: Suitable for both continuous wave and pulsed applications
- High Extinction Ratio: Maintains the polarization state of the signal with high accuracy
- High Return Loss: Reduces signal reflection, enhancing overall system performance
- Robust Construction: Designed for high reliability in challenging environments
- Wide Operating Temperature Range: Maintains performance stability across various conditions
Applications
- Fiber Lasers: Ideal for high-power laser systems requiring precise polarization control
- Instrumentation: Suitable for high-performance testing and measurement equipment
- Optical Communication: Enhances signal integrity in advanced communication networks
- Research and Development: Supports experimental setups needing high power and precise signal management
- Industrial Applications: Robust enough for use in manufacturing and processing environments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The GK-HPMCIR Series Circulator is primarily used in high-power fiber laser systems and advanced optical instrumentation, where maintaining the polarization state of light is critical.
The GK-HPMCIR Series features low insertion loss, high isolation, and a high extinction ratio, making it ideal for handling high optical power levels in both continuous wave (CW) and pulsed laser applications.
The circulator is designed with a high extinction ratio, which ensures that the polarization state of the light is maintained throughout the optical system, preventing any degradation or distortion.
The circulator is compatible with multiple fiber types, including PM 980 Panda Fiber, Nufern-FUD-3460 fiber, and Nufern-PLMA-GDF-20/130-M, offering flexibility for different applications.
The circulator can handle up to 10 W of average optical power and 10 kW for nanosecond pulses, making it suitable for high-power laser applications.
Yes, the circulator can be customized with various connector types, including FC/UPC, FC/APC, SC/UPC, SC/APC, or can be supplied without connectors, depending on the specific application requirements.
Yes, the working axis can be configured as either Fast Axis Blocked or Both Axes Working, depending on the application needs.
The circulator is available in handling power options of 3 W, 10 W, or can be specified for custom power requirements, offering versatility for different high-power applications.
