Description
Engineered with precision and designed to exacting standards, the High Power Dual Stage Polarization Maintaining Isolator (HPMDI Series) stands as a testament to innovation and reliability in the realm of fiber optic components. Engineered to meet the stringent demands of high-power laser systems, amplifiers, and instrumentation applications, this isolator represents a fusion of cutting-edge technology and robust construction.
With an optimized wavelength centered around 1064 nm, it ensures compatibility with laser systems operating within this range. Its superior extinction ratio of 20 dB guarantees effective polarization maintenance for precise signal transmission, while a remarkably low insertion loss of 0.8 dB minimizes signal attenuation, ensuring efficient power transfer.
The isolator offers exceptional isolation of 45 dB at 23 ℃, effectively suppressing back reflections and unwanted signal crosstalk, while providing a minimum return loss of 45 dB for system stability and optimal signal integrity. Built with high-quality materials and advanced manufacturing techniques, it ensures long-term reliability and durability, even in demanding environments.
With a wide power handling capability of up to 10 W optical power and 10 kW peak power, the HPMDI Series is suitable for a diverse range of applications. Whether deployed in amplifiers, fiber lasers, test instruments, or telecommunications systems, this isolator ensures stable signal amplification, transmission, and management, supporting critical functions across various industries.

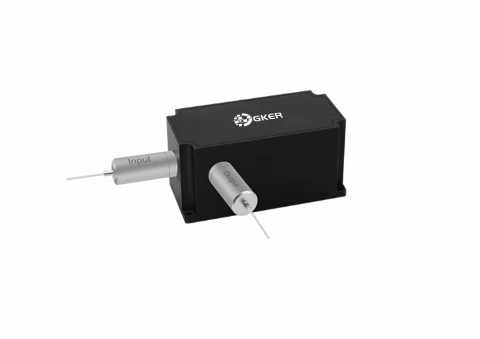

1064nm 10W High Power Dual Stage Polarization Maintaining Isolator (HPMDI Series)
Specifications
| Type Of The Device: | Isolator |
|---|---|
| Operating Wavelength: | 1064 nm |
| Max Power: | 10 W |
| Min Isolation: | 45 dB |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Min. Extinction Ratio: | 20 dB |
| Min. Isolation, 23 ℃, λc: | 45 dB |
| Max. Optical Power: | 10 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
Download Data Sheet
Features
- Precise Wavelength: Centered around 1064 nm for optimal compatibility with laser systems
- Extinction Ratio: Maintains a minimum extinction ratio of 20 dB, ensuring effective polarization maintenance
- Low Insertion Loss: Achieves a low insertion loss of 0.8 dB at 23 ℃, minimizing signal attenuation
- High Isolation: Offers high isolation of 45 dB at 23 ℃, effectively suppressing unwanted signal reflections
- Excellent Return Loss: Provides a minimum return loss of 45 dB, contributing to system stability and performance
- High Power Handling: Capable of handling maximum optical power of 10 W and peak power of 10 kW, suitable for high-power applications
- Robust Fiber Type: Utilizes PM 980 Fiber, known for its durability and reliability in optical systems
- Wide Operating Temperature Range: Operates reliably within a temperature range of +10 to +50 ℃, ensuring performance stability in varying environmental conditions
Applications
- Amplifiers: Ensures stable signal transmission and amplification in optical amplifiers, maintaining signal integrity
- Fiber Lasers: Facilitates efficient and stable operation of fiber lasers across various applications, including material processing, sensing, and telecommunications
- Test Instruments: Provides reliable signal isolation and management in test and measurement setups, contributing to accurate and consistent results
- Research and Development: Suitable for use in R&D environments for experiments requiring precise optical components and stable performance
- Telecommunications: Enables the development of robust and reliable telecommunications systems, ensuring smooth data transmission over fiber optic networks
- Industrial Applications: Supports industrial applications such as laser welding, cutting, and marking, where high-power optical components are essential for precision and efficiency
- Medical Devices: Facilitates the integration of stable and high-performance optical components into medical devices, such as laser therapy equipment and diagnostic instruments
- Defense and Aerospace: Meets the stringent requirements of defense and aerospace applications, ensuring reliable performance in harsh environments and critical missions
Frequently Asked Questions
What is the operating wavelength range of the HPMDI Series?
What is the extinction ratio of the isolator?
What is the insertion loss of the HPMDI Series at 23 ℃?
What level of isolation does the HPMDI Series provide at 23 ℃?
What is the minimum return loss of the HPMDI Series?
What is the maximum optical power and peak power handling capability of the HPMDI Series?
What fiber type is used in the HPMDI Series for polarization maintenance?
What is the operating temperature range of the HPMDI Series?
In what applications can the HPMDI Series be used?
What are the key benefits of using the HPMDI Series?
