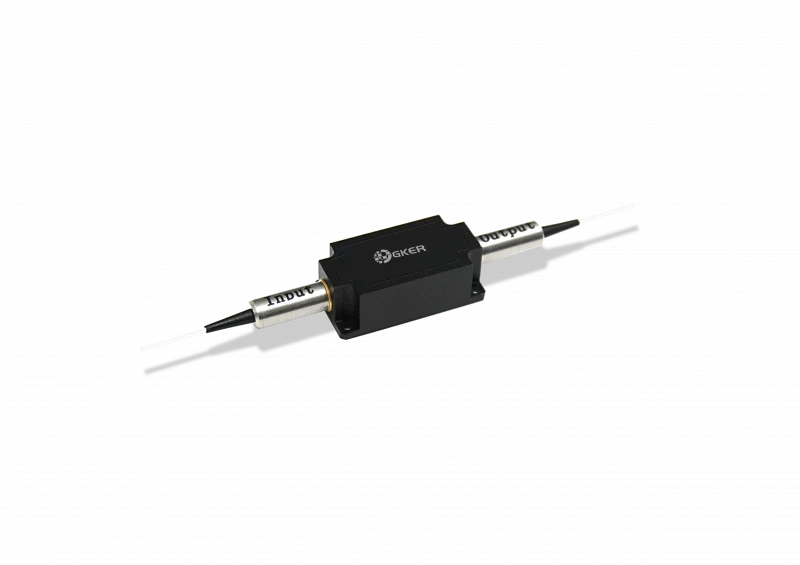

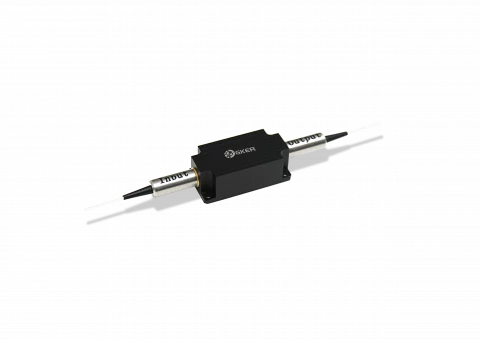

1064nm 2W High Power Polarization Maintaining Isolator (HPMI Series)

Name: 1064nm 2W High Power Polarization Maintaining Isolator (HPMI Series)
Brand: GKER Photonics
Availability: InStock

Description

The High Power Polarization Maintaining Isolator, part of the HPMI Series, boasts cutting-edge micro optics technology. Designed with meticulous attention to detail, this isolator offers precision, reliability, and performance excellence. Its exceptional features include low insertion loss, high isolation, superior return loss, and an impressive extinction ratio, ensuring unparalleled signal quality and polarization control.

Engineered for demanding environments, it delivers consistent performance across a wide temperature range. Whether integrated into amplifiers, fiber lasers, or test instruments, the HPMI Series isolator elevates optical systems to new heights of efficiency and reliability.

Specifications

Type Of The Device:	Isolator
Operating Wavelength:	1064 nm
Max Power:	2 W
Min Isolation:	28 dB
Center Wavelength (λc):	1064 nm
Min. Isolation, λc, 23 ℃:	28 dB
Min. Extinction Ratio:	20 dB
Max. Average Optical Power:	2 W
Max. Peak Power For Ns Pulse:	10 kW

Download Data Sheet

Features

Advanced Micro Optics Technology: Leveraging state-of-the-art micro optics technology for precision and performance excellence

Low Insertion Loss: Minimizes signal loss during transmission, ensuring efficient and reliable optical performance

High Isolation: Provides exceptional isolation between input and output ports, preventing signal interference and ensuring signal purity

Superior Return Loss: Maintains superior return loss characteristics, optimizing signal quality and reducing signal degradation

Impressive Extinction Ratio: Offers precise control over polarization, enabling accurate signal manipulation in a variety of applications

Environmental Stability: Exhibits outstanding stability in diverse environmental conditions, ensuring reliable performance in challenging settings

Reliability: Engineered for long-term reliability, providing consistent performance in demanding applications

Wide Operating Temperature Range: Suitable for deployment across a wide temperature range, from +10°C to +50°C, ensuring adaptability to varying environmental conditions

Applications

Amplifiers: Enhances signal strength and fidelity in optical amplifiers, optimizing signal transmission

Fiber Lasers: Integrates seamlessly into fiber laser systems, enabling precise control over laser output

Test Instruments: Facilitates accurate signal measurement and analysis in a variety of test setups and instruments

Telecommunications: Enables efficient signal routing and management in telecommunications systems, ensuring reliable communication

Spectroscopy: Supports precise wavelength control in spectroscopic instruments, enhancing spectral analysis accuracy

Biomedical Imaging: Enables accurate signal manipulation in biomedical imaging systems, improving imaging quality and clarity

Research Laboratories: Contributes to experimental setups and measurements in research laboratories, ensuring accurate data collection and analysis

Industrial Applications: Used for signal processing and control in various industrial settings, enhancing operational efficiency and productivity

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

GKER Photonics

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is a polarization maintaining isolator, and how does it work?

A polarization maintaining isolator is an optical device designed to allow light to propagate in only one direction while blocking it in the opposite direction. It maintains the polarization state of the input light, ensuring signal fidelity.

What makes the HPMI Series isolator stand out from other isolators?

The HPMI Series isolator features advanced micro optics technology, resulting in low insertion loss, high isolation, superior return loss, and exceptional extinction ratio. Its robust design and environmental stability make it ideal for demanding applications.

What are the typical applications of the HPMI Series isolator?

This isolator is commonly used in amplifiers, fiber lasers, test instruments, telecommunications systems, spectroscopy setups, biomedical imaging devices, research laboratories, and various industrial applications.

What is the operating wavelength range of the HPMI Series isolator?

The HPMI Series isolator operates at a center wavelength of 1064 nm, with a tolerance of ±10 nm.

What is the maximum average optical power that the HPMI Series isolator can handle?

The HPMI Series isolator can handle a maximum average optical power of 2 W, making it suitable for high-power optical systems.

Can the HPMI Series isolator withstand high peak power pulses?

Yes, the HPMI Series isolator can withstand peak powers of up to 10 kW for nanosecond pulses, ensuring reliable performance in pulse laser applications.

What is the typical insertion loss of the HPMI Series isolator?

The typical insertion loss of the HPMI Series isolator is 0.8 dB, ensuring minimal signal loss during transmission.

What environmental conditions can the HPMI Series isolator operate in?

The HPMI Series isolator operates within a wide temperature range, from +10°C to +50°C, and can be stored in temperatures ranging from 0°C to +60°C.

Does the HPMI Series isolator come with different connector types and fiber jackets?

Yes, the HPMI Series isolator is available with various connector types, including FC/UPC, FC/APC, SC/UPC, and SC/APC, and can be equipped with different fiber jackets, such as 250 µm bare fiber or 900 µm loose tube.

Is the HPMI Series isolator suitable for both continuous wave and pulsed applications?

Yes, the HPMI Series isolator is suitable for both continuous wave (CW) and pulsed applications, providing versatility in various optical setups and systems.
