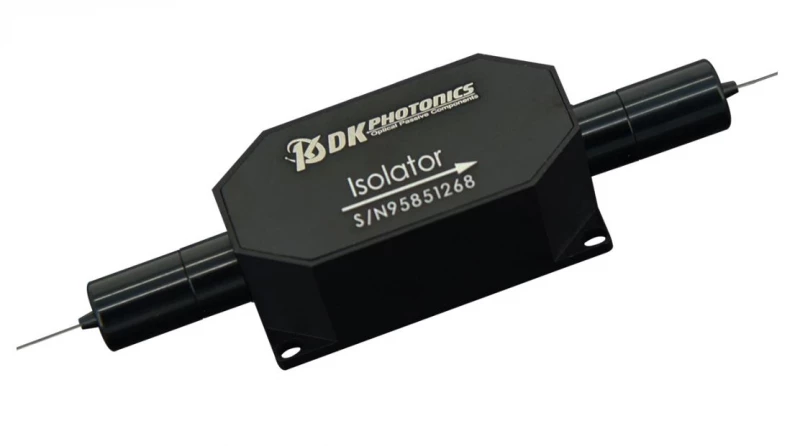

1064nm High Power Polarization Independent Isolator-2W
Description
The high power isolator series includes in-line type, beam expanded isolator, fiber in and free space out isolator and free space isolator etc. 1064nm High Power Polarization Independent Isolator is one of the in-line type. they’re characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.
For wavelength of 1064nm, PM and non-PM types are available, fiber can be customized, with power conditions of CW or Pulse and Power Handling of 1W, 2W, 10W, 20W, 30W, 50W can be customized.
If you do not see a standard isolator that meets your needs, we welcome the opportunity to review your desired specification and quote a custom isolator. Requests for custom fiber pigtails, different wavelengths and handling power of operation or other specific needs will be readily addressed.
1064nm High Power Polarization Independent Isolator-2W
Specifications |
|
---|---|
Type Of The Device: | Isolator |
Operating Wavelength: | 1064 nm |
Max Power: | 2 W |
Min Isolation: | 28 dB |
Operating Wavelength Range: | ±5 nm |
Typ. Peak Isolation: | 35 dB |
Typ. Insertion Loss (at 25℃): | 1.7 dB |
Max. Insertion Loss (at 0~50℃, 2W): | 3.0 dB |
Max. PDL (for SM Fiber): | 0.2 dB |
Max. Optical Power (CW): | 2 W |
Max. Optical Peak Power: | 1 kW |
Features
- Low Insertion Loss
- High Power Handling
- High Isolation
- PM and Non-PM are available
- Fiber can be customized
- High Reliability
- Excellent Temperature Stability
Applications
- Fiber Lasers
- Fiber Amplifier Lab Research
- Fiber Amplifier
- Test and Measurement
- Instrumentation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
The key features include low insertion loss, high power handling, high isolation, PM and non-PM availability, customizable fiber, high reliability, excellent temperature stability, and high return loss.
Yes, requests for custom fiber pigtails, different wavelengths, handling power of operation, or other specific needs will be readily addressed.
It is suitable for high power fiber lasers, fiber amplifier lab research, test and measurement, and instrumentation.
Yes, the power handling can be customized to 1W, 2W, 10W, 20W, 30W, or 50W.
It is ideal for fiber laser and instrumentation applications.
