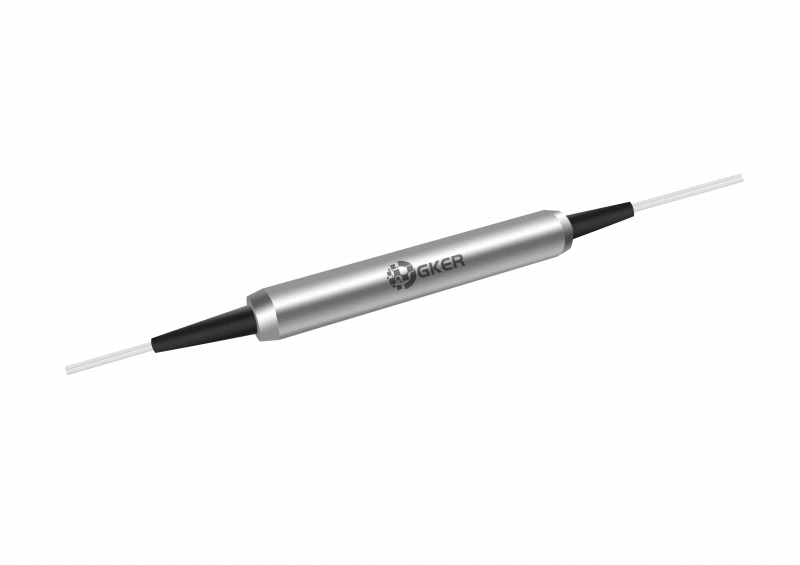

1310/1480/1550nm Polarization Maintaining Tap Isolator (PMTI Series)

Name: 1310/1480/1550nm Polarization Maintaining Tap Isolator (PMTI Series)
Brand: GKER Photonics
Availability: InStock

Description

Witness the pinnacle of optical engineering with the Polarization Maintaining Tap Isolator (PMTI Series), a marvel of modern technology designed to revolutionize signal management in fiber optic systems. This ingeniously crafted device seamlessly integrates a tap coupler and a polarization-sensitive isolator into a single, compact package, offering unparalleled performance and versatility.

Crafted with meticulous precision, the PMTI Series boasts an array of cutting-edge features that set it apart in the realm of optical components. With a high Extinction Ratio (ER) and astonishingly low insertion loss, this isolator ensures signal purity and integrity, even in the most demanding applications. Its wide operating wavelength range, spanning from 1310 nm to 1550 nm, provides unmatched flexibility for diverse optical setups.

Engineered for reliability and durability, the PMTI Series can withstand rigorous environmental conditions, making it suitable for a wide range of applications, from fiber amplifiers to telecommunications systems. Its robust construction and high optical power handling capability of up to 300 mW guarantee exceptional performance under varying operating conditions.

The PMTI Series isn't just a component; it's a cornerstone for innovation in optical communications. Whether you're optimizing fiber amplifier systems, enhancing fiber optic networks, or conducting groundbreaking research and development, the PMTI Series delivers unparalleled precision, reliability, and performance, ensuring seamless signal monitoring and control in every application.

Specifications

Type Of The Device:	Isolator
Operating Wavelength:	1310 nm
Max Power:	0.3 W
Min Isolation:	30 dB
Center Wavelength (λc):	1310, 1480, 1550 nm
Operating Wavelength Range:	λc ± 15 nm
Configuration:	2 × 2
Tap Ratio:	1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10 ± 2.0 %
Min. Isolation, λc ± 10 Nm, 23 ℃, All Polarization States:	Single stage: 30, Dual Stage:45 dB
Min. Extinction Ratio:	20 dB
Max. Optical Power (Continuous Wave):	300 mW

Download Data Sheet

Features

Compact Integration: Integrates a tap coupler and polarization-sensitive isolator into a single compact package
High Extinction Ratio (ER): Ensures excellent signal integrity and minimal signal degradation
Low Insertion Loss: Minimizes signal attenuation, preserving signal strength and quality
Wide Operating Wavelength Range: Supports wavelengths of 1310 nm, 1480 nm, and 1550 nm, providing versatility for various applications
High Optical Power Handling: Capable of handling up to 300 mW of continuous wave optical power
Durable Construction: Designed to withstand rigorous environmental conditions, ensuring long-term reliability

Applications

Fiber Amplifiers: Ideal for use in fiber amplifier systems, ensuring precise signal monitoring and control
Fiber Optic Networks: Essential for maintaining signal integrity in fiber optic networks, enhancing overall system performance
Telecommunications: Facilitates signal monitoring and management in telecommunications systems, ensuring reliable data transmission
Instrumentation: Suitable for instrumentation applications requiring accurate signal monitoring and control
Research and Development: Provides a versatile platform for research and development activities in the field of optical communications

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

GKER Photonics

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is a Polarization Maintaining Tap Isolator (PMTI)?

The Polarization Maintaining Tap Isolator (PMTI) is an advanced optical component that combines a tap coupler and a polarization-sensitive isolator into a single unit. It allows light to pass through in one direction while blocking it in the opposite direction, enabling precise signal monitoring and control in fiber optic systems.

What makes the PMTI Series unique?

The PMTI Series stands out for its integrated design, featuring high Extinction Ratio (ER) and remarkably low insertion loss. It offers exceptional performance and versatility in signal management, making it ideal for various optical applications.

What are the key features of the PMTI Series?

The PMTI Series boasts high Extinction Ratio (ER), low insertion loss, wide operating wavelength range (1310 nm to 1550 nm), and high optical power handling capability (up to 300 mW). Its compact design and robust construction ensure reliability and durability in diverse environments.

What applications is the PMTI Series suitable for?

The PMTI Series is well-suited for a wide range of applications, including fiber amplifiers, fiber optic networks, telecommunications systems, instrumentation, and research and development activities in optical communications.

How does the PMTI Series contribute to signal monitoring in fiber optic systems?

By integrating a tap coupler and a polarization-sensitive isolator, the PMTI Series enables precise signal monitoring and control. It allows users to extract a portion of the signal for monitoring purposes while maintaining signal integrity and purity in the main transmission path.

Can the PMTI Series withstand challenging environmental conditions?

Yes, the PMTI Series is designed to withstand rigorous environmental conditions, with an operating temperature range of -5°C to +70°C and a storage temperature range of -40°C to +85°C. Its robust construction ensures reliable performance in diverse operating environments.

How do I select the appropriate configuration of the PMTI Series for my application?

The PMTI Series offers both single-stage and dual-stage configurations, allowing users to choose the configuration that best suits their specific requirements. Additionally, users can specify the wavelength, coupling ratio, connector type, fiber jacket, fiber length, and working axis according to their application needs.

Is customization available for the PMTI Series?

Yes, the PMTI Series offers customization options for connector type, fiber jacket, fiber length, and working axis to accommodate specific application requirements. Users can specify their customization preferences when placing an order.

How can I obtain technical support for the PMTI Series?

For technical support or further inquiries regarding the PMTI Series, users can contact the manufacturer or supplier directly via the "Contact Supplier" or "Inquire Price" button on this page.
