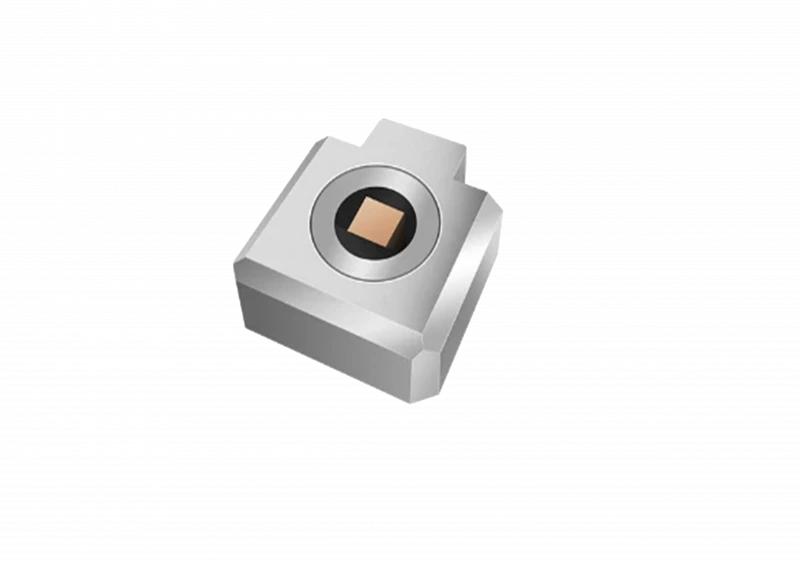

1310/1550nm Free Space Isolator Epoxy (FSIE Series)
Description
The Free Space Isolator Epoxy, part of the FSIE Series, is a precisely engineered device tailored for integration within laser diode packages. Its primary function is to curb back reflection effectively, ensuring optimal performance and reliability in various optical systems. Crafted to adhere strictly to Telcordia standards, this isolator offers cutting-edge design and manufacturing processes, delivering exceptional isolation, low insertion loss, and a generous clear aperture for accommodating diverse diode laser packaging requirements.
Built upon years of research and development, the FSIE Series isolator boasts advanced features and innovative design elements. By employing a unique epoxy-free optical path, it enhances power handling capabilities while minimizing signal degradation, ensuring that the transmitted signal remains pristine and unaltered.
The Free Space Isolator Epoxy is engineered to meet the demands of modern optical communication systems, where the prevention of back reflection is critical for maintaining signal integrity and system stability. Its versatility and adaptability make it suitable for integration into various optical setups, from laser diode modules and fiber laser systems to telecommunications networks and industrial applications.
1310/1550nm Free Space Isolator Epoxy (FSIE Series)
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1310, 1550 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 30 dB |
| Center Wavelength (λc): | 1310, 1550 nm |
| Min. Isolation, 23 ℃: | Single stage:30, Dual stage: 40 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
Features
- High-Performance Integration: Engineered for seamless integration within laser diode packages to thwart back reflection and ensure signal fidelity
- Exceptional Isolation: Offers high peak isolation and minimum isolation at 23 ℃ across all polarization states, guaranteeing minimal signal interference
- Low Insertion Loss: Maintains signal integrity by minimizing the loss of optical power during transmission through the isolator
- Generous Clear Aperture: Features a large clear aperture of 40 mm, providing versatility to adapt to various diode laser packaging configurations
- Temperature Stability: Operates within a wide temperature range from 0 to +60 ℃, ensuring stable performance across different environmental conditions
- Robust Construction: Constructed with premium materials and a robust design, ensuring long-term reliability and durability
- Flexible Configuration: Available in single-stage and semi-double stage configurations, catering to different application needs and specifications
Applications
- Laser Diode Modules: Integrates seamlessly within laser diode modules to prevent back reflection and ensure optimal performance
- Fiber Laser Systems: Essential component for maintaining signal integrity and minimizing signal degradation in fiber laser systems
- Optical Communication Systems: Ideal for use in optical communication systems requiring isolation of reflected light to prevent signal interference
- Research and Development: Suitable for research laboratories and development facilities working on laser technologies and optical systems.
- Industrial Applications: Widely used in industrial settings for laser-based manufacturing processes and precision optical systems
- Telecommunications: Finds application in telecommunications networks for ensuring signal fidelity and reliability
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The FSIE Series is designed to be integrated within laser diode packages to prevent back reflection. It ensures signal integrity and system stability by minimizing signal degradation caused by reflected light.
The FSIE Series supports center wavelengths of 1310 nm and 1550 nm.
The FSIE Series can handle a maximum optical power of 300 mW in continuous wave mode.
The FSIE Series operates within a temperature range of 0 to +60 degrees Celsius.
The FSIE Series is available in single-stage and dual-stage configurations with various package dimensions to suit different application needs.
The FSIE Series finds applications in laser diode modules, fiber laser systems, optical communication systems, research and development facilities, industrial settings, and telecommunications networks.
The tilt angle of the input plane for the FSIE Series is 6 degrees.
The FSIE Series is available with or without a housing, depending on the specified package dimensions.
The typical insertion loss of the FSIE Series is 0.12 dB.
