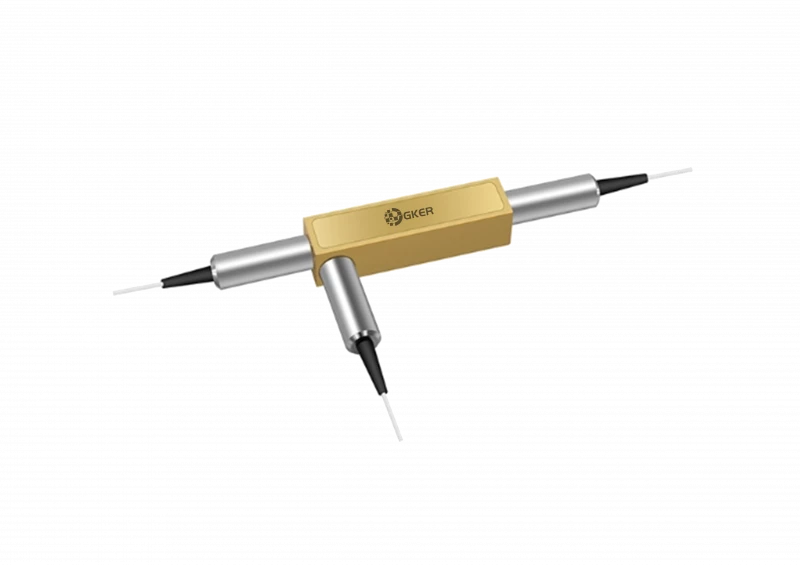

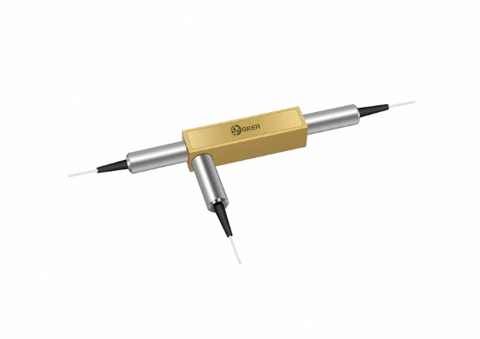

1550 nm Polarization Maintaining Circulator-PMCIR
Description
The 1550 nm Polarization Maintaining Circulator is a compact, high performance
lightwave component that routes incoming signals from Port 1 to Port 2, and incoming
Port 2 signals to Port 3. The component provides high isolation, low insertion loss,
high extinction ratio and excellent environmental stability.
1550 nm Polarization Maintaining Circulator-PMCIR
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1550 nm |
| Max Power: | 300 W |
| Min Isolation: | 20 dB |
| Center Wavelength (λc): | 1550 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Min. Extinction Ratio: | 20 dB |
| Max. Insertion Loss: | 1 dB |
| Min. Isolation: | 20 dB |
| Min. Crosstalk: | 45 dB |
| Min. Return Loss: | 50 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | 0 to + 40 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
| Fiber Type: | PM 1550 Fiber - |
