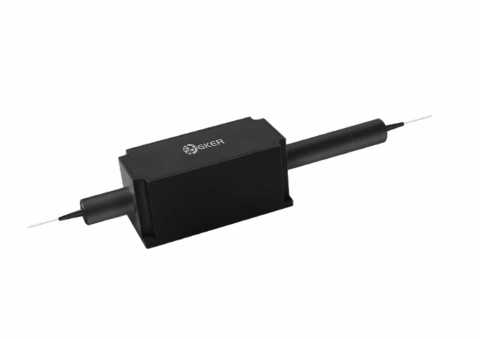

1550nm 20W High Power Polarization Maintaining Isolator (HPMI Series)
Description
Unlock the potential of your optical systems with the High Power Polarization Maintaining Isolator (HPMI Series). Engineered with precision and reliability in mind, this isolator stands as a beacon of excellence in the field of optical components. With its remarkable power handling capabilities, coupled with low insertion loss and high isolation, the HPMI Series ensures unparalleled signal integrity and stability.
Crafted to thrive in demanding environments, this robust component is the perfect fit for fiber laser and instrumentation applications, where precision and reliability are non-negotiable. Elevate your optical setups to new heights and experience the difference with the HPMI Series.

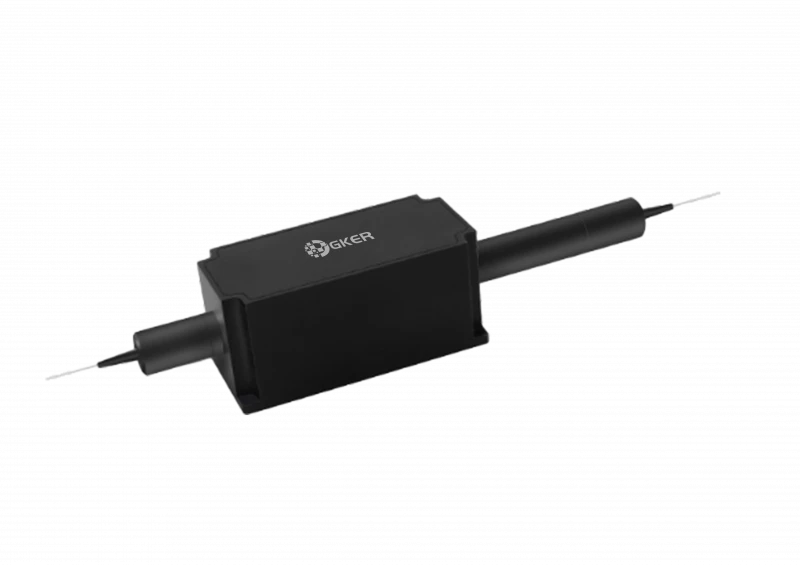

1550nm 20W High Power Polarization Maintaining Isolator (HPMI Series)
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1550 nm |
| Max Power: | 20 W |
| Min Isolation: | 28 dB |
| Center Wavelength (λc): | 1550 nm |
| Min. Extinction Ratio, 23 ℃: | 20 dB |
| Min. Isolation, λc, 23 ℃, All Polarization States: | 28 dB |
| Max. Optical Power: | 20 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
Features
- High Power Handling: With a capacity to handle up to 20 W of optical power, the HPMI Series is tailor-made for high-power fiber laser applications, delivering consistent performance under challenging conditions
- Low Insertion Loss: Boasting a typical insertion loss of just 0.3 dB, the HPMI Series ensures minimal signal attenuation, preserving signal strength and fidelity for precise signal management
- High Isolation: Achieve superior signal purity and stability with exceptional isolation levels of up to 35 dB, effectively suppressing unwanted reflections and maintaining signal integrity
- Excellent Return Loss: Minimize signal loss and maximize signal reflection back into the source with a minimum return loss of 50 dB on both input and output ports, ensuring maximum signal fidelity
- Wide Operating Wavelength: Supporting a center wavelength of 1550 nm, the HPMI Series covers a broad spectrum of optical frequencies, catering to diverse application requirements
- Robust Construction: Built to last, the HPMI Series features a robust construction that ensures long-term performance and stability in the most demanding environments
Applications
- Fiber Lasers: Ensure signal integrity and stability in high-power fiber laser systems used in industrial processing, material fabrication, and medical applications.
- Instrumentation: Enable precise signal management and control in instrumentation setups for spectroscopy, metrology, and scientific research.
- Pulse Applications: Ideal for pulse applications requiring high power handling and signal isolation, such as pulse shaping, mode locking, and optical coherence tomography (OCT).
- Continuous Wave (CW) Operation: Suitable for continuous wave operation in fiber laser systems, telecommunications networks, and optical sensing applications.
- Research and Development: Provide a reliable platform for research and development activities in optical communications, photonics, and quantum optics.
- Telecommunications: Support signal management and control in telecommunications networks, ensuring reliable data transmission in optical communication systems.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The HPMI Series is designed for use in fiber laser and instrumentation applications. It provides low insertion loss, high isolation, and exceptional power handling capabilities, making it ideal for ensuring signal integrity and stability in optical systems where precision is critical.
The HPMI Series ensures signal integrity by minimizing signal attenuation (low insertion loss), suppressing unwanted reflections (high isolation and return loss), and providing reliable performance under varying environmental conditions.
The HPMI Series is suitable for a wide range of applications, including: Fiber laser systems for industrial processing and medical applications; Instrumentation setups for spectroscopy, metrology, and research; Pulse applications such as pulse shaping and mode locking; Continuous wave operation in telecommunications and sensing applications
The HPMI Series operates within a temperature range of -5 to +70 ℃ and can withstand storage temperatures from -40 to +85 ℃. It is designed to maintain performance and reliability even in challenging environmental conditions.
The HPMI Series is compatible with PM 1550 Panda Fiber for both input and output ports. This fiber type ensures polarization maintaining characteristics, essential for maintaining signal polarization in optical systems.
Yes, the HPMI Series offers customization options for connector type, fiber type, fiber length, working axis, and power type. Customers can specify their requirements to tailor the isolator to their specific application needs.
The HPMI Series can handle a maximum optical power of 20 W and a maximum peak power of 10 kW for ns pulse applications.
Yes, the HPMI Series is suitable for continuous wave (CW) operation, making it versatile for various optical applications requiring continuous signal transmission.
The HPMI Series offers a typical insertion loss of just 0.3 dB, ensuring minimal signal attenuation and preserving signal strength in optical systems.
