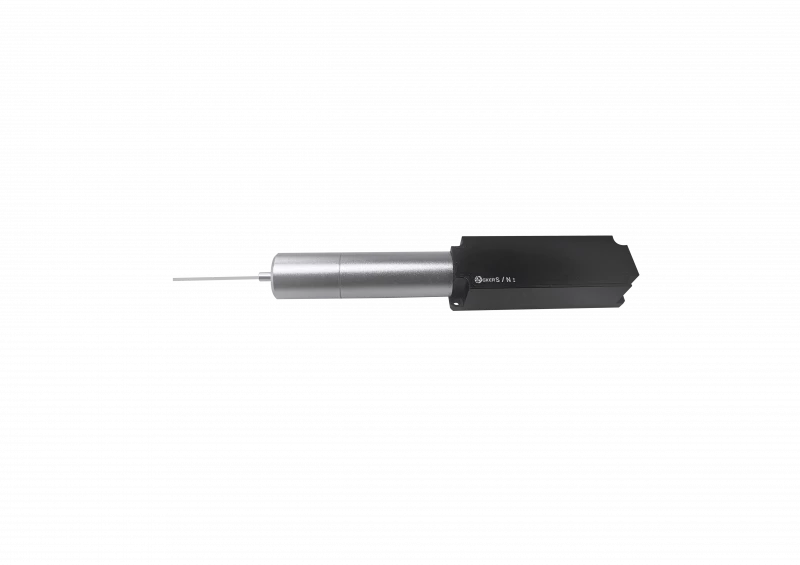

2 μm Fiber to Free Space High Power Isolator
Description
This Fiber to Free Space High Power Isolator is characterized with low insertion loss, high isolation high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
2 μm Fiber to Free Space High Power Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 2000 nm |
| Max Power: | 100 W |
| Min Isolation: | 25 dB |
| Center Wavelength (λc): | 2000, specified nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Max. Insertion Loss: | 1 dB |
| Min. Isolation @ λc, 25 ℃: | 25 dB |
| Beam Diameter (1/e2 , Single Mode Only): | 0.8 ± 0.2 mm |
| Max. Average Optical Power: | 100 W |
| Max. Peak Power For Ns Pulse: | 20 kW |
Features
High Power Isolator with Collimator
Applications
Fiber Laser
