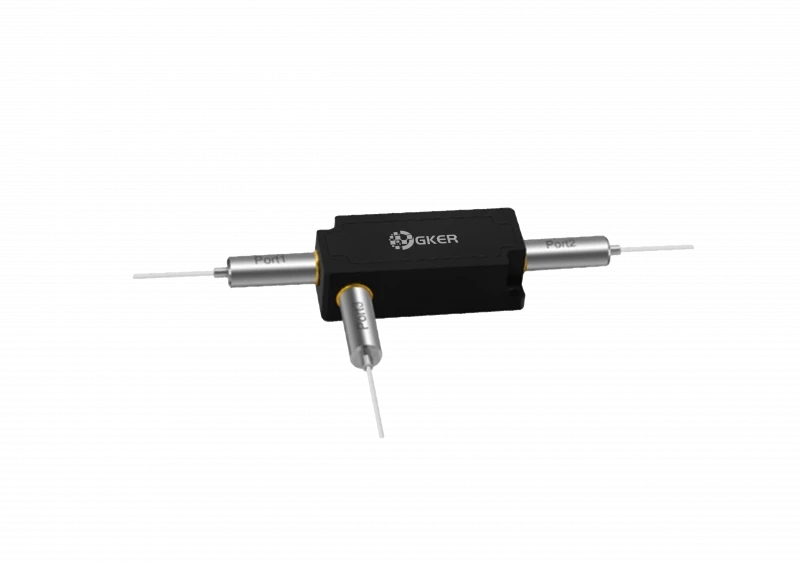

2 µm Polarization Insensitive Circulator
Description
The GKER Photonics 2 µm Polarization Insensitive Circulator (GK-FCIR Series) is a state-of-the-art optical component designed to meet the demanding needs of modern fiber optic systems. This circulator is specifically engineered for operation in the 2 µm wavelength range, making it ideal for applications requiring precise signal routing and robust performance. It operates by directing incoming optical signals from Port 1 to Port 2 and then from Port 2 to Port 3, ensuring seamless signal transmission with minimal loss and high isolation.
One of the standout features of the GK-FCIR Series is its polarization insensitivity, which ensures consistent performance regardless of the polarization state of the incoming light. This makes it an excellent choice for systems where polarization effects can lead to signal degradation. The circulator also boasts a low insertion loss of just 1.5 dB at 23°C and a minimum isolation of 16 dB, ensuring that your signals maintain their integrity throughout the optical path.
With a maximum crosstalk of 40 dB and a return loss of 50 dB, the GK-FCIR Series guarantees minimal interference and reflection, which is crucial for maintaining high signal quality in complex optical networks. Additionally, the circulator is capable of handling high optical power, with options ranging from 0.3 W to 5 W, and can withstand peak powers of up to 10 kW for nanosecond pulses, making it suitable for high-power laser applications.
The circulator is built to endure challenging environments, with an operating temperature range of -5°C to +70°C and a storage temperature range of -40°C to +85°C. It is available with various fiber types, including SMF-28, Nufern SM 1950, and Thorlabs SM 2000, and can be customized with different connector types and fiber jackets to suit specific application needs.
With its compact design, high reliability, and versatile configuration options, the GKER Photonics 2 µm Polarization Insensitive Circulator (GK-FCIR Series) is the perfect choice for a wide range of optical communication and sensing applications. Whether you’re working in fiber laser systems, optical amplifiers, or other high-performance optical setups, this circulator provides the precision and durability you need to ensure optimal system performance.
2 µm Polarization Insensitive Circulator
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1950 2000 nm |
| Max Power: | 0.3 0.5 1 2 5 W |
| Min Isolation: | 16 dB |
| Operating Wavelength: | 1950, 2000 nm |
| Max. Insertion Loss, 23 ℃, λc ± 30 Nm: | 1.5 dB |
| Min. Isolation, 23 ℃, λc ± 30 Nm: | 16 dB |
| Min. Crosstalk: | 40 dB |
| Min. Return Loss: | 50 dB |
| Max. Polarization Dependent Loss: | 0.2 dB |
| Max. Average Optical Power: | 0.3, 0.5, 1, 2, 5 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | optional - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- Polarization Insensitivity: Consistent performance regardless of light polarization state
- Low Insertion Loss: Only 1.5 dB at 23°C, ensuring minimal signal loss
- High Isolation: Minimum isolation of 16 dB, protecting signal integrity
- High Power Handling: Supports continuous wave power up to 5 W and peak power up to 10 kW
- Robust Design: Operating temperature range of -5°C to +70°C, with storage up to -40°C to +85°C
- Versatile Configuration: Multiple fiber and connector options to suit various applications
Applications
- Optical Communication Systems: Enhances signal routing and isolation in complex networks
- High-Power Lasers: Suitable for use in high-power laser systems with high peak power requirements
- Sensing Systems: Ideal for applications requiring accurate and stable signal transmission under varying conditions
- Scientific Research: Supports advanced optical experiments with high precision and reliability
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The 2 µm Polarization Insensitive Circulator is designed to route incoming optical signals from Port 1 to Port 2 and from Port 2 to Port 3, ensuring efficient signal management in fiber optic systems.
The circulator is designed to maintain consistent performance regardless of the polarization state of the light, ensuring reliable operation in various optical environments.
The maximum insertion loss for the circulator is 1.5 dB at 23°C, ensuring minimal signal degradation during operation.
The circulator provides a minimum isolation of 16 dB at 23°C, effectively protecting signal integrity by minimizing cross-talk between ports.
The circulator supports continuous wave power up to 5 W and peak power for nanosecond pulses up to 10 kW, making it suitable for high-power applications.
The circulator operates efficiently within a temperature range of -5°C to +70°C, with a storage temperature range of -40°C to +85°C.
The circulator is compatible with multiple fiber types, including SMF-28, Nufern SM 1950, and Thorlabs SM 2000 fibers, offering versatility for different applications.
The circulator can be configured with various connectors, including FC/UPC, FC/APC, SC/UPC, and SC/APC, depending on the specific requirements of the application.
