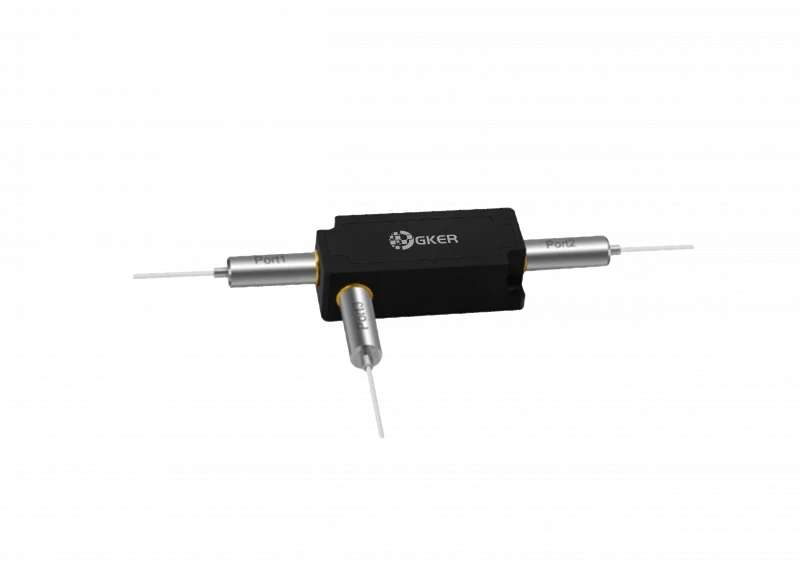

2 μm Polarization Maintaining Fiber Optic Circulator (PMCIR Series)
Description
The 2 μm Polarization Maintaining Fiber Optic Circulator (PMCIR Series) is a high-performance optical device designed to facilitate the routing of optical signals with exceptional precision and reliability. This advanced circulator routes incoming signals from Port 1 to Port 2 and redirects signals from Port 2 to Port 3, making it an essential component for complex optical systems.
Engineered with cutting-edge micro-optic technology, the PMCIR Series offers low insertion loss and high isolation, ensuring minimal signal degradation and interference. Its high return loss and extinction ratio guarantee the integrity of the optical signal, making it ideal for applications where maintaining polarization is crucial.
The circulator's robust construction allows it to handle high optical power levels, both continuous and pulsed, with outstanding environmental stability and reliability. This makes it suitable for a wide range of demanding applications, including fiber lasers, optical signal processing, and advanced instrumentation. The PMCIR Series is available with various connector types, fiber jackets, and handling power specifications, allowing for flexible integration into diverse optical systems.
2 μm Polarization Maintaining Fiber Optic Circulator (PMCIR Series)
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1950 or 2000 nm |
| Max Power: | 0.3, 0.5, 1, 2 or 5 W |
| Min Isolation: | 16 dB |
| Operating Wavelength: | 1950 or 2000 nm |
| Min. Isolation, λc ± 30 Nm: | 16 dB |
| Min. Crosstalk: | 40 dB |
| Min. Extinction Ratio: | 18 dB |
| Max. Average Optical Power: | 0.3, 0.5, 1, 2 or 5 W |
| Max. Peak Power (Pulse Width,10 Ns): | 10 kW |
| Fiber Type: | Specified by ordering info |
Features
- High Power Handling: Capable of managing high continuous power up to 5 W and peak power for ns pulses up to 10 kW. Ensures reliable performance in high-power laser applications without risk of damage.
- Low Insertion Loss: Typical insertion loss as low as 1.5 dB, minimizing signal attenuation. Ensures efficient signal transmission, critical for maintaining system performance.
- High Isolation: Minimum isolation of 50 dB, providing excellent signal separation. Prevents back reflections and cross-talk, enhancing the performance of optical systems.
- High Crosstalk Suppression: Minimizes interference between different optical paths, ensuring clean signal routing. Enhances the clarity and precision of optical signals.
- High Return Loss: Minimum return loss of 45 dB, reducing back reflections significantly. Ensures signal integrity and reduces noise in the system.
- High Extinction Ratio: Minimum extinction ratio of 20 dB, maintaining the polarization state of the signal. Essential for applications requiring precise polarization control.
- Excellent Environmental Stability: Operates reliably over a wide temperature range from -40 to +85 °C. Ensures consistent performance under varying environmental conditions.
- Robust and Reliable Design: Designed for long-term stability and reliability, even in harsh environments. Manufactured with high-quality components to withstand rigorous use.
- Compact Package Dimensions: Small form factor (12 × 17 × 39 mm) allows easy integration into optical systems. Facilitates installation in space-constrained applications.
Applications
- Fiber Lasers: Enhances the performance of high-power laser systems by ensuring low loss and high isolation. Suitable for both continuous wave and pulsed laser operations.
- Fiber Optic Instruments: Ideal for use in precision measurement instruments, offering reliable signal routing and minimal loss. Supports advanced research and development activities requiring high signal integrity.
- Optical Signal Processing: Efficiently routes and manages optical signals in complex networks. Ensures high-quality signal processing with minimal interference and loss.
- Telecommunications: Improves the performance of telecommunication networks by providing high isolation and low insertion loss. Essential for maintaining signal quality in long-distance fiber optic communications.
- Medical Equipment: Supports high-precision optical systems in medical diagnostics and treatment equipment. Ensures reliable performance in critical healthcare applications.
- Industrial Applications: Suitable for use in harsh industrial environments where high power handling and reliability are required. Supports various industrial processes involving fiber optic technology.
