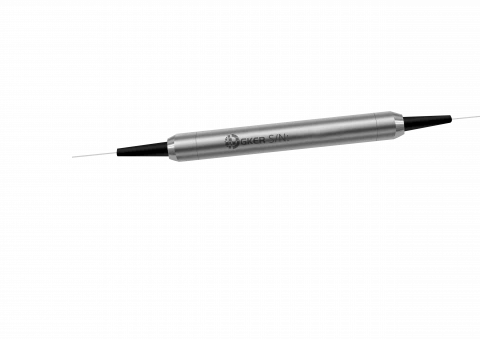

2 µm Polarization Maintaining Isolator (PMI Series)

Name: 2 µm Polarization Maintaining Isolator (PMI Series)
Brand: GKER Photonics
Availability: InStock

Description

The 2 µm Polarization Maintaining Isolator (PMI Series) is a state-of-the-art optical device engineered to meet the rigorous demands of modern laser systems. Compliant with Telcordia standards, this isolator is designed to offer unparalleled performance and reliability. The unique manufacturing process, featuring an epoxy-free optical path, enhances the device’s ability to handle high power levels, making it an ideal choice for applications that require high precision and stability.

Specially crafted for 2 µm laser systems, the PMI Series isolator is characterized by its high isolation, low insertion loss, and superior return loss. It is available in both single-stage and dual-stage configurations, allowing users to select the optimal isolation level for their specific needs. With multiple connector options and versatile fiber jacket choices, this isolator provides flexibility and adaptability for a wide range of applications.

Whether you are working in spectroscopy, medical equipment, materials processing, telecommunications, or scientific research, the 2 µm Polarization Maintaining Isolator ensures efficient performance, maintaining the integrity of your optical signals and enhancing the overall functionality of your system.

Specifications

Type Of The Device:	Isolator
Operating Wavelength:	2000 nm
Max Power:	1 W
Min Isolation:	16 dB
Center Wavelength (λc):	2 µm
Min. Extinction Ratio:	18 dB
Min. Isolation, λc ± 50 Nm, 23 ℃, All Polarization States:	Single stage:16, Dual stage: 35 dB
Max. Average Optical Power:	1, 2 W
Max. Peak Power For Ns Pulse:	10 kW

Download Data Sheet

Features

Telcordia Standard Compliance: Designed and manufactured to meet stringent Telcordia standards, guaranteeing high reliability and industry-leading performance
High Power Handling: Epoxy-free optical path design enhances the isolator's capacity to handle high optical power levels, ensuring stability and durability even under intense operational conditions
Superior Isolation: Available in both single-stage and dual-stage configurations to provide optimal isolation, minimizing back reflections and ensuring signal integrity
Low Insertion Loss: Engineered to deliver minimal insertion loss, maintaining high transmission efficiency across the specified wavelength range
Multiple Connector Options: Compatible with various connector types including FC/UPC, FC/APC, SC/UPC, SC/APC, and custom specifications, offering flexibility for different system requirements
Versatile Fiber Jacket Options: Available with different fiber jackets such as 250 µm Panda Fiber and 900 µm Loose Tube, catering to diverse application needs
Customizable Parameters: Offers customizable handling power, fiber length, working axis, and power type to meet specific application demands
Robust Construction: High-quality construction ensures long-term reliability and performance, withstanding harsh environmental conditions

Applications

2 µm Laser Systems: Ideal for integration into advanced 2 µm laser systems, providing reliable isolation and maintaining polarization integrity
Spectroscopy: Enhances the accuracy and efficiency of spectroscopic measurements by preventing unwanted reflections and maintaining signal purity
Medical Equipment: Utilized in medical laser systems where precise control of light is critical for procedures and diagnostics
Materials Processing: Supports high-power laser applications in materials processing, ensuring stable and consistent performance
Telecommunications: Ensures optimal signal transmission and minimal loss in fiber optic communication systems operating at 2 µm
Scientific Research: Facilitates advanced research in optics and photonics by providing reliable performance in experimental setups

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

GKER Photonics

On FindLight:

since 2024

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is a polarization maintaining isolator, and how does it work?

A polarization maintaining isolator is an optical device designed to allow light to pass through in one direction while blocking it in the opposite direction. It typically consists of a polarizer, a Faraday rotator, and an analyzer. The Faraday rotator rotates the polarization of the light, allowing it to pass through the device in one direction while blocking it in the reverse direction.

What are the key features of the 2 µm Polarization Maintaining Isolator?

The 2 µm Polarization Maintaining Isolator features high power handling capability, low insertion loss, high isolation, and superior reliability. It is compliant with Telcordia standards and offers customizable options for connectors, fiber jackets, and other parameters to suit specific application requirements.

What are the applications of the 2 µm Polarization Maintaining Isolator?

This isolator is commonly used in 2 µm laser systems for applications such as spectroscopy, medical equipment, materials processing, telecommunications, and scientific research. It ensures stable and efficient performance by preventing back reflections and maintaining signal purity.

How do I choose the right configuration for my application?

The PMI Series isolator offers various options for wavelength, power handling, connector type, fiber jacket, and other parameters. To select the optimal configuration for your application, consider factors such as the operating wavelength, power requirements, environmental conditions, and compatibility with existing optical components.

What is the difference between single-stage and dual-stage isolators?

Single-stage isolators provide basic isolation, while dual-stage isolators offer higher levels of isolation, making them suitable for applications that require enhanced signal purity and suppression of back reflections. Dual-stage isolators typically have higher insertion loss but provide superior performance in demanding environments.

What is the warranty and support available for the 2 µm Polarization Maintaining Isolator?

This isolator is backed by a warranty against manufacturing defects, and technical support is available to assist with installation, operation, and troubleshooting. For specific warranty terms and support options, please refer to the product documentation or contact our customer support team.

Can the isolator be customized to meet specific requirements?

Yes, the PMI Series isolator offers customization options for wavelength, power handling, connector type, fiber jacket, and other parameters. Our team can work with you to tailor the isolator to your unique specifications and application needs.
