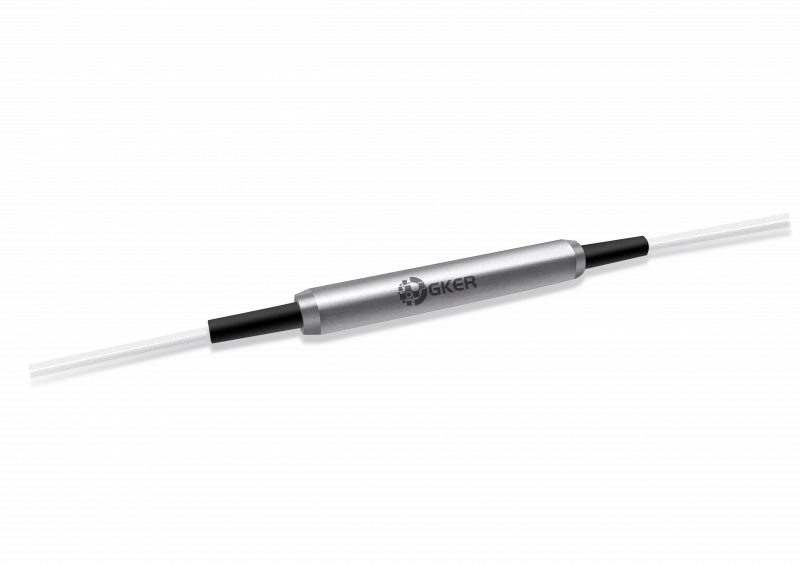

C Band Red/Blue Wavelength Division Multiplexer
Description
The C Band Red/Blue Filter Wavelength Division Multiplexer is a micro optics device
based on environmentally stable thin film filter technology. It is used to separate or
combine Red band wavelength signals and Blue band wavelength signals in C band
range in DWDM systems. The components are characterized with wide passband,
low insertion loss, high return loss, excellent environmental stability and high power
handling capability.
C Band Red/Blue Wavelength Division Multiplexer
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1530 - 1542 (1548 - 1560) nm |
| Max Power: | 300 W |
| Min Isolation: | 22 12 dB |
| Typ. Isolation: | 14 dB |
| Operating Temperature: | - 5 to + 70 ℃ |
| Fiber Type: | SMF-28 Fiber - |
| Max. Tensile Load: | 5 N |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Thermal Stability: | 0.005 dB/℃ |
| Typ. Polarization Dependent Loss: | 0.05 dB |
| Max. Polarization Dependent Loss: | 0.10 dB |
| Min. Return Loss: | 50 dB |
| Wavelength Range: | 1530 - 1542 (1548 - 1560) nm |
| Min. Isolation: | 12 dB |
| Typ. Insertion Loss: | 0.3 dB |
| Max. Insertion Loss: | 0.5 dB |
| Wavelength Range: | 1548 - 1560 (1530 - 1542) nm |
| Typ. Isolation: | 25 dB |
| Min. Isolation: | 22 dB |
| Typ. Insertion Loss: | 0.4 dB |
| Max. Insertion Loss: | 0.6 dB |
