Description
The GKER Photonics High Power Polarization Maintaining Circulator (GK-DPMCIR Series) is an advanced lightwave component designed for high-performance optical systems. This circulator efficiently routes optical signals from Port 1 to Port 2, then from Port 2 to Port 3, and includes a tap port that diverts 1% of the signal from Port 2 for monitoring. Engineered for high power applications, it supports very high average power levels and peak powers, making it ideal for demanding environments such as fiber laser systems.
Featuring exceptional performance metrics, the circulator offers a minimum extinction ratio of 20 dB and a low insertion loss of 1.5 dB at 23°C. It ensures high isolation with a minimum of 20 dB from Port 2 to Port 1 and Port 3 to Port 2, minimizing signal interference and maintaining signal integrity. The device is constructed with polarization maintaining (PM) fibers, specifically PM 980 Panda Fiber or Nufern FUD-3460, and is compatible with HI 1060 Fiber for the tap ports.
Designed to withstand harsh conditions, it operates effectively within a temperature range of +10°C to +50°C and stores safely between 0°C and +60°C. This circulator is ideal for applications requiring precise power routing and monitoring with high power handling capabilities.

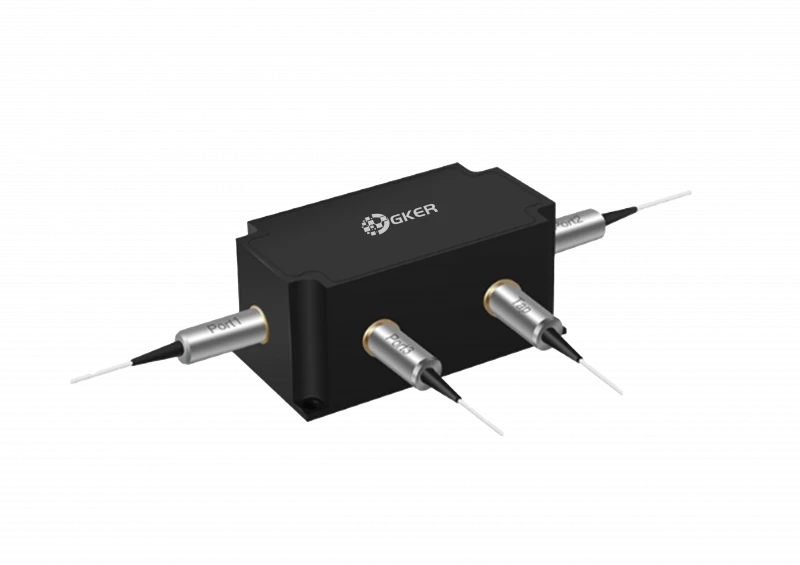

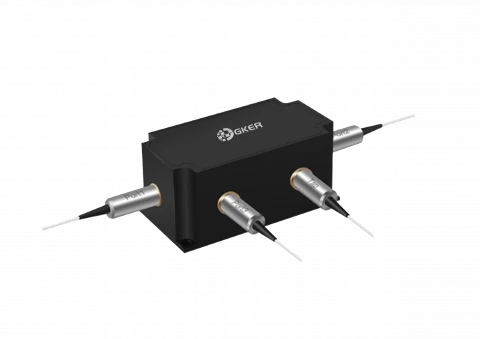

High Power Polarization Maintaining Circulator with Tap Monitors
Specifications
| Type Of The Device: | Circulator |
|---|---|
| Operating Wavelength: | 1064 nm |
| Max Power: | 3 W |
| Min Isolation: | 20 dB |
| Center Wavelength: | 1064 nm |
| Min. Extinction Ratio: | 20 dB |
| Max.Insertion Loss, λc, 23 ℃ (P1 To P2, P2 To P3): | 1.5 dB |
| Min. Isolation, λc, 23 ℃ (P2 To P1, P3 To P2): | 20 dB |
| Min. Crosstalk (P1 To P3): | 45 dB |
| Min. Return Loss: | 45 dB |
| Max. Total Average Optical Power: | 3 or 10 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
| Tap Ratio (Port 2 To Tap): | 1 ± 0.5 % |
| Fiber Type On Ports 1, 2 & 3: | PM 980 Panda Fiber or Nufern FUD-3460 10-125 PM fiber (NA0.085) - |
| Fiber Type On Taps: | HI 1060 Fiber - |
| Operating Temperature: | + 10 to +50 ℃ |
Download Data Sheet
Features
- Polarization Maintaining Design: Ensures stable performance with aligned polarization
- Low Insertion Loss: Minimum signal loss with typical values as low as 1.5 dB
- High Isolation: Provides minimum isolation of 20 dB, protecting signal integrity
- High Extinction Ratio: Maintains a minimum extinction ratio of 20 dB for optimal performance
- High Power Handling: Capable of handling up to 10 W of continuous optical power and peak power up to 10 kW
Applications
- High-Power Fiber Laser Systems: Ideal for managing high power and precise signal routing
- Optical Communication Networks: Ensures reliable signal routing and monitoring
- Instrumentation: Suitable for applications requiring high performance and stability
Frequently Asked Questions
What is the center wavelength of the GK-DPMCIR Series circulator?
What is the minimum extinction ratio of this circulator?
What is the maximum insertion loss at 23°C?
How much isolation is provided between Ports 2 and 1, and Ports 3 and 2?
What is the minimum crosstalk between Port 1 and Port 3?
What is the maximum return loss of the circulator?
What is the maximum continuous optical power the circulator can handle?
What is the maximum peak power for nanosecond pulses?
What is the tap ratio of the circulator?
What type of fiber is used on Ports 1, 2, and 3?
