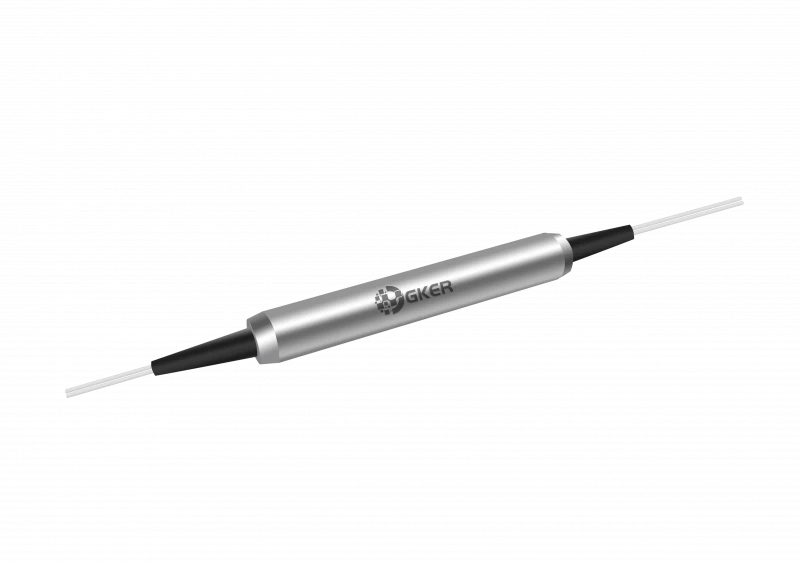

Polarization Maintaining Circulator
Description
The GKER Photonics Polarization Maintaining Circulator (GK-PMCIRT Series) is a high-performance, compact optical component designed to manage light signals with precision and stability. This circulator is engineered to route incoming signals from Port 1 to Port 2 and from Port 2 to Port 3 with minimal loss, making it an essential tool in advanced photonics systems.
The device offers high isolation, low insertion loss, and a high extinction ratio, ensuring that signal integrity is maintained even in demanding environments. Built for applications where polarization maintenance is critical, the GK-PMCIRT circulator excels in ensuring that the polarization state of light is preserved, making it ideal for use in telecommunications, fiber optic sensing, and advanced instrumentation.
The robust construction and superior environmental stability of this circulator make it suitable for deployment in a wide range of operating conditions, from industrial settings to research laboratories. With customizable options for wavelength, connector type, and fiber length, the GK-PMCIRT Series circulator offers flexibility and performance tailored to your specific needs.
Polarization Maintaining Circulator
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1310 1550 nm |
| Max Power: | 300 W |
| Min Isolation: | 40 dB |
| Center Wavelength (λc): | 1310, 1550 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Max. Insertion Loss P1 To P2, P2 To P3: | 1.0 dB |
| Insertion Loss P1 To Tap: | 27 - 30 dB |
| Min. Isolation, 23 ℃, P2 To P1, P3 To P2: | 40 dB |
| Min. Extinction Ratio: | 20 dB |
| Min. Crosstalk P1 To P3: | 50 dB |
| Min. Return Loss: | 50 dB |
| Max. Optical Average Power: | 300 mW |
| Max. Peak Power For Ps Pluse: | 10 kW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | - 5 to + 70 ℃ |
Features
- High Isolation: Ensures minimal signal leakage with an isolation of up to 50 dB
- Low Insertion Loss: Delivers efficient signal routing with a maximum insertion loss of 1.0 dB
- High Extinction Ratio: Maintains signal integrity with a minimum extinction ratio of 20 dB
- Excellent Environmental Stability: Operates reliably across a wide temperature range, from -5°C to +70°C
Applications
- Telecommunications Systems: Enhances signal routing in fiber optic networks with minimal loss
- Fiber Optic Sensing: Ensures accurate and stable signal transmission in sensing applications
- Advanced Instrumentation: Supports precise measurements and data transmission in high-performance optical systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
It is designed to route light signals between specific ports while maintaining polarization.
High isolation, low insertion loss, high extinction ratio, and excellent environmental stability.
It supports center wavelengths of 1310 nm and 1550 nm with an operating range of λc ± 30 nm.
It aligns the optical path to the slow axis, ensuring polarization is preserve
The maximum insertion loss is 1.0 dB for paths P1 to P2 and P2 to P3.
Yes, it can handle up to 300 mW of average optical power and 10 kW for peak ps pulse power.
The operating range is -5°C to +70°C, and the storage range is -40°C to +85°C.
Options include FC/UPC, FC/APC, SC/UPC, SC/APC, or none, with the connector key aligned to the slow axis.
Yes, it can be customized for wavelength, connector type, fiber jacket, fiber length, and tap ratio.
The circulator typically uses 250 μm Bare Fiber or 900 μm Loose Tube, with other options available.
