Description
The GKER Photonics Polarization Maintaining Circulator (GK-PMCIRT Series) is a high-performance lightwave component engineered for applications requiring precise signal routing with exceptional stability. This compact circulator is designed to direct incoming signals from Port 1 to Port 2, and from Port 2 to Port 3, making it a critical component in advanced optical systems.
The GK-PMCIRT series offers superior performance with features such as high isolation, low insertion loss, and a high extinction ratio, ensuring the integrity of the signal's polarization state. The circulator is built to perform reliably in a range of environments, maintaining optimal functionality across a wide temperature range from -5°C to +70°C.
This circulator is ideal for use in systems where maintaining polarization is crucial, such as in fiber optic sensors, coherent communications, and other high-precision optical applications. The GK-PMCIRT series is available with various configurations, including options for different wavelengths, connector types, and fiber jackets, allowing for tailored integration into your optical setup.

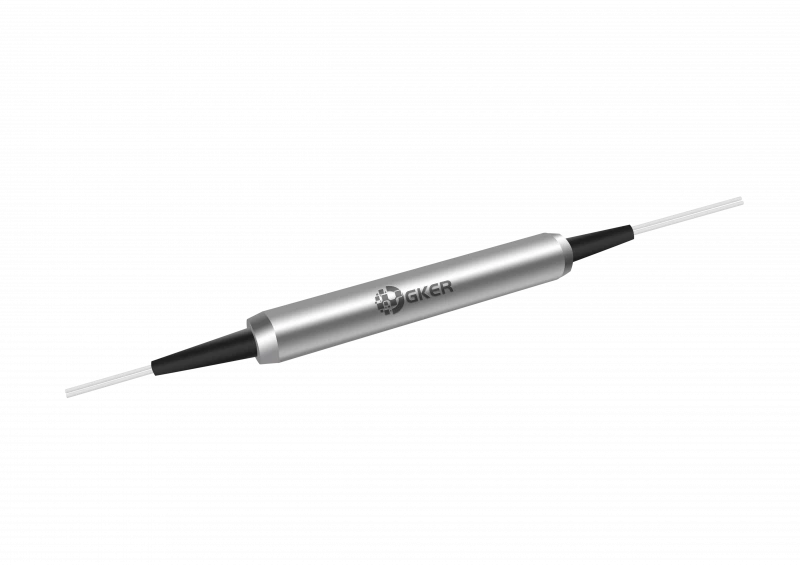

Polarization Maintaining Circulator-PMCIRT
Specifications
| Type Of The Device: | Circulator |
|---|---|
| Operating Wavelength: | 1310 nm |
| Max Power: | 300 W |
| Min Isolation: | 40 dB |
| Center Wavelength (λc): | 1310, 1550 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Max. Insertion Loss P1 To P2, P2 To P3: | 1.0 dB |
| Insertion Loss P1 To Tap: | 20 - 22 dB |
| Min. Isolation, 23 ℃, P2 To P1, P3 To P2: | 40 dB |
| Min. Extinction Ratio: | 20 dB |
| Min. Crosstalk P1 To P3: | 50 dB |
| Min. Return Loss: | 50 dB |
| Max. Optical Average Power: | 300 mW |
| Max. Peak Power For Ps Pluse: | 10 kW |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | - 5 to + 70 ℃ |
Download Data Sheet
Features
- High Isolation: Ensures minimal signal leakage with an isolation of up to 40 dB, protecting signal integrity
- Low Insertion Loss: Delivers efficient signal routing with a maximum insertion loss of 1.0 dB, preserving signal strength
- High Extinction Ratio: Maintains signal polarization with a minimum extinction ratio of 20 dB, crucial for polarization-sensitive applications
- Excellent Environmental Stability: Operates reliably across a wide temperature range, from -5°C to +70°C, ensuring consistent performance in various conditions
- Versatile Power Handling: Supports up to 300 mW of optical average power and 10 kW of peak power for pulse applications
Applications
- Fiber Optic Sensors: Ensures accurate signal transmission in high-precision sensing systems
- Coherent Communications: Maintains polarization integrity, essential for advanced communication systems
- Optical Network Testing: Provides reliable performance in testing environments requiring consistent signal quality
- Quantum Optics: Supports high-performance applications requiring precise control over light polarization
