Ascentta Polarization Maintaining (PM) Isolator for 1064nm
Description

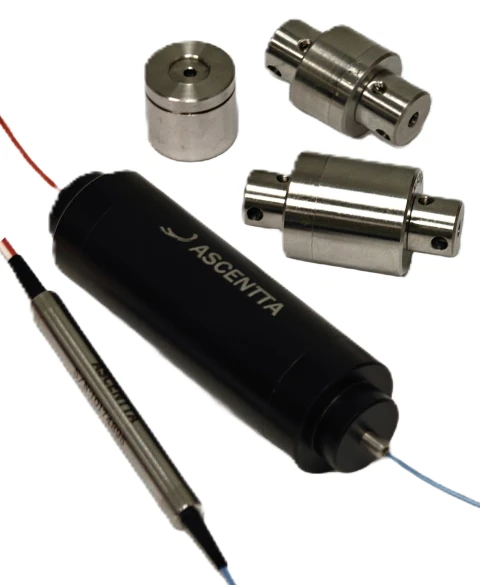

The PMIS-1064 Polarization-Maintaining Isolator by Ascentta, Inc. is a high-quality, garnet, optical isolator designed to provide excellent performance in polarization-maintaining (PM) fiber systems. With its advanced design and precise wavelength operation at 1064nm, this isolator ensures efficient isolation and low insertion loss.
Smaller package with outer diameter of 5.5mm and length of 35mm.
It is ideal for use in various applications, including fiber optic communication, fiber laser systems, and optical instrumentation. Ascentta specializes in customized isolators to meet specific application requirements.
The 1064nm isolator also comes with dual stage version to provide higher isolation for special applications.
Ascentta Polarization Maintaining (PM) Isolator for 1064nm
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 28/42 dB |
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1064nm |
| Max Power: | 150mW |
| Min Isolation Single Stage/Dual Stage: | 28dB/42dB |
| Insertion Loss Max Single Stage/Dual Stage: | 2.2dB/3.4dB |
| Package Size: | OD5.5xL35mm |
| Return Loss (Input/Output): | 55 dB |
| Extinction Ratio: | 20 dB |
| Fiber Type: | PMB=PM Panda, 250um |
| Fiber Length: | 1.0 m |
| Operation Temperature: | -5 to +50 °C |
| Storage Temperature: | -5 to +60 °C |
Features
- High-quality polarization-maintaining (PM) optical isolator
- Designed for precise operation at 1064nm
- Efficient isolation and low insertion loss
- Suitable for polarization-maintaining fiber systems
- Reliable performance and robust construction
- Customizable options available
- Wide range of applications in fiber optics and photonics
Applications
- Fiber optic communication systems
- Fiber laser systems
- Optical fiber instrumentation
- Fiber optic sensing and monitoring
- Research and development in photonics
- Fiber optic testing and measurement
- Industrial and manufacturing applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The wavelength of the Polarization Maintaining Fiber Optic Isolator is 1064nm.
The features of the Polarization Maintaining Fiber Optic Isolator include single or dual stage, customized center wavelength, small package size, slow axis only or both fast and slow axes, and PM Panda Fiber with a choice of cable type and connector.
The applications of the Polarization Maintaining Fiber Optic Isolator include fiber sensing, 3D, holography, gyroscope, LIDAR laser systems, biomedical applications, and instrumentation such as spectroscopy, metrology, and microscopy.
The insertion loss of the Polarization Maintaining Fiber Optic Isolator is typically 1.8dB for single stage and 3.0dB for dual stage at a temperature of 23℃.
Adding connectors can affect the insertion loss (IL), return loss (RL), and extinction ratio (ER) of the Polarization Maintaining Fiber Optic Isolator.
