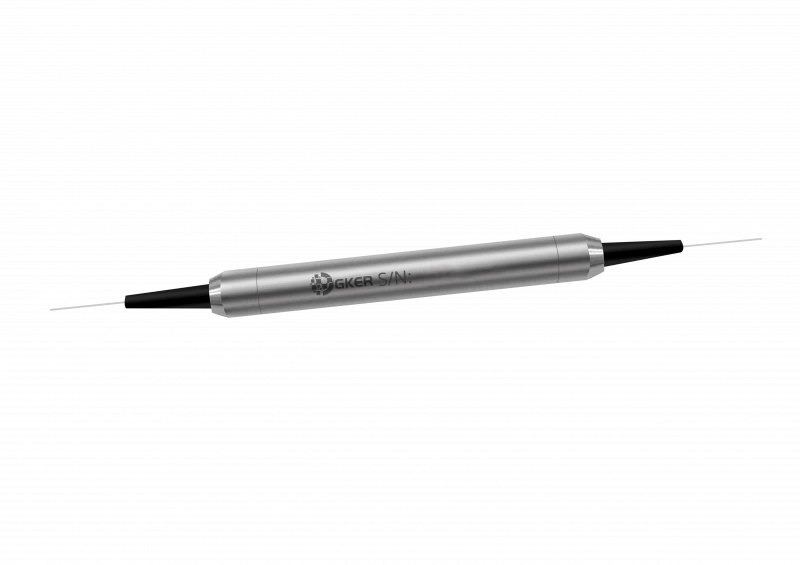

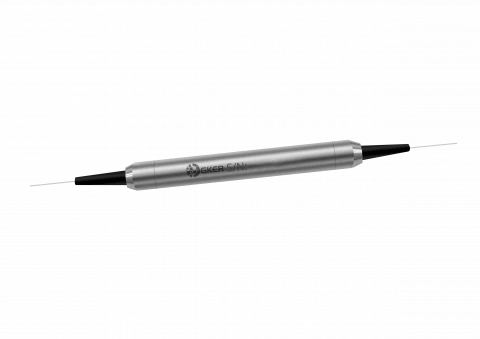

Reduced Cladding In-Line Polarizer
Description
The Reduced Cladding In-Line Polarizer (GK-RCILP Series) from GKER Photonics Co., Ltd is a high-performance optical device engineered to deliver exceptional polarization management in advanced optical systems. This polarizer is designed to pass light with a specific polarization while blocking the orthogonal polarization, making it an essential component in applications where precise polarization control is critical.
With its ability to convert unpolarized light into polarized light with a high extinction ratio, this polarizer enhances the quality and reliability of optical signals, especially in high-speed communication systems and sophisticated test instrumentation.
The GK-RCILP Series is characterized by its reduced cladding design, which not only minimizes insertion loss but also ensures excellent environmental stability across a wide range of operating conditions. This makes it particularly suitable for demanding applications in optical communications, sensing, and research laboratories. The device operates at a center wavelength of 1550 nm with a typical insertion loss of just 0.4 dB and a minimum extinction ratio of 25 dB, ensuring high performance and signal integrity. Additionally, the polarizer is built with RC SMF-28 or RC PM Panda fiber, offering compatibility with various fiber optic systems.
The robust construction of the GK-RCILP Series allows it to handle continuous optical power up to 300 mW, making it a versatile and reliable choice for professionals seeking superior polarization control.
Reduced Cladding In-Line Polarizer
Specifications |
|
|---|---|
| Center Wavelength: | 1550 nm |
| Operating Wavelength Range: | 55-1550nm |
| Typical Insertion Loss: | 0.4 dB |
| Min Return Loss: | 50 dB |
| Typical Extinction Ratio: | 28 dB |
| Max Optical Power (CW): | 300 mW |
| Center Wavelength (λc): | 1550 nm |
| Operating Wavelength Range: | λc ± 50 nm |
| Typ. Insertion Loss, 23 ℃: | 0.4 dB |
| Max. Insertion Loss: | 0.7 dB |
| Typ. Extinction Ratio, 23 ℃: | 28 dB |
| Min. Extinction Ratio, 23 ℃: | 25 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Min. Return Loss: | 50 dB |
| Fiber Type: | RC SMF-28 or RC PM Panda Fiber (MFD 9.5 um) - |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
Features
- High Extinction Ratio: Provides a typical extinction ratio of 28 dB, ensuring precise polarization management
- Low Insertion Loss: Features a typical insertion loss of 0.4 dB, minimizing signal degradation
- Reduced Cladding Design: Enhances environmental stability and reduces insertion loss, ideal for high-performance applications
- Broad Operating Wavelength Range: Operates at 1550 nm with a range of ±50 nm, suitable for various optical systems
- High Optical Power Handling: Capable of managing up to 300 mW of continuous optical power
- Durable Construction: Designed with RC SMF-28 or RC PM Panda fiber, ensuring long-term reliability and compatibility
Applications
- High-Speed Communication Systems: Ideal for use in advanced optical networks requiring precise polarization control
- Optical Sensing: Suitable for applications in optical sensing where high extinction ratios are necessary
- Test Instrumentation: Perfect for integration into test and measurement equipment for accurate polarization management
- Research and Development Laboratories: Essential for R&D environments focusing on optical signal processing and polarization studies
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
It is designed to pass light with one specific polarization while blocking the other, converting unpolarized light into polarized light with a high extinction ratio.
It is ideal for high-speed communication systems, optical sensing, test instrumentation, and research and development laboratories.
The typical insertion loss is 0.4 dB at 23°C.
The device offers a typical extinction ratio of 28 dB and a minimum of 25 dB.
It can handle up to 300 mW of continuous optical power.
It operates at a center wavelength of 1550 nm with a range of ±50 nm.
It uses RC SMF-28 or RC PM Panda fiber.
The operating temperature range is -5°C to +70°C, and the storage temperature range is -40°C to +85°C.
Its reduced cladding design minimizes insertion loss, enhances environmental stability, and ensures high polarization performance.
The device typically measures 35 ± 1 mm in length, 55 ± 1 mm in width, and has a diameter of Φ 5.5 ± 0.1 mm.
