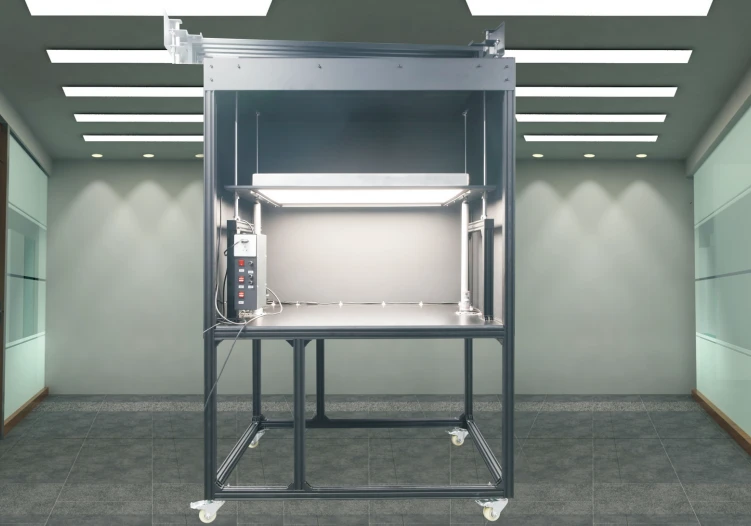

T-UD8464 Camera Focusing Test Workstation with Adjustable LED Light
Description
The T-UD8464 Focusing Test Light Box is a cutting-edge innovation from Guangdong 3nh Group Technology Co., Ltd. This product features a versatile surface light source that can be adjusted vertically to suit user requirements. Designed for precision testing, the surface light source can be positioned beneath the transmission card under examination, while the test camera remains securely fixed. The light box boasts a high-quality LED surface light source, renowned for its exceptional uniformity and high display clarity. It provides flicker-free illumination, ensuring consistent color temperature and a long lifespan, making it ideal for a wide range of optical testing applications.
T-UD8464 Camera Focusing Test Workstation with Adjustable LED Light
Features
PRODUCT PARAMETERS
- Dimensions(length x width x height) 1167x1002x1719mm
- Boxinternaldimensions 1165x1000x1000mm
- Area light source size (overall size) 855x655x10mm
- Size of surface light source(size oftransparent surface)|810x610mm
- Standard color temperature of light source 5100K±200K
- Control box size 92x202x303mm
- Use environment 0-45°C,relative humidity below 85%(non-condensing).
- Input voltage AC22OV, 50/60Hz, 2A.
- Net weight 140kg
All the accessories in the light box are imported from abroad,conform to international quality certification.
Applications
Camera Module Focus Workstation
