Ventus OGI
Description

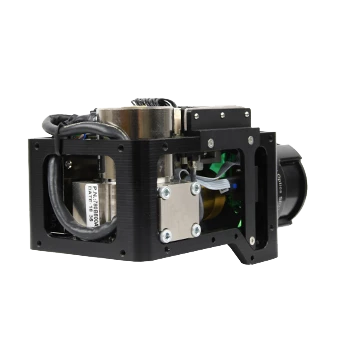

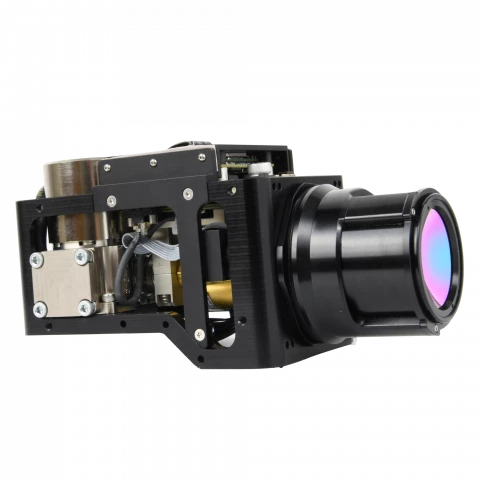

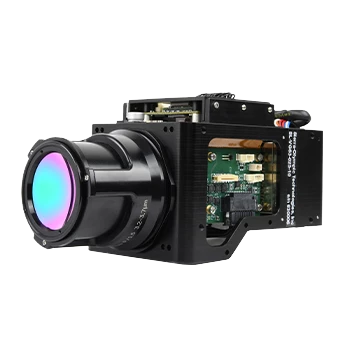

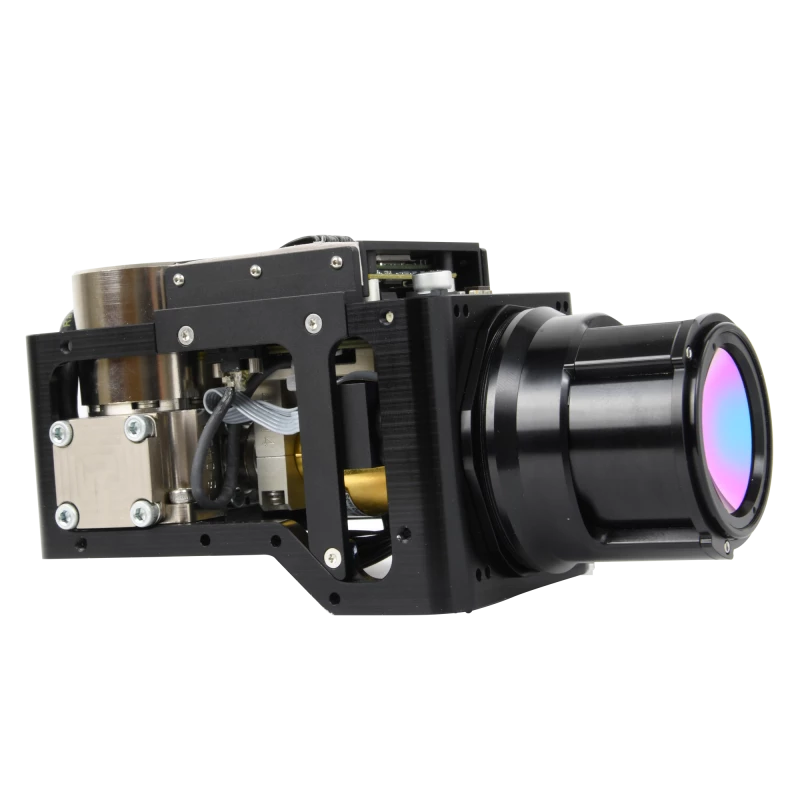

The Ventus OGI are integrated into crewed and uncrewed ground or aerial vehicles, handheld portable and fixed mounted continuous monitoring systems. They are an industry-leading 640 x 512 HOT (high operating temperature) mid-wave infrared camera core designed to detect and visualize hydrocarbon gasses, including methane, propane and butane. The high-performance, low SWaP package is an invaluable tool for the oil and gas industry’s efforts to save time and money, increase efficiency, limit product loss, protect lives and reduce harm to the environment. Our Gas Enhancement Mode (GEM), which colorizes the hydrocarbon carbon gas leaks, such as methane, propane, benzene, etc., to detect leaks at well pads, tank farms, gas processing facilities, pipelines, refineries, etc. quickly and accurately. Our Ventus OGI camera was OOOOa certified in 2018.
Ventus OGI
Specifications |
|
|---|---|
| Camera Type: | Other |
| Array Type: | InSb |
| Spectral Band: | 3.1-3.3um |
| # Pixels (Height): | 640 |
| # Pixels (Width): | 512 |
| Pixel Pitch: | 15 um |
| Array Cooling: | Cooled |
| Frame Rate: | 30 Hz |
| NETD: | <50 mK |
| Analog Video Output: | NTSC/PAL |
| Digital Zoom / Pan: | 2X, 4X, 8X |
| Camera Control: | RS-422/RS-232 Ethernet Serial |
| Input Voltage: | 12 VDC |
| Power Dissipation: | 6W, 12W Typical, Peak |
| Operating Temperature: | -35 - +65 °C |
| F#: | 1.5` |
| Lens Option 1: | 25 mm |
| Lens Option 2: | 50 mm |
Features
- Long-life HOT MWIR detector
- 25 mm / 50 mm lens models
- F 1.5 optic; 2x, 4x, 8x digital zoom
- Gas Enhancement Mode colorizes leaks
- 640 x 512 Array Format
- 541 grams
Applications
- Methane gas leak detection
- Methane gas monitoring.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Ethane, Propane Propylene, Methane, 1-Pentene. Butane, Ethyl Benzene, Heptane, Hexane, Isoprene, Octane
This camera is used at upstream or downstream gas facilities. It has also has use cases at landfills and other area where methane gas detection is needed.
