60W CO2 Lser Cutting Machines with Built-in filter system
Description

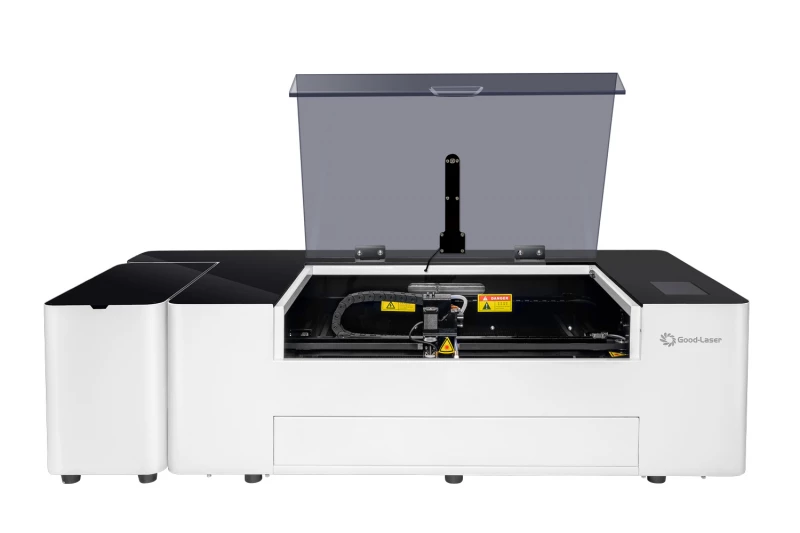

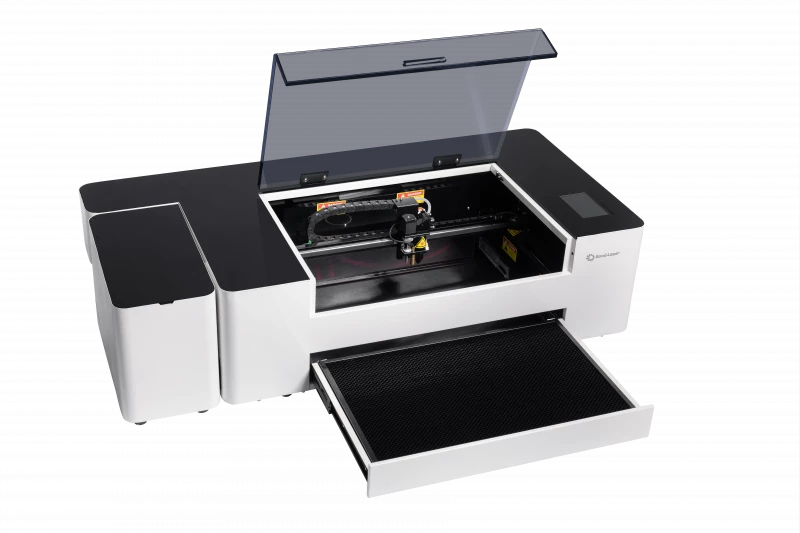

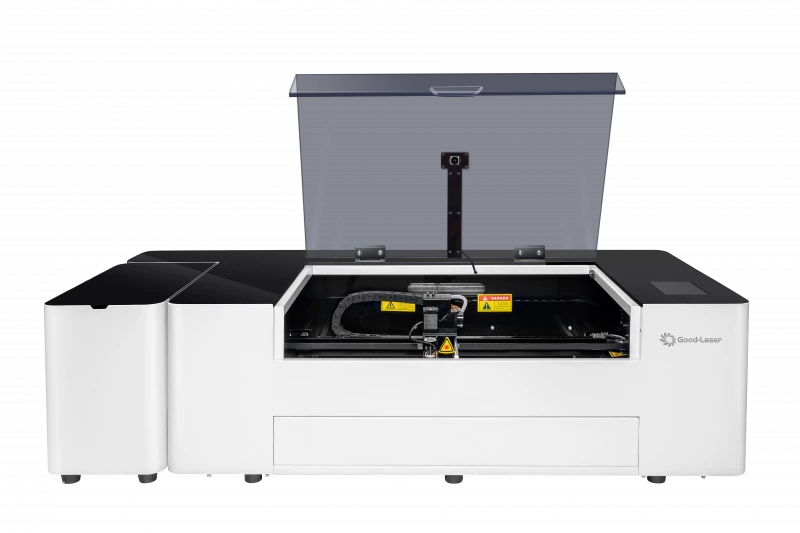

Good-Laser Light 530
Desktop CO2 laser cutting & engraving machine
60W Laser Power, 950mm Laser tube length
A wonder box to fulfill every of your fantastic idea
Made for makers and STEAM education
60W CO2 Lser Cutting Machines with Built-in filter system
Specifications |
|
|---|---|
| Format: | Benchtop |
| Laser Source: | CO2 |
| Laser Output Power: | 60 W |
| Laser Wavelength: | 10.6 um (IR) |
| Beam Delivery: | 3 axis |
| Work Area X: | 500 mm |
| Work Area Y: | 300 mm |
| Work Area Z: | 25 mm |
| Application: | 3D Cutting |
| Sector: | Industrial |
| Materials: | Steel/Iron |
| Voltage Requirement: | Other / Not Specified |
| Included Options: | Rotary Attachment |
| Safety Enclosure: | Yes |
| Laser Safety Class: | Class 4 |
| Max Cutting Speed: | 600 mm/s |
Features
High Precision & Fast
The working speed up to 600mm/s, and the cutting thickness up to 20mm(arcylic), fast and precise cutting engraving for every exquisite piece.
Powerful performance & Highly stable
The auto-focus laser head is equipped with a laser lifting stroke of 25mm to realize highly fine cutting and engraving without manual adjustment. And more than 9000 hours of laser service life.
4K 12MP CCD Camera
The 12MP pixel 4K ultra HD 360°CCD camera can automatically extract the outline by taking pictures of the hand drawing to realize cutting and engraving (scanning). For printing and embroidery and other finer objects take pictures to extract cutting contour for positioning cutting. It can also used as a monitor to view the entire process of machine re-cutting and engraving (scanning) in real-time.
Multiple Security Protection
In the safety design, the use of a fully sealed design, open cover auto stop working and drawer pop open auto stop working protection device, multiple safety designs to protect the user's safe operation.
Easy Operation
Both the 5-inch LCD operate screen and easy-to-use official mobile APP allow to directly operate the machine, making it more convenient to enjoy the fun of creation.
Integrated triple exhaust gas filter
With filters, activated carbon, and UV ozone the triple filter system integrated design, it is not only cleaner and more environmentally friendly, but also more convenient and compact to place the product, which no need to purchase a separate filter box and take up more space.
Applications
Materials:
wood board,cardboard, corrugated cardboard, acrylic board, cloth, leather, backing board, glass fiber, plastic, two-color board, PET, rubber, veneer.....
Industries:
Education, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
