Veshay VIPin-4045AT PCB Laser Marking Machine
Description
Veshay PCB Laser Marking Machines

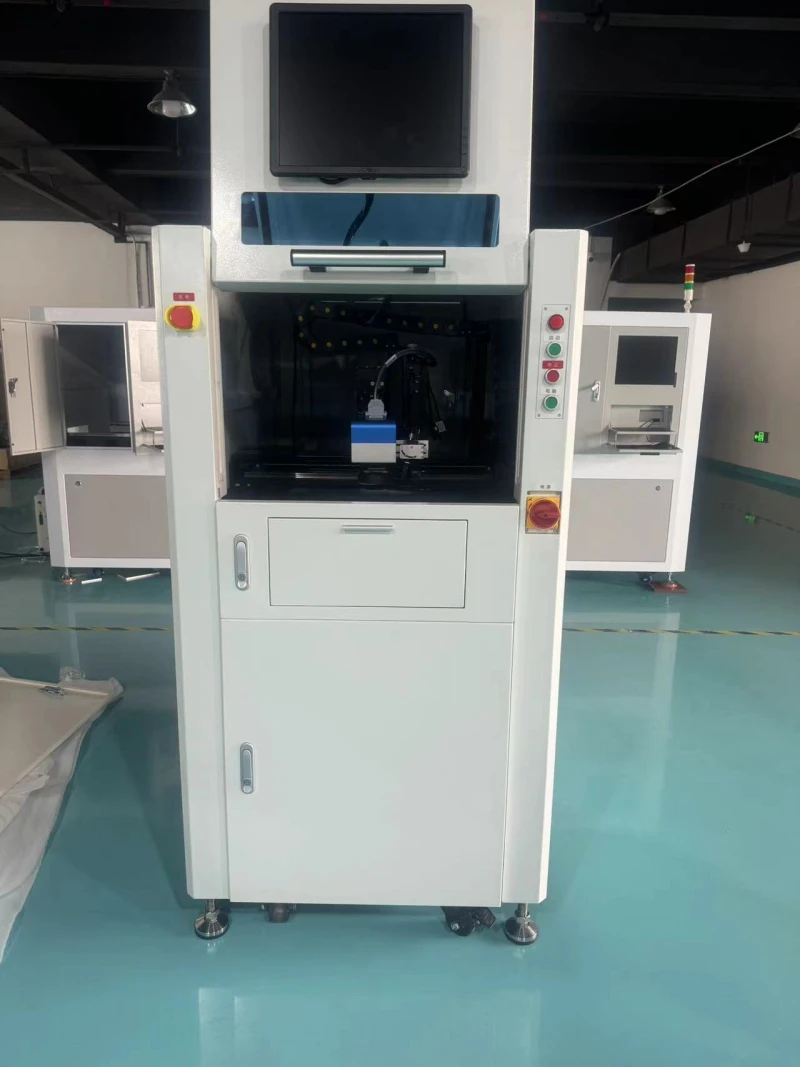

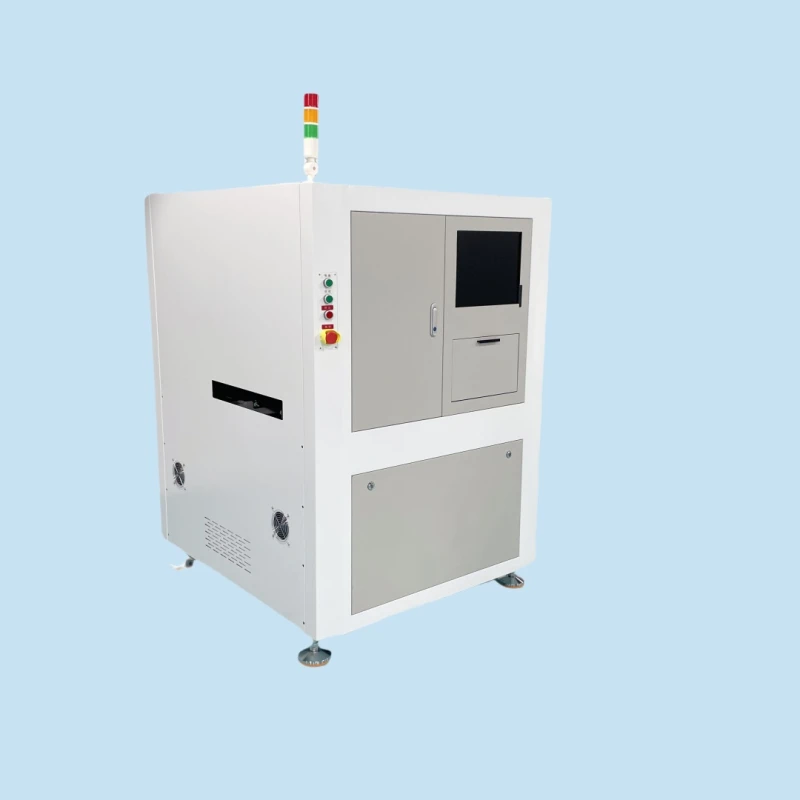

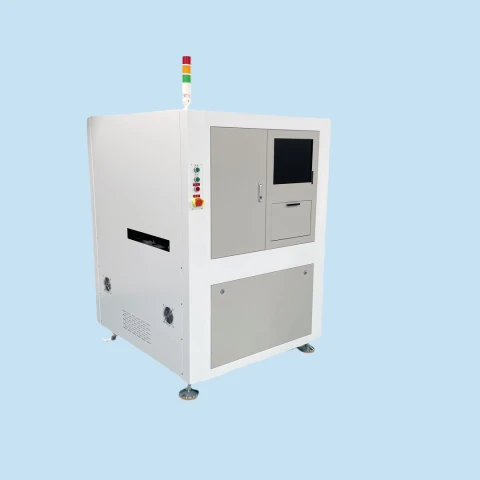

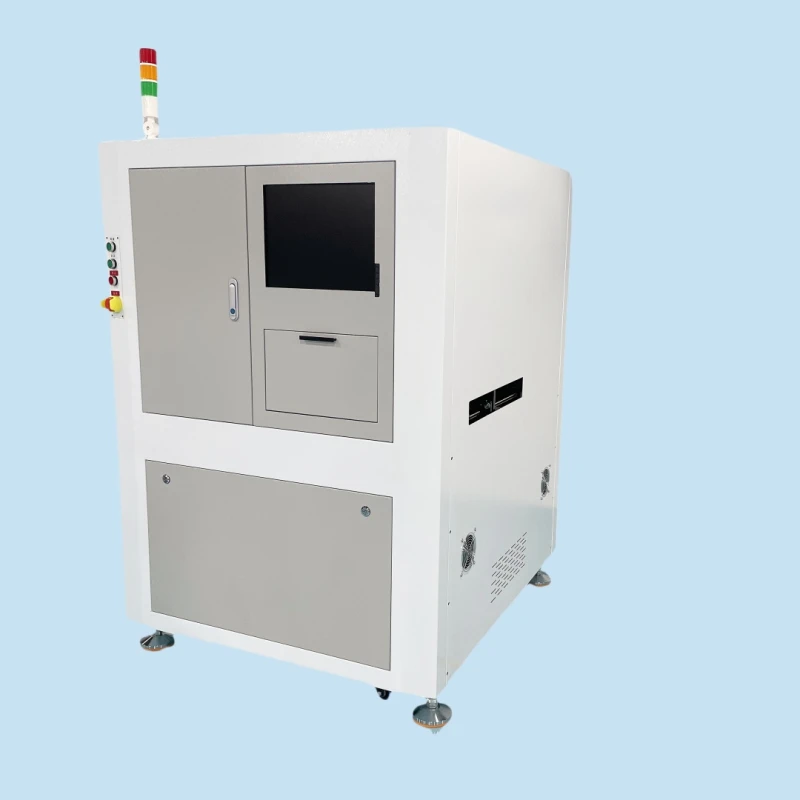

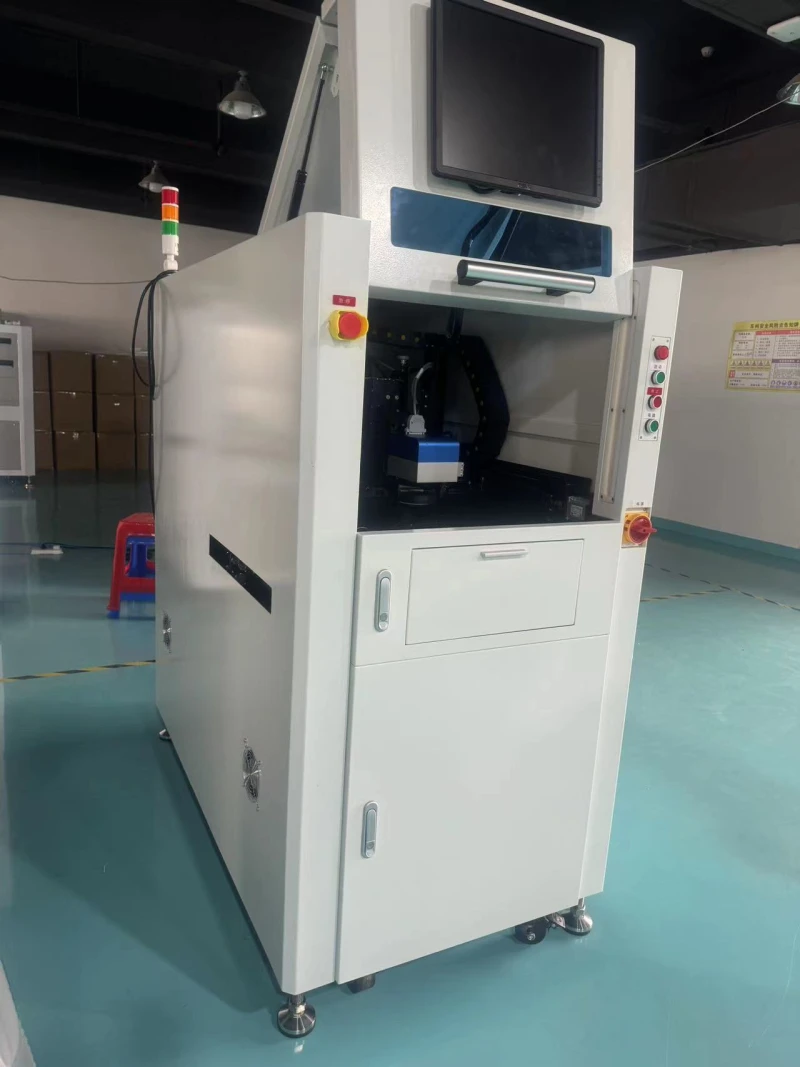

There are two different appearances of our PCB Laser Marking Machines- Old stlyle and new designed appearance, while software, function and inner structures keep the same. Multi-Track,Multi-Heads and Flipping Function can be customized.
Standing out from numerous brands, such as HGLASER LCD LCB Series,R-TEK S6,M6,R6 Series, Hans Laser HDZ-PCB100F,HDZ-FPC4530D,etc., Veshay Full-automatic PCB Laser Marking Machine is mainly used for marking QR code, barcode, characters, different patterns on PCB with various kinds of ink, such as white, green, or black oil, and even on copper surface accurately.
It can acquire the data from MES automatically, such as batch number, date, and generate QR code; by lasering it on PCB so to control the product.
Compared with the traditional spray printing, PCB laser marking machine is more precision, no pollution, easy maintenance and without extra cost, it is applied widely in PCB industry
Veshay VIPin-4045AT PCB Laser Marking Machine
Specifications |
|
|---|---|
| Work Area X: | 0-500 mm |
| Work Area Y: | 0-500 mm |
| Beam Delivery: | Galvo |
| Laser Source: | CO2, Fiber, Other / Not specified |
| Laser Output Power: | 5,10 W |
| Laser Wavelength: | 355 nm (UV), 532 nm (green), Other (not specified) |
| Marking Speed: | 0-3000 mm/sec |
| Voltage Requirement: | 220V - 50Hz, Other / Not Specified |
| Materials: | Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Brass, Copper, Platinum, Glass, Acrylic, Ceramic |
| Air Assist: | Included |
| Fume Extraction Unit: | Included |
| Safety Enclosure: | Included |
| Minimum Point Diameter: | 0.13mm |
| Engraving Angle: | 0-360° |
| Repeat Accuracy: | ±0.02mm |
| QR Code Size (minimun): | 1.5mm×1.5mm |
| Marking Content: | QR Code/Micro QR Code/IQR Code/Data Matrix/GS1 Data/Matrix/PDF417CODE39/CODE128/ITF/NW7/JAN(EAN)/UPC/English Uppercase /English lowercase /Figure/Katakana /Chinese Chatacters |
| Circuit Board Size Range: | 50mm×50mm-450mm×450mm |
| Board Thickness Range: | 0.5-7mm |
Features
Veshay PCB Laser Marking Machines Features:
Laser Head: Imported laser with high stability and long life
Intelligent System: Support MES development.
High-Precision Positioning System: ±0.02mm repeated positioning
Purification System (optional): Automated high-performance purification
Intelligent Camera System: Intelligent CCD visual positioning.
Control System: Developed based on a high-precision Vision Marking system from Vipin company.
Applications
Application Fields
It is used for marking barcode, QR code, text, number and other information on PCB as well as reinforcing steel sheets and shielding cover products. It can also read and verify codes after completion.
