Description
Drive the future of silicon processing! Combining the unique capabilities of ultrafast Thulium lasers within a modular design, the activeTwo redefines efficiency, versatility and serviceability while offering unique specifications at 2 µm central wavelength. This laser is made to be seamlessly integrated into your processes, harnessing cutting-edge technology to allow for the highest productivity at reliable quality.

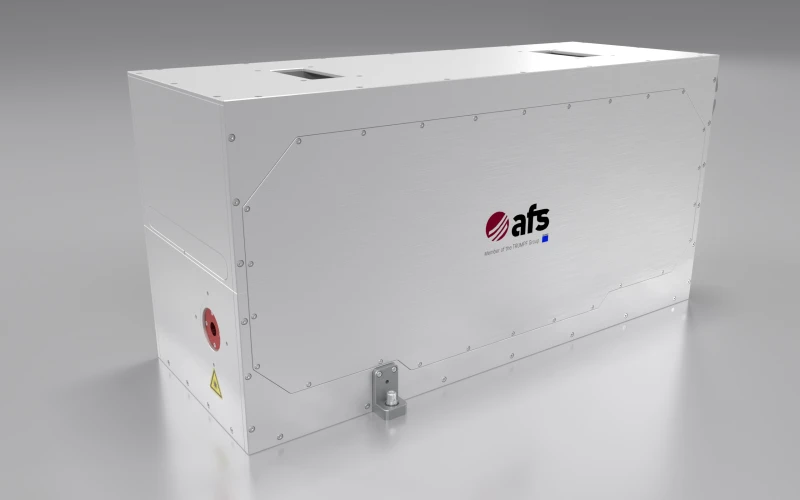

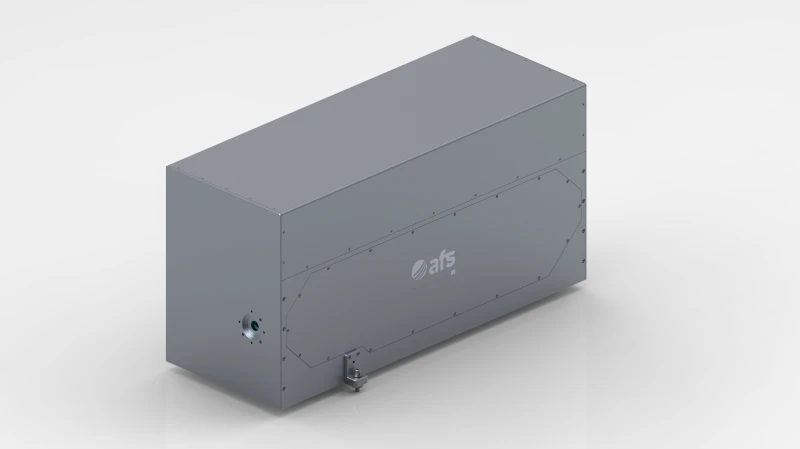

activeTwo-15 Ultrafast Fiber Laser
Specifications
| Wavelength: | 1980 nm |
|---|---|
| Repetition Rate: | 25 MHz |
| Output Power: | 15 W |
| Pulse Duration: | 400 fs |
| Average Power: | up to 15 W |
| Central Wavelength: | approx. 1980 nm |
| Repetition Rate: | single shot to 25 MHz |
| Pulse Energy: | up to 100 µJ |
| Pulse Duration: | <400 fs - 5 ps adjustable, or up to 1.5 ns |
| Polarization: | linear |
| Beam Quality: | close to diffraction-limited, M² <1.3 |
| RIN Slow (average Power): | <1% RMS |
| RIN Fast (pulse Energy): | <2% RMS |
| Beam Pointing: | <10 µrad RMS |
| Dimensions & Mass: | 800 mm x 300 mm x 400 mm, <100 kg |
Download Data Sheet
Features
The following specs show only our exemplary main-platforms. We happily customize a system exactly to your needs.
- Central wavelength : appx 1980nm
- Repetition rate : single shot to 25 MHz
- Pulse energy : up to 100 µJ (at up to 150 kHz)
- Average power : up to 15 W
- Pulse duration : <400 fs – 5 ps adjustable, or up to 1.5 ns
- Polarization : linear
- Beam quality : close to diffraction-limited, M² < 1.3
- RIN slow (Average power) : <1% RMS [1/ (24 hours – 1 Hz]
- RIN fast (Pulse energy) : <2% RMS [1 Hz – frep/2]
- Beam pointing : <10 µrad RMS
- Dimensions & weight : 800 mm × 300 mm × 400 mm, <100 kg
- Logging : Logging of all operation parameters via control software, remote monitoring and service access
- Additional features : Turnkey reliability, software-controlled parameters, optical isolation, shutter, RTC6 interface, software-API
Applications
- Materials processing
- Silicon Processing
Frequently Asked Questions
What is the central wavelength of the activeTwo-15?
The central wavelength of the activeTwo-15 is approximately 1980nm
What is the average power of the activeTwo-15?
The activeTwo-15 can achieve an average power of up to
15 W.
Can the pulse duration of the activeTwo-15 be adjusted?
Yes, the pulse duration of the activeTwo-15 can be adjusted from
What is the beam quality of the activeTwo-15?
The activeTwo-15 has a beam quality that is close to diffraction-limited, with an M² value of less than 1.3.
What are some of the applications of the activeTwo-15?
activeTwo-15 is extensively used for Sillicon processing and finds extensive usage in the material processing industry.
