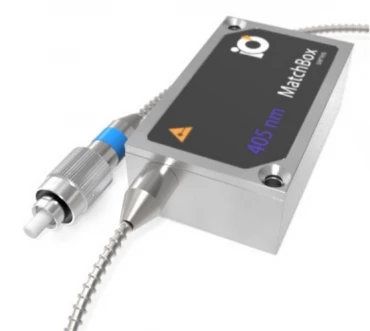

0405L-11A-NI-NT-NF: Laser Diode Module, 405nm, 180mW, Free Space
Description
The 405L-1XA is a 405 nm low noise diode laser from Integrated Optics. The IO Matchbox series includes single mode laser diode modules offering excellent performance and reliability in an ultra-compact “all-in-one” driver integrated laser head.
The 405L-1XA comes standard with internal voltage up-conversion that allows using a 5V power supply while maintaining low noise operation. The monolithic design of the Matchbox Series laser diode modules includes thermally stabilized optics in a hermetically sealed housing ensuring reliable and maintenance-free operation.
All the Matchbox series modules include a 12-month warranty and are RoHS compliant. The 405L-11A is the free space version, other versions are available depending on the variable X in Part number. Here are the free space and fiber coupled output types available for the 405L-1XA: (“X” defines the output type of the module).
0405L-11A-NI-NT-NF: Laser Diode Module, 405nm, 180mW, Free Space
Specifications |
|
|---|---|
| Center Wavelength: | 0.405 um |
| Output Power: | 180 mW |
Features
- Compact size
- Self-contained unit with all power electronics inside
- Digitally controlled via I2C bus protocol
- Arduino compatible
- OEM dedicated design
- Variety of accessories
Applications
- Laser Diffraction Particle Analysis
- Confocal Microscopy
- Food Sorting
- Flow Cytometry
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The applications of the 0405L-11A-NI-NT-NF laser diode module include laser diffraction, particle analysis, confocal microscopy, food sorting, and flow cytometry.
The control interface type of the 0405L-11A-NI-NT-NF laser diode module is UART/USB.
The output power of the 0405L-11A-NI-NT-NF laser diode module is 180mW.
The wavelength of the 0405L-11A-NI-NT-NF laser diode module is 405nm.
All the Matchbox series modules include a 12-month warranty.
