The absolute maximum ratings for the QLD1061 laser include optical output power (CW) of 50 mW, LD forward current (CW) of 250 mA, peak output power (Pulse 10 ns / 1 MHz) of 150 mW, LD peak current (Pulse 10 ns / 1 MHz) of 600 mA, LD reverse voltage of 2 V, TEC drive current of 2 A, TEC drive voltage of 4.3 V, operation temperature of 0 to 60 C, and storage temperature of -40 to 85 C.

The features of the QLD1061 laser include single longitudinal mode operation at 1064 nm, fiber-pigtailed 14-pin butterfly package with a TEC, optical isolator integration, and polarization maintaining fiber integration, and CW/Pulse operation.

The optical and electrical characteristics of the QLD1061 laser include peak wavelength p CW, P f =30 mW of 1059 * 1064 1069* nm, temperature coefficient of p dp/dT CW of - 0.08 - nm/K, current coefficient of p dp/dI CW of - 0.008 - nm/mA, threshold current Ith CW of 15 20 mA, CW fiber output power Pf CW of 30 - - mW, pulsed peak output power Pf_peak 5 ns / 100 kHz of 100 mW, operation current Iop CW, P f =30 mW of 110 160 mA, operation voltage Vop CW, P f =30 mW of 1.5 1.8 V, pulsed peak operation current Iop_peak Pf_peak =100 mW of 320 - mA, pulse width tpw pulsed of 0.05** - 100 ns, duty cycle D.C. pulsed of - - 2 %, sidemode suppression ratio SMS R CW, P f =30 mW of 30 50 - dB, pulse d 4 ns / 1 MHz / Pf_peak =50 mW of 30 40 - dB, polarization extinction ratio PER CW, P f =30 mW of 15 20 - dB, monitor PD current Im CW, P f =30 mW of 50 200 800 A, and thermistor resistance Rth TLD = 25°C, B=3900 K of 9.5 10 10.5 k.

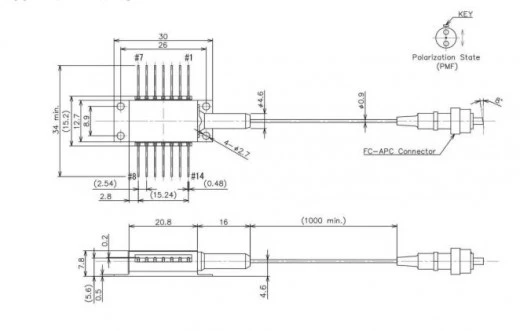

The pin configuration of the QLD1061 laser includes 14 pins for the butterfly package with an optical isolator, a monitor PD, and a thermo-electric cooler.

The QLD1061 is a 1064-nm distributed feedback (DFB) laser for use in seeder for fiber lasers and sensing applications.
