High-Power Red Diode Lasers Emitting at 680nm with Customizable Options
Description

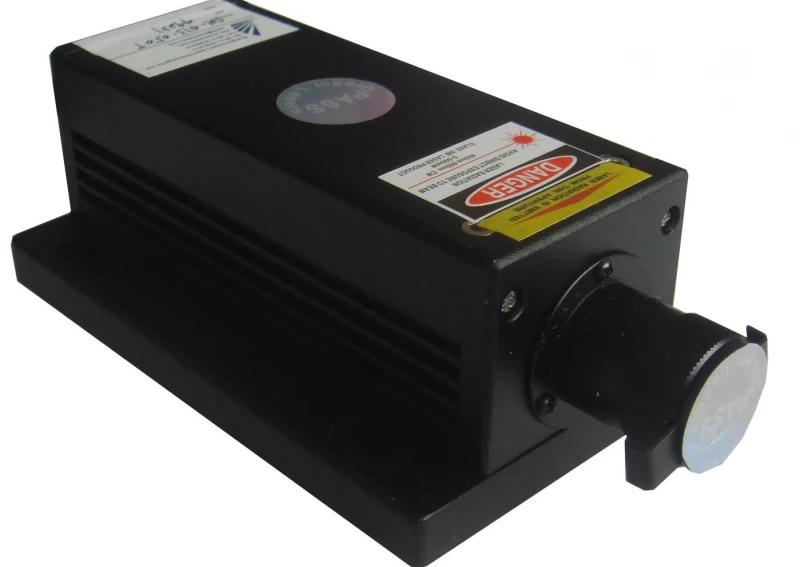

The SDL-680-LM-XXXT is a high-performance red diode laser emitting at 680nm with an output power of 1-1000mW. It features TTL modulation and customizable options such as power stability, analog modulation, line output versions, and detachable fiber-coupled systems. The SDL-680-LM-XXXMFL is a fiber-coupled version of the same laser, with an output power of 1-800mW and multiple fiber connector options. Both lasers have a long lifetime of up to 10,000 hours and come with a 1-year warranty. They are suitable for a variety of applications in industrial, medical, scientific, defense, and entertainment fields.
High-Power Red Diode Lasers Emitting at 680nm with Customizable Options
Specifications |
|
|---|---|
| Center Wavelength: | 680 um |
| Output Power: | 1000 mW |
| LD Mode: | Multi Mode |
| Operation Mode: | CW |
| Power Stability Over 2 Hours After Warm-up: | < 5 % |
| Beam Divergence (1/e2, Full Angle): | < 3 mrad |
| Beam Diameter At The Aperture: | ~5x8 mm |
| Beam Spot Outline: | Near rectangle |
| Warm-up Time: | < 5 min |
| Pointing Stability After Warm-up: | < 0.05 mrad |
| Operating Temperature: | 10 - 35 °C |
| Modulation: | TTL Modulation >5kHz |
| Expect Life Time: | 10,000 hours |
| Warranty Time: | 1 year |
Features
- 4 or 8 hours Longer operation period output power stability are available on request.
- Better (<3%,<1%) power stability are available on request.

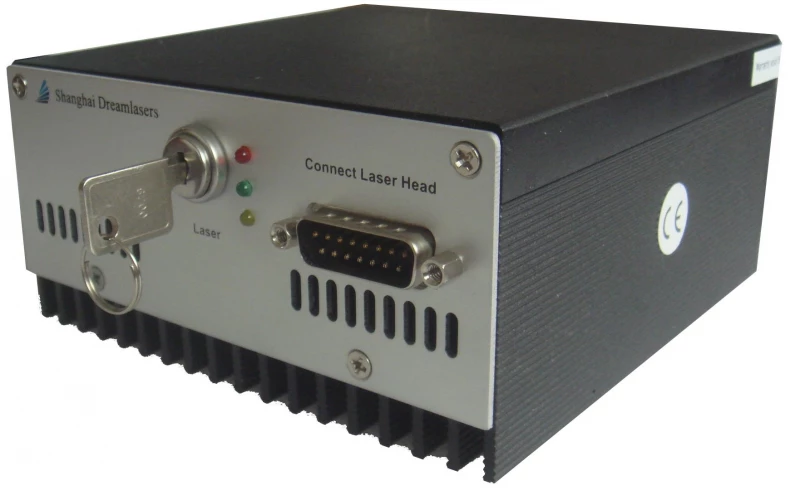

- Other version power supply are available on request as follows: 1. Current display, power adjustable function version: SDL-PS-400: 200x225x82mm and 2. OEM DC input version.
- Analog Modulation >2KHz or higher as option.
- Up to 30Khz TTL modulation on request.
- Line output version are available on request.
- Detachable fiber coupled system is available on request.
- After fiber collimator is available on request.
- Longer warranty on request.
- Other custom-made design is available, please contact us for details.
Applications
- Industrial manufacturing: laser alignment, spectroscopy, and sensing
- Medical: photodynamic therapy, diagnostics, and imaging
- Scientific research: fluorescence, optogenetics, and microscopy
- Defense and security: target designation, LIDAR, and optical communications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2023
Frequently Asked Questions
The SDL-680-LM-XXXT laser has an output power range of 1-1000mW.
The SDL-680-LM-XXXT laser offers customizable options such as power stability, analog modulation, line output versions, and detachable fiber-coupled systems.
The SDL-680-LM-XXXT laser has a long lifetime of up to 10,000 hours.
The SDL-680-LM-XXXT laser is suitable for a variety of applications in industrial, medical, scientific, defense, and entertainment fields.
The SDL-680-LM-XXXT laser comes with a 1-year warranty.
