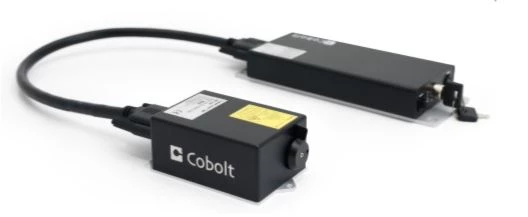

Cobolt 04-01 Fandango™ CW diode pumped laser
Description
The Cobolt 04-01 Series lasers are continuous-wave diode-pumped laser (DPL) devices operating at a fixed wavelength between 457 nm and 1064 nm. The lasers are built using proprietary HTCure™ manufacturing technology for ultra-robustness in a compact hermetically sealed package which has been shown to withstand 60G mechanical shocks in operation as well as extreme storage temperature shocks (-30 to >100 degC) without any sign of degraded performance.
The lasers emit a very high quality laser beam with stable characteristics over a wide range of operating conditions. Single frequency operation provides a narrow spectral bandwidth and long coherence length. The lasers are designed and manufactured to ensure a high level of reliability.
Cobolt 04-01 Fandango™ CW diode pumped laser
Specifications |
|
|---|---|
| Center Wavelength: | 0.5144 um |
| Output Power: | 25 mW |
Features
- CW power up to 400 mW in a perfect beam
- Ultra-robust, hermetically sealed packages
- True fiber pigtailed option
- Low noise, <0.25 % rms
- 457 nm, 473 nm, 491 nm, 515 nm, 532 nm, 561 nm, 594 nm, 660 nm, and 1064 nm
- 24 months warranty, unlimited hours
Applications
The Cobolt 04-01 Series lasers are intended for stand-alone use in laboratory environments or for integration as an OEM component in instruments for applications including fluorescence microscopy, flow cytometry, DNA sequencing, HCA, Raman spectroscopy, interferometry, holography and particle analysis.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Sweden
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The Cobolt 04-01 Fandango™ CW diode pumped laser is a continuous-wave diode-pumped laser device operating at a fixed wavelength between 457 nm and 1064 nm.
The features of the Cobolt 04-01 Fandango™ CW diode pumped laser include CW power up to 400 mW in a perfect beam, ultra-robust, hermetically sealed packages, true fiber pigtailed option, low noise (<0.25% rms), and 457 nm, 473 nm, 491 nm, 515 nm, 532 nm, 561 nm, 594 nm, 660 nm, and 1064 nm.
The Cobolt 04-01 Fandango™ CW diode pumped laser is intended for stand-alone use in laboratory environments or for integration as an OEM component in instruments for applications including fluorescence microscopy, flow cytometry, DNA sequencing, HCA, Raman spectroscopy, interferometry, holography, and particle analysis.
The Cobolt 04-01 Fandango™ CW diode pumped laser comes with a 24 months warranty with unlimited hours.
The Cobolt 04-01 Fandango™ CW diode pumped laser has a spectral purity of >60dB, single longitudinal mode (SLM), spectral linewidth <1 MHz, and scanning Fabry-Perot FSR = 10 GHz.
