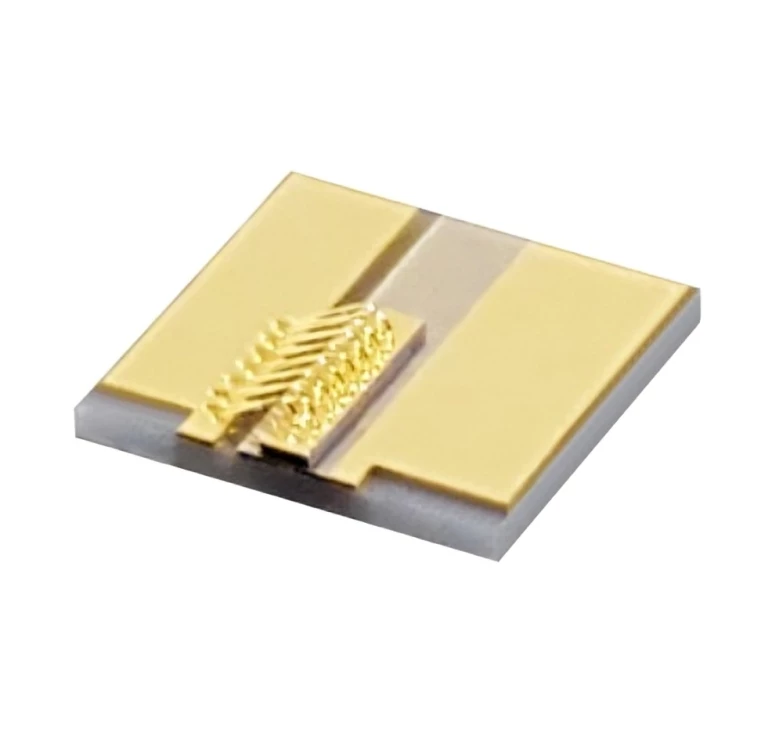

COC 2.5mm PRELIMINARY High Power Multimode Laser Diode
Description
Experience cutting-edge technology with the SemiNex SMX19XX Laser Diode, engineered to deliver unparalleled performance in the infrared spectrum. With a meticulously crafted design optimized for wavelengths ranging between 12xx and 19xx nm, this laser diode stands at the forefront of innovation.
Boasting a power output of 1.10 watts (±10%) in continuous wave operation, it offers exceptional efficiency, ensuring optimal utilization of energy resources. The chip cavity length of 1500 μm and a spectral width of 10 nm 3dB further enhance its precision and reliability. Featuring a standard package design, this laser diode is a cost-effective solution without compromising on quality or performance. It finds versatile applications across various industries, including OEM medical devices, telecommunications, LiDAR technology, and military/aerospace systems.
Whether you're seeking high-power laser solutions for medical diagnostics, telecommunications networks, or advanced sensing applications, the SemiNex SMX19XX Laser Diode sets the standard for excellence, delivering consistent and reliable performance in a compact and efficient package.
COC 2.5mm PRELIMINARY High Power Multimode Laser Diode
Specifications |
|
|---|---|
| Center Wavelength: | 1.940 um |
| Output Power: | 1100 mW |
| Chip Cavity Length (CL): | 1500 μm |
| Emitter Width (W): | 150 μm |
| Emitter Height (H): | 1 μm |
| Spectral Width (δλ): | 10 nm 3dB |
| Slope Efficiency (η°): | 0.24 W/A |
| Fast Axis Div.ergence FWHM: | 44 deg |
| Slow Axis Div. Div.ergence FWHM: | 11 deg |
| Power Conversion Eff.: | 22 % |
| Threshold Current: | 0.35 A |
| Operating Current: | |
| Operating Current: | 4.5 A |
| Operating Voltage: | 1 V |
| Weight: | |
| Operating Temperature: | 15-30 °C |
| Storage Temperature: | -20 to +60 °C |
Features
- Cost-effective solution
- High output power
- High efficiency
- Standard package design
Applications
- OEM Medical devices
- Telecom/OTDR systems
- DPSS pump sources
- LiDAR technology
- Military/aerospace applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The SMX19XX Laser Diode operates in the infrared spectrum, specifically between 12xx and 19xx nm.
The power output of the SMX19XX Laser Diode in continuous wave operation is 1.10 watts (±10%).
The SMX19XX Laser Diode is known for its cost-effectiveness, high output power, high efficiency, and standard package design.
The SMX19XX Laser Diode finds applications in OEM medical devices, telecommunications (OTDR), DPSS pump sources, LiDAR systems, and military/aerospace applications.
The SMX19XX Laser Diode operates at temperatures between 15 to 30°C, with specified values rated at a constant heat sink temperature of 20°C. Other specifications include threshold current, operating current, operating voltage, and mechanical dimensions.
