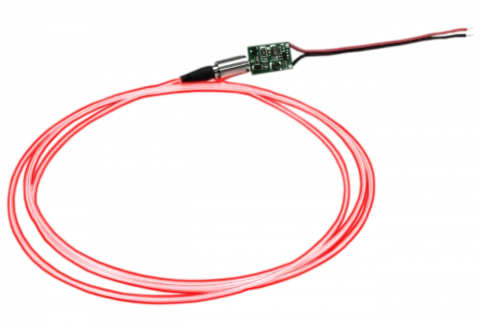

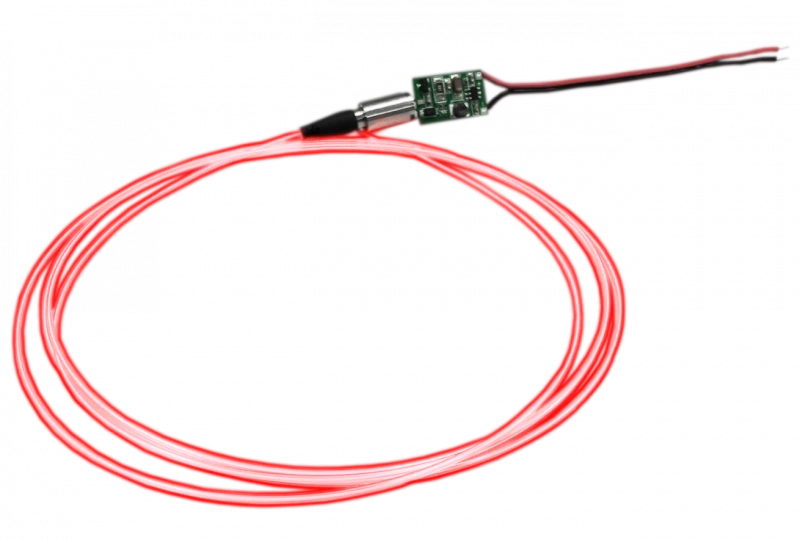

M6.5 | EEL Laser Module (637nm | 12mW)-AZ63120001
Description
The EEL M6.5 is a premier 650nm diode laser module known for its unmatched optical quality and clarity. Designed for precision, this module guarantees high stability and delivers a consistently robust optical output power, making it a leader in the 650nm category. One of its standout features is its remarkable shock resistance coefficient, ensuring it remains unfazed by external disruptions.
With a Mean Time To Failure (MTTF) that exceeds 20,000 hours, this 650nm diode laser module promises both durability and extended operational life. Its compact and lightweight design not only ensures easy integration but also underlines its advanced engineering. The meticulous design also ensures minimal optical axis deviation, which, in turn, results in heightened measurement accuracy for users.
The universally recognized M6.5 dimension is especially tailored for businesses keen on leveraging the benefits of a standard 650nm diode laser module size. Perfect for initial product development stages, the EEL M6.5 accelerates the production process, ensuring your product achieves market readiness swiftly.
M6.5 | EEL Laser Module (637nm | 12mW)-AZ63120001
Specifications |
|
|---|---|
| Center Wavelength: | 0.637 um |
| Output Power: | 12 mW |
| CW Optical Power: | 12 mW |
| Operating Current: | 44 mA |
| Operating Voltage: | 2.2 V |
| Wavelength At Peak Emission: | 637 nm |
| Operating Temp. Range: | -10 to 50 °C |
Features
- Common public version, saving development costs
- High stability
- High seismic coefficient
Applications
- Sensing Devices: Perfect for sensors of various kinds.
- Robotics: Appropriate for use in sweeper robots.
- Scanning: Ideal for barcode scanning applications.
- Mapping: Suitable for SLAM (Simultaneous Localization and Mapping).
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Taiwan
-
Sold by:
-
On FindLight:
since 2023
Frequently Asked Questions
It offers exceptional optical performance, high stability, and stable optical output.
The Mean Time To Failure (MTTF) is greater than 20,000 hours.
It is mainly used in sensors, sweeper robots, barcode scanning, and SLAM.
M6.5 being a common standard size accelerates the product development and production process, reducing lead times.
Yes, safety goggles are essential when observing or working directly with the laser to avoid potential eye damage.
The typical emission wavelength is 650nm, with a range from 640nm to 660nm.
The die-pad temperature should remain below 160°C. The iron temperature should be kept below 180°C and should only be applied for a maximum of 3 seconds.
The laser diode is sensitive to ESD and surges. It's imperative to ground the device, wear anti-static clothing, use recommended power supplies, and follow other precautions to ensure its safety.
The lens is crafted from plastic.
