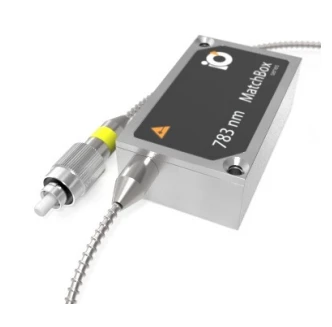

0783L-23A-NI-AT-NF: SLM Laser Diode Module, 783nm, 70mW, Single Mode Fiber w/ FC/APC connector
Description
The 783L-2XA CW version is a 783nm low noise, narrow linewidth diode laser with up to 110mW output power. This NIR laser module comes standard with internal voltage up-conversion, allowing a 5V power supply while maintaining a narrow linewidth and low noise operation. The monolithic design of these laser diode modules features thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules have a 12-month warranty and are RoHS compliant.
These continuous wavelength laser modules have many configurations and provide elite performance in a compact package. They are available with either free-space or fiber-coupled output and options for break-out boxes, heatsinks, shutters, and power supplies. The key advantages for these modules include providing top-quality power electronics in the same housing while obtaining excellent output power and performance/price ratio.
These modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more.
0783L-23A-NI-AT-NF: SLM Laser Diode Module, 783nm, 70mW, Single Mode Fiber w/ FC/APC connector
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW), Modulated |
| Fiber Type: | Single Mode |
| Wavelength: | 783 nm |
| Output Power: | 70 mW |
| Fiber Core Diamater: | -- um |
| Fiber Cladding Diameter: | -- um |
Features
- Fiber coupling options
- Ultra-compact All-in-One design
- Thermally stabilized optics
- Monolithic design
- Hermetically sealed
- Automatic power control
- 5V supply voltage (voltage is upconverted internally to make it suitable for various laser diodes)
- Warranty: 12 months
- RoHS compliance
Applications
- Raman Spectroscopy
- Interferometry
- Gas Sensing
- Quantum Cryptography
- Holography
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The output power of the 0783L-23A-NI-AT-NF laser diode module is 70mW.
The warranty period for the Matchbox series modules is 12 months.
The applications of the 783 nm SLM laser include Raman Spectroscopy, Interferometry, Gas Sensing, Quantum Cryptography, and Holography.
The minimum value of the power stability of the 783 nm SLM laser is not specified, the typical value is 1%, and the maximum value is 2%.
The control interface type of the 783L-2XA CW version laser module is UART/USB.
