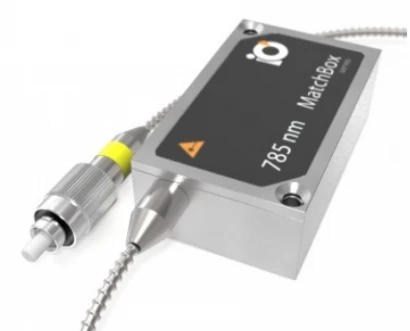

0785L-13A-NI-AT-NF: Laser Diode Module, 785nm, 120mW, Single Mode Fiber w/ FC/APC connector
Description
The 785L-1XA CW version is a 785nm low noise diode laser with up to 170mW output power. This NIR laser module comes standard with internal voltage up-conversion that allows a 5V power supply while maintaining low noise operation. The monolithic design of these laser diode modules features thermally stabilized optics in a hermetically sealed housing, ensuring reliable and maintenance-free operation. All the Matchbox series modules have a 12-month warranty and are RoHS compliant.
These continuous wavelength laser modules have many configurations and provide elite performance in a compact package. The output options for this collection of laser modules include free-space, fiber-coupled, or an SMA port. Other options include a break-out box, heatsinks, shutters, and power supplies. The key advantages for these modules include providing top-quality power electronics in the same housing while obtaining excellent output power and performance/price ratio.
These modules offer excellent beam quality and accuracy, user-friendly software with multiple parameter monitoring, low power consumption, high cooling capacity, rugged housing, and more.
0785L-13A-NI-AT-NF: Laser Diode Module, 785nm, 120mW, Single Mode Fiber w/ FC/APC connector
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW), Modulated |
| Fiber Type: | Single Mode |
| Wavelength: | 785 nm |
| Output Power: | 120 mW |
| Fiber Core Diamater: | -- um |
| Fiber Cladding Diameter: | -- um |
Features
- Fiber coupling options
- Ultra-compact All-in-One design
- Thermally stabilized optics
- Monolithic design
- Hermetically sealed
- Automatic power control
- 5V supply voltage (voltage is upconverted internally to make it suitable for various laser diodes)
- Warranty: 12 months
- RoHS compliance
Applications
- Laser Diffraction Particle Analysis
- Confocal Microscopy
- Food Sorting
- Flow Cytometry
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The laser diode module has a wavelength of 785nm.
The laser diode module has an output power of 120mW.
The fiber coupling option comes with an FC/APC connector.
The Matchbox series modules have a 12-month warranty.
The 785 nm laser module is used in laser diffraction particle analysis, confocal microscopy, food sorting, and flow cytometry.
