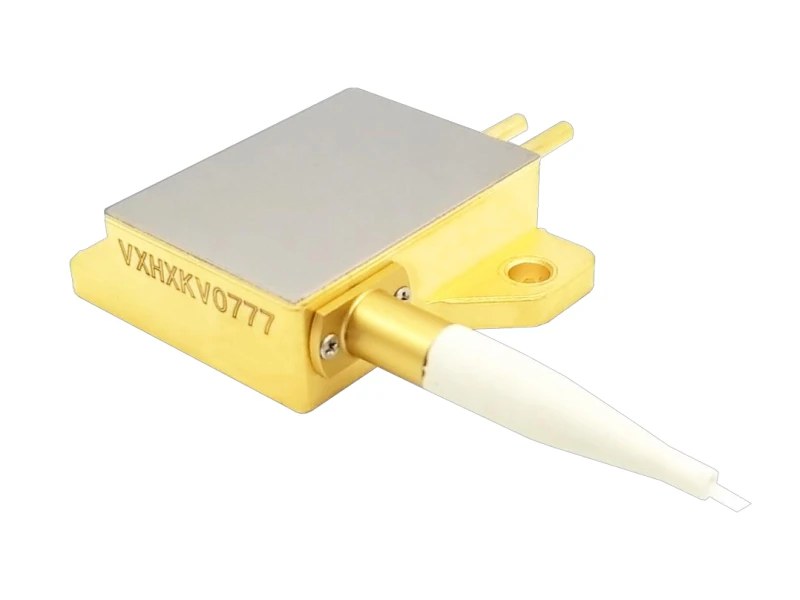

10W 915nm 105μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 10W 915nm 105μm Fiber Coupled Power Diode Laser is designed to deliver high performance and precision for various optical applications. With a center wavelength of 915nm, it offers excellent output power stability and efficiency, making it ideal for industries such as medical diagnostics, material processing, and optical communications. Its 105μm core diameter ensures minimal signal loss, while the numerical aperture (NA) of 0.22 focuses the beam for enhanced precision.
The fiber pigtail length of 1.2 meters makes integration into existing systems seamless. Operating efficiently with a typical current of 1.8A and voltage of 1.0V, this diode laser also boasts impressive conversion efficiency, maximizing power utilization.
Designed with versatility in mind, the 10W diode laser is well-suited for a range of high-demand applications requiring reliable performance and long-term stability. Whether it’s for research and development, laser pumping, or industrial-grade applications, the GKER Photonics 10W 915nm Fiber Coupled Power Diode Laser ensures optimal results with low power consumption and robust fiber design.
10W 915nm 105μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 10000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 10 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.13 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.0 Typ:1.2 m |
| Operating Current: | 13 A |
| Operating Voltage: | 1.8 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 10W of optical power for various demanding applications
- Precise Wavelength Control: Operates at a center wavelength of 915nm for accurate wavelength performance
- 105μm Core Diameter: Ensures efficient light transmission with minimal loss
- Focused Beam Output: Features a numerical aperture (NA) of 0.22 for enhanced precision in applications
- Energy-Efficient: Low operating current of 1.8A and voltage of 1.0V ensure optimized power usage
- Durable Fiber Design: 1.2-meter pigtail length provides easy integration and enhanced durability
Applications
- Optical Communications: Supports data transmission and high-speed communications systems
- Material Processing: Suitable for precision cutting, welding, and marking applications
- Medical Diagnostics: Offers accuracy and reliability for advanced medical laser systems
- Research & Development: Ideal for experimental setups in photonics and laser technologies
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 10W.
The center wavelength is 915nm, with a range from 900nm to 930nm.
The fiber core diameter is 105μm.
The numerical aperture (NA) is 0.22.
The typical operating current is 1.8A.
The pigtail fiber length is 1.2 meters.
The typical operating voltage is 1.0V, and the conversion efficiency is up to 48%.
The laser is ideal for optical communications, material processing, medical diagnostics, and research.
Yes, with its 1.2-meter pigtail fiber, it is designed for easy integration.
The numerical aperture ranges from 0.20 to 0.24.
