Description
The GKER Photonics 110W 915nm 105μm Fiber Coupled Power Diode Laser (GK-915V110105) is designed for precision and high-performance applications, including fiber laser pumping, material processing, and medical treatments. It delivers a maximum power output of 110W and operates at a center wavelength of 915nm, making it ideal for a wide range of industrial and scientific uses.
The fiber coupling with a core diameter of 105μm and numerical aperture (NA) of 0.22 ensures efficient light transmission and minimal signal loss. With a narrow spectral width of 2.0nm (FWHM) and 95% power NA of 0.20μm, this diode laser provides focused and consistent performance, even in demanding environments.
The diode laser is engineered for operational reliability with an operating current of up to 18.5A and a voltage of up to 14V. Its high conversion efficiency of 48% ensures energy efficiency and reduced operational costs. The robust design, combined with the precise wavelength range from 900nm to 930nm, guarantees exceptional stability and performance in various applications.

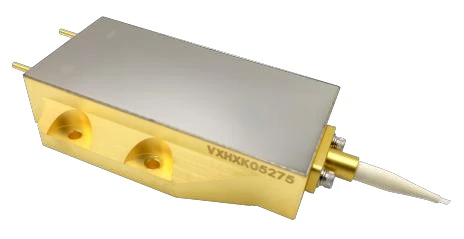

110W 915nm 105μm Fiber Coupled Power Diode Laser
Specifications
| Laser Type: | Continuous Wave (CW) |
|---|---|
| Fiber Type: | Multi-Mode |
| Wavelength: | 915 nm |
| Output Power: | 110000 mW |
| Fiber Core Diamater: | 105 um |
| Fiber Cladding Diameter: | Not Specified |
| Output Power: | 110 W |
| Center Wavelength: | 915 nm |
| 95% Power NA: | 0.18 - |
| Core Diameter: | Min:102 Typ:105 Max:108 μm |
| Numerical Aperture: | Min:0.2 Typ:0.22 Max:0.24 - |
| Pigtail Length: | Min:1.5 Typ:2.0 m |
| Operating Current: | 18.5 A |
| Operating Voltage: | 14.0 V |
| Conversion Efficiency: | 48 % |
Download Data Sheet
Features
- High Power Output: Delivers up to 110W, ideal for power-demanding applications
- Center Wavelength Precision: Operates at 915nm for stable and reliable performance
- Efficient Fiber Coupling: Equipped with a 105μm core diameter for enhanced energy transmission
- Narrow Spectral Width: Maintains a spectral width of 2.0nm (FWHM) for focused laser operation
- High Numerical Aperture: 0.22 NA for superior light transmission and control
- Energy Efficient: Conversion efficiency of up to 48%, reducing power consumption
- Robust Performance: Stable operation with a wavelength range from 900nm to 930nm
Applications
- Fiber Laser Pumping: Suitable for powering high-performance fiber laser systems
- Material Processing: Ideal for precision cutting, welding, and engraving
- Medical Laser Systems: Delivers accurate and reliable laser performance for medical treatments
- Research and Development: Supports experimental applications requiring precise laser output
Frequently Asked Questions
What is the maximum output power of the diode laser?
What is the center wavelength of this laser?
What is the core diameter of the fiber?
What is the numerical aperture of the fiber?
What is the typical spectral width (FWHM)?
What is the operating current range?
What is the maximum operating voltage?
How efficient is this laser in terms of conversion?
What is the wavelength range of the laser? The wavelength range is from 900nm to 930nm, providing wavelength stability for various laser applications.
What is the typical pigtail length?
