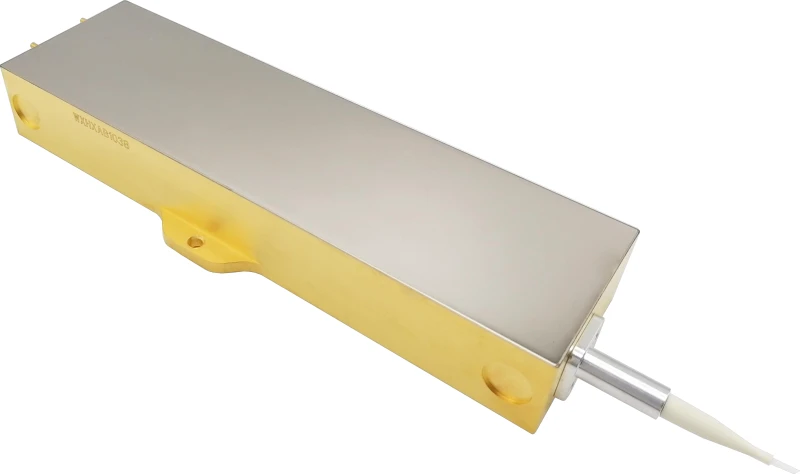

150W 793nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 150W 793nm Fiber Coupled Power Diode Laser is designed for high-performance applications that require precise wavelength control and reliable power output. Offering a center wavelength of 793nm and a maximum output power of 150W, this laser is ideal for demanding industrial, medical, and scientific applications. The laser features a fiber-coupled design with a 200μm core diameter and a numerical aperture (NA) of 0.22, ensuring efficient energy delivery. Its compact pigtail length of 2 meters provides flexibility in system integration, while the robust SMA905 connector ensures secure fiber attachment.
The diode laser's typical spectral width (FWHM) of 5nm ensures precise wavelength targeting, making it suitable for a range of applications from material processing to laser pumping. With a typical conversion efficiency of 31%, this diode laser minimizes power losses, improving overall system efficiency. Operating at a voltage of 48V and a typical current of 10A, the GK-793150200 offers stable performance even in demanding conditions. This diode laser is an excellent choice for customers seeking reliability, precision, and high output power in a compact and efficient package.
150W 793nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 793 nm |
| Output Power: | 150000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 150 W |
| Center Wavelength: | 793 nm |
| Spectral Width(FWHM): | 5 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Operating Current: | 10.0 A |
| Operating Voltage: | 31.0 V |
| Conversion Efficiency: | 48 % |
Features
- High Output Power: Delivers up to 150W of optical power for demanding applications
- Precise Wavelength Control: Center wavelength of 793nm with a typical spectral width of 5nm for accurate targeting
- Efficient Fiber Coupling: 200μm fiber core diameter and NA of 0.22 for efficient energy transmission
- Compact and Flexible Design: 2-meter fiber pigtail for easy integration into various systems
- High Conversion Efficiency: Typical efficiency of 31% for reduced power loss and increased system performance
- Robust Connector: Equipped with SMA905 connector for reliable and secure fiber coupling
Applications
- Laser Pumping: Ideal for pumping solid-state and fiber lasers in high-precision environments
- Material Processing: Suitable for applications such as cutting, welding, and surface treatment
- Medical Applications: Can be used in therapeutic and diagnostic procedures requiring precise wavelength control
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum output power is 150W, making it suitable for high-power applications such as material processing and laser pumping.
The center wavelength is 793nm, providing precise wavelength targeting for a variety of applications.
The fiber core diameter is 200μm, ensuring efficient energy transmission through the fiber.
The numerical aperture (NA) of the fiber is 0.22, allowing for efficient light coupling and beam delivery.
The fiber comes with a 2-meter pigtail, providing flexibility in system integration.
The typical spectral width is 5nm, ensuring accurate wavelength control for precise applications.
The fiber is equipped with an SMA905 connector, ensuring secure and reliable connections.
The operating voltage is 48V, providing stable performance during operation.
The typical conversion efficiency is 31%, minimizing power loss and improving overall system performance.
This laser is ideal for applications such as laser pumping, material processing, and medical procedures that require precise wavelength control.
