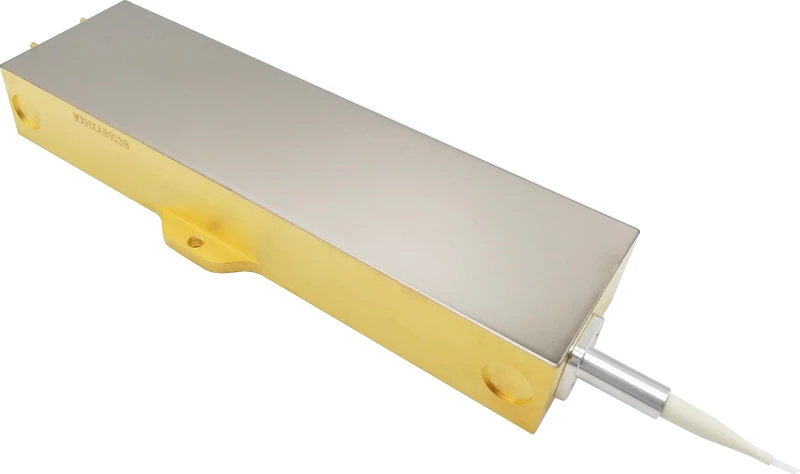

150W 878.6nm 200μm Fiber Coupled Power Diode Laser
Description
The GKER Photonics 150W 878.6nm 200μm Fiber Coupled Power Diode Laser (GK-WS878150200S) is a high-performance laser designed for industrial, medical, and research applications requiring precise power and wavelength stability. Offering a maximum optical output power of 150W and a center wavelength of 878.6nm, this laser delivers excellent beam quality and consistent performance.
With a fiber core diameter of 200μm and a numerical aperture (NA) of 0.22, this diode laser ensures efficient coupling and reliable power delivery. It operates within a spectral width of 1.0nm (FWHM), providing stable and focused beam performance for precision applications such as laser pumping, materials processing, and scientific research.
This model features a stabilized wavelength and high conversion efficiency of 48%, enabling energy-efficient operation. The laser is built with a durable SC/SMA905 connector for easy integration into systems, along with a 2-meter pigtail length for flexible configurations. The wide current operating range of 6A to 12A ensures versatility across different power requirements, making this laser ideal for a broad range of advanced optical systems.
150W 878.6nm 200μm Fiber Coupled Power Diode Laser
Specifications |
|
|---|---|
| Laser Type: | Continuous Wave (CW) |
| Fiber Type: | Multi-Mode |
| Wavelength: | 878.6 nm |
| Output Power: | 150000 mW |
| Fiber Core Diamater: | 200 um |
| Fiber Cladding Diameter: | - um |
| Output Power: | 150 W |
| Center Wavelength: | 878.6 nm |
| Spectral Width(FWHM): | Typ:0.5 Max:1.0 nm |
| 95% Power NA: | 0.17 - |
| Core Diameter: | Min:196 Typ:200 Max:204 μm |
| Numerical Aperture: | Min:0.20 Typ:0.22 Max:0.24 - |
| Pigtail Length: | 2.0 m |
| Connector: | SC/SMA905 - |
| Operating Current: | 12.0 A |
| Operating Voltage: | 28.5 V |
| Conversion Efficiency: | 48 % |
| Wavelength Stabilized Current Range: | Min:6.0 Max:12.0 A |
Features
- High Optical Output Power: Delivers up to 150W of output power for demanding applications
- Stabilized Wavelength: Center wavelength of 878.6nm with a narrow spectral width of 1.0nm
- 200μm Fiber Core: Offers precise power delivery with a high numerical aperture (NA) of 0.22
- High Conversion Efficiency: Achieves a conversion efficiency of 48%, ensuring energy-efficient operation
- Wide Operating Current Range: Operates between 6A and 12A, providing flexibility in power control
- SC/SMA905 Connector: Ensures secure and reliable connections for robust system integration
- Durable and Compact Design: Built for industrial-grade applications with consistent and stable performance
Applications
- Solid-State Laser Pumping: Designed for efficient laser pumping in scientific and industrial environments
- Materials Processing: Suitable for high-precision cutting, welding, and engraving tasks
- Medical Laser Systems: Ideal for use in laser-based medical treatments requiring high precision and power
- Scientific Research: Supports advanced optical research with stable wavelength and power output
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The maximum optical output power is 150W.
The center wavelength is 878.6nm, with a range from 878.1nm to 879.1nm.
The numerical aperture (NA) of the fiber is 0.22.
The fiber pigtail is 2.0 meters long.
It uses an SC/SMA905 connector.
The spectral width is 1.0nm (FWHM).
The power conversion efficiency is 48%.
The laser operates within a current range of 6A to 12A.
Typical applications include solid-state laser pumping, materials processing, medical laser systems, and scientific research.
The core diameter of the fiber is 200μm.
